Key Features:
- Rugged design
- Interchangeable connector adapters
- 300 hours of battery life
- Tone recognition for ½ ber ½ cation
- Universal push-pull interface
- Reference function for direct loss measurements
Applications:
- High power model for CATV and Telco applications
- Enterprise/LAN for singlemode and multimode measurements
Specification:
- Model:EPM-53
- Power meter port:InGaAs
- Power range b (dBm):10 to -60
- Number of calibrated wavelengths:850,1300,1310,1490,1550
- Power uncertainty d:5 %
- Resolution (dB):0.01
- Display units:dB/dBm/W
- Tone detection (Hz):270,1 k,2 k
- Battery life (hours):>300
General Specification:
- Size(HxWxD):189x78x37mm (7 7/16 in x 3 1/16 in x 1 7/16 in)
- Weight:0.4 kg (0.9 lb)
- Temperature operating:-10C to 50C (14F to 122F)
- Storage:-40C to 70C (-40F to 158F)
- Relative humidity:0 % to 95 % non-condensing

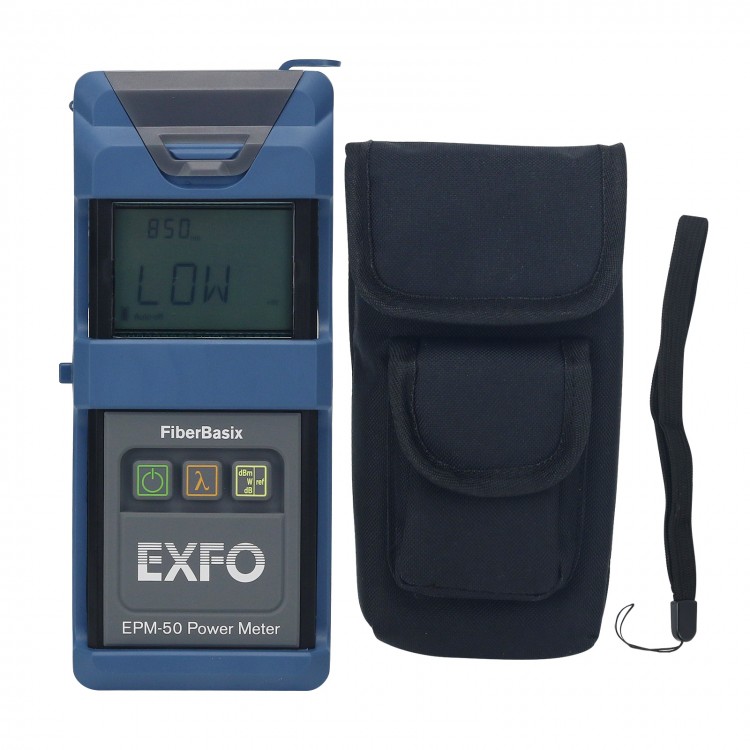

Standard Accessories:
- 1 x Soft pouch
- 1 x PMA-22 FC connector adapter
- 1 x Quick reference sticker
- 1 x Certificate of Calibration

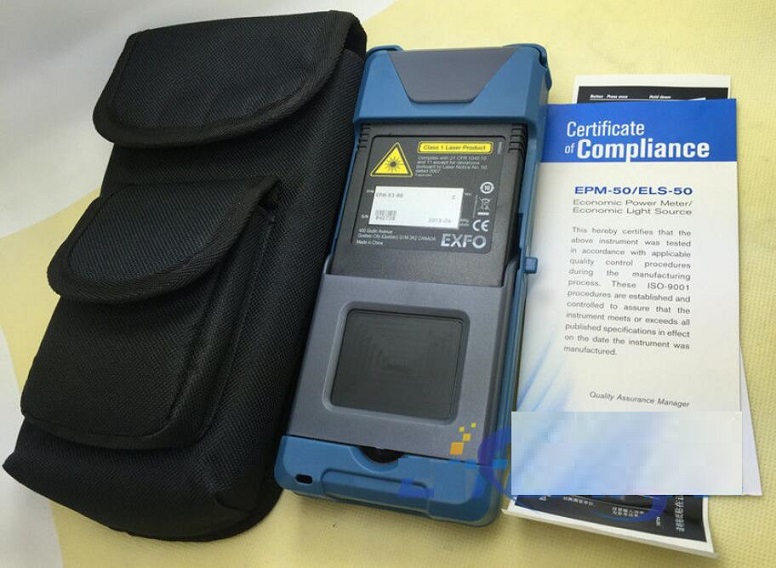

- 1 x Certificate of Compliance
