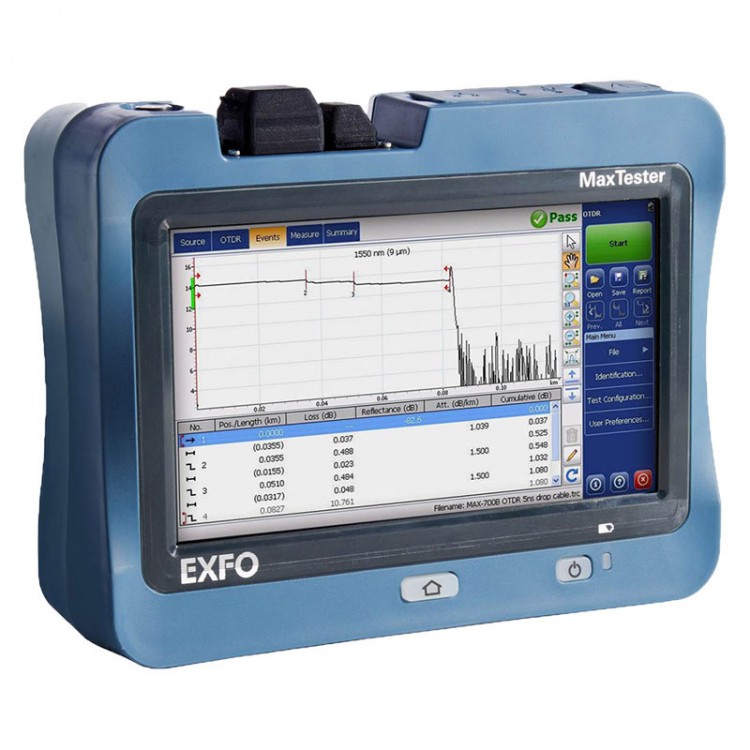

EXFO Max715B Portable OTDR Optical Time Domain Reflectometer with 7-inch Touch Screen for Short Distance Fiber Loss Testing

EXFO Max715B Portable OTDR Optical Time Domain Reflectometer with 7-inch Touch Screen for Short Distance Fiber Loss Testing

Features:
- It is small and lightweight and inspired by tablet PC design, which is easy to carry.
- 7-inch outdoor enhanced touch screen - the largest screen size in handheld testers
- Up to 12 hours of battery life
- Blind zone: Event blind zone -1m; Attenuation blind zone - 4m
- Dynamic range - 30/28/28dB
- Durable and designed for outdoor applications
- Support for iOLM: intelligent and dynamic application that simplifies complex OTDR curve analysis with just one click

Specification:
- Display screen: 7-inch outdoor enhanced touch screen, 800x480 TFT
- Interface: 2 x USB2.0, RJ-45 LAN 10/100Mbit/s
- Memory: 2GB (20000 OTDR curves, typical)
- Battery: built-in lithium battery support 12 hours continuous operation
- Wavelength (nm): 1310/1550/1625
- Dynamic range (dB): 30/28/28
- Event blind zone (m): 1
- Attenuation blind zone (m): 4
- Pulse width (ns): 5 - 20000
- Linearity (dB/dB): ±0.05
- Loss threshold (dB): 0.01
- Loss resolution (dB): 0.001
- Sampling resolution (m): 0.04 - 5
- Sampling points: maximum 256000
- Distance uncertainty (m): ±(0.75 + 0.005% x distance + sampling resolution)
- Weight (with battery): 1.29kg

Application:
- Last mile installation and fault diagnosis
- Short distance access network testing
- FTTA fiber optic - DAS installation
- CATV/HFC network testing

Package Included:
- 1 x Set of OTDR

Note:
- Please leave a message for the interface you want: FC/UPC, or SC/UPC.
