Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $21.62 | $21.18 | $20.52 | $19.63 | Contact US |

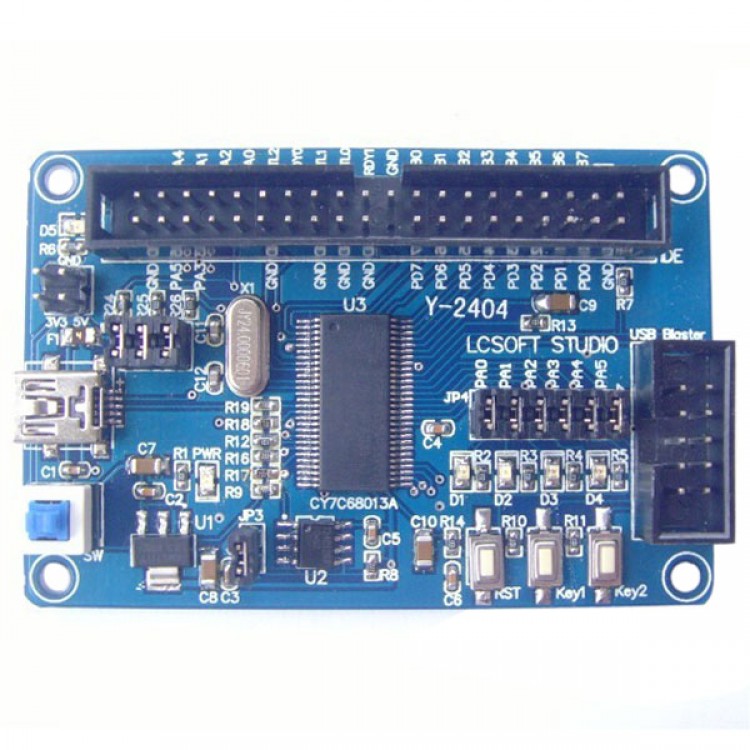

EZ-USB FX2LP CY7C68013A Move Hard Disk USB BLASTER Development Board
Description:
- the CY7C68013A-56 chip low power consumption version, enhanced 51 nuclear, 16 KB program data area, the main frequency 48 MHZ, 480 Mbps high-speed transmission protocol standards, accord with USB2.0 standard, USB1.1 backward compatibility
- the firmware EEPROM: complete in system programming scheme, with USB line directly download firmware program, provide on-board 16 K (24 LC128) large capacity program memory (EEPROM), used as a storage VID/PID and USB firmware, meet the demand CY7C68013A space program
- on-board standard 40 pin PATA (IDE) electrical outlet, use of CYPRESS GPIF interface, tie-in corresponding firmware can realize (IDE hard disk) move hard disk function
- on-board standard USB Blaster download line socket, tie-in corresponding firmware can realize the function USB Blaster download, fully compatible ALTERA USB Blaster, use method, function and performance and ALTERA original download line consistent
- on-board four programmable LED and 2 buttons, convenient show the user program running state and process conditions with trigger
- all the GPIO after 2.54 mm standard row needles of derivation, the great convenience learners to expand design
- provide the PDF principle chart and the relevant source
Package including:
- 1 pcs CY7C68013A Move Hard Disk USB BLASTER Development Board
