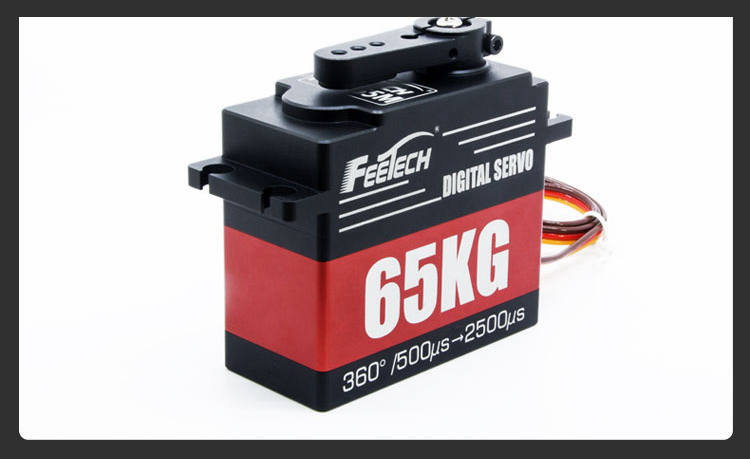

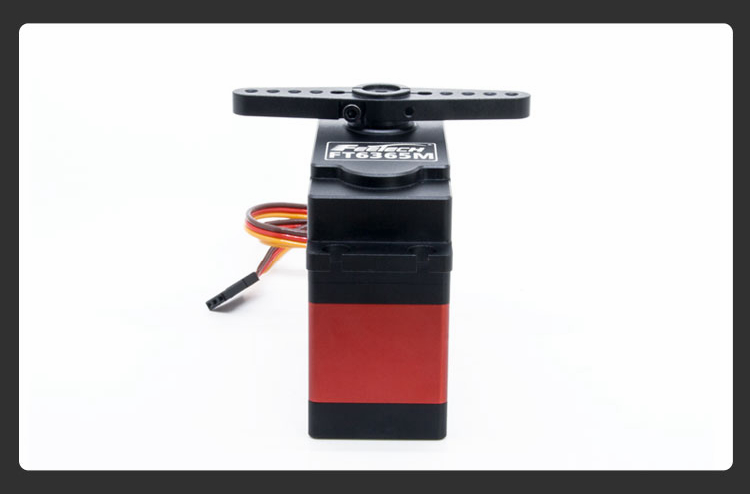

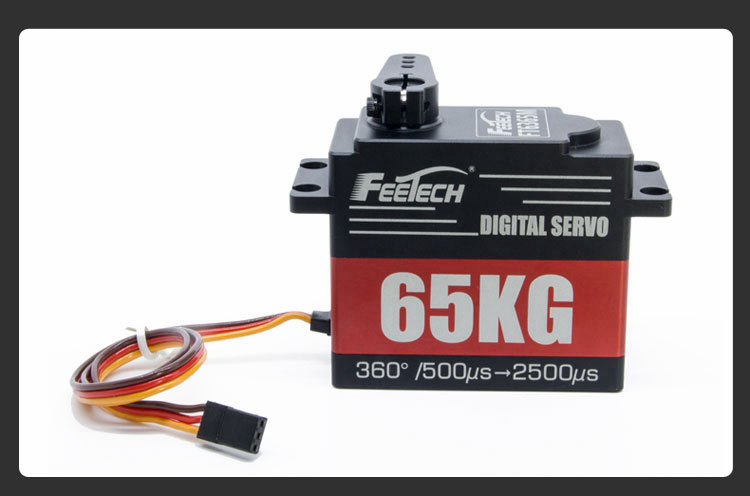

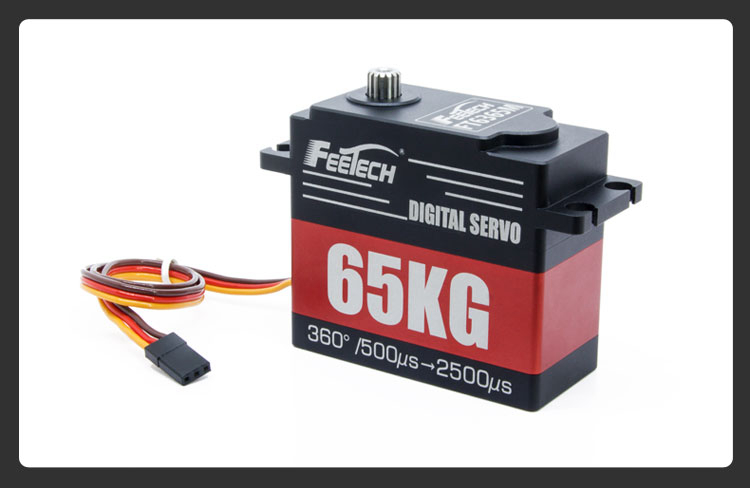

FEETECH FT6365M 65KG PWM Digital Servo Steel Gears 360 Degrees for Ship Models & Model Aeroplanes
Features:
- 7.4V 65KG PWM all-metal 360 degree digital servo with steel gears.
- All-aluminum shell: with better heat dissipation performance. The shell is made of cold-treated forged 6061 T6 aluminum alloy for high strength and rigidity. The steel gear shaft is fixed on the alloy for lower deformation and more stable movement.
- Precision all-steel gear sets: of higher strength and long life. All-steel gear set design, optimized center distance, double ball bearing design and efficient and simple transmission combination enable longer life and more stable performance.
- 12-bit magnetic encoder: The 12-bit high-precision magnetically encoded angle sensor makes it have higher control accuracy, large angle, better linearity and finer control. Therefore, there will be no jitter of potentiometer during the movement process. In addition, its lifespan is basically close to infinite.
- Intelligent control and overload protection: the protection function is activated after it is locked-rotor for 4 seconds.
- Higher precision: Gear backlash is controlled at ≤0.5°.
- High torque output: suitable for low frequency and application scenarios below 20KG.CM.
- 360°: Any angle control within 360 degrees is allowed (at 500→2500μsec).
- Full metal body: there being no variables, it is more stable to dissipate heat.
- Metal flange: High torque steel output connector with 6061 T6 aluminum alloy and black surface oxidation process.
- Application: Suitable for car models, ship models, model aeroplanes, etc.
Product Parameters:
- Servo model: FT6365M
- Angle sensor: 12-bit magnetic encoder
- Gear material: Steel
- Weight: 235.2g±1g (0.5lb)
- Voltage range: 4V-8.4V
- No-load speed: 0.227sec/60° (44RPM) at 7.4V
- Stall torque: 65kg.cm at 7.4V
- Rated torque: 18.5kg.cm at 8.4V
- Controllable angle: 360° (at 500→2500μsec)

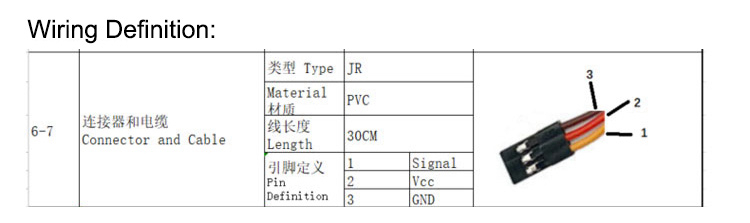

- Lead Length: 30cm/11.8"
- Dimensions: 65 x 30 x 58.4mm/2.6 x 1.2 x 2.3"
- Reduction ratio: 1:305
- Motor type: brushed motor
- Gear backlash: ≤0.5°
- KT constant: 10kg.cm/A
- No-load current: 300mA at 7.4V
- Stall current: 10.2A at 7.4V
- Rated current: 4080mA at 7.4V
- Electronic protection: Output protection torque when it is locked-rotor for 4 seconds
- Temperature protection: When the temperature is greater than 70℃, the servo will automatically stop the output torque
