FEY4015 40x40mm/1.6x1.6" XY Axis Sliding Table Sliding Stage Cross Roller Type Motorized Platform
Features:
- XY axis cross roller type sliding table
- Precise positioning
- Corrosion resistance
- High precision

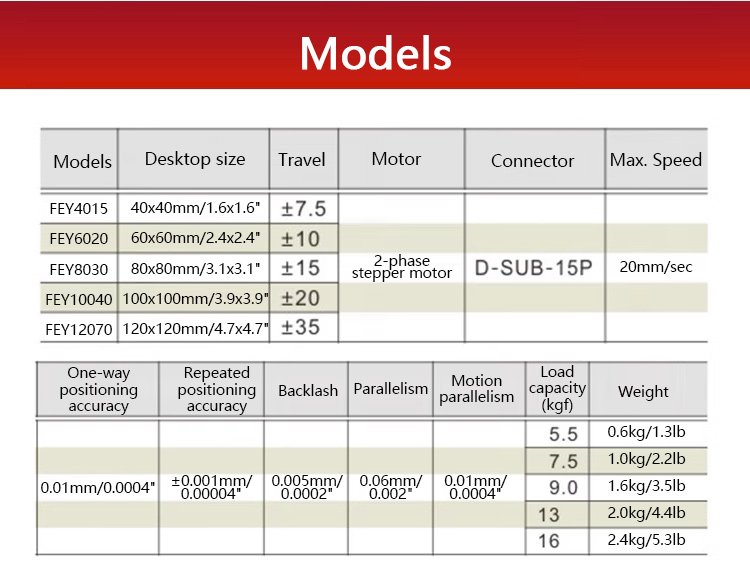

FEY4015 Specifications:
- Table top size: 40x40mm/1.6x1.6"
- Load: 5.5kgf
- Motor: Two-phase stepper motor
- Travel: ±7.5mm/±0.3"
- Accuracy: ±0.001mm/±0.00004"
- Transmission: ball screw
Package Included:

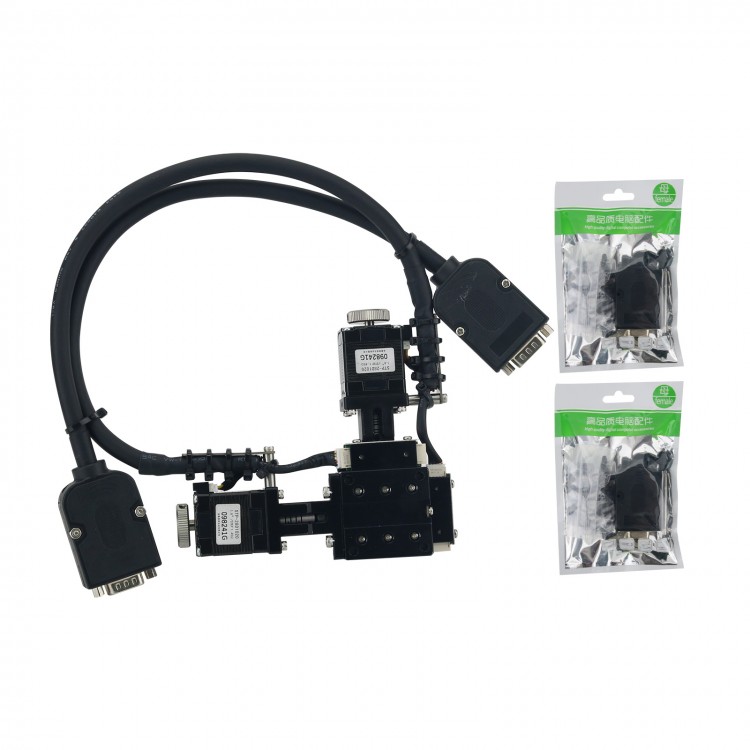

- 1 x Sliding Table
Note:
- Other cables and drivers are not included. Please purchase separately.
- Sensor: limit + origin, with NPN open circuit output.

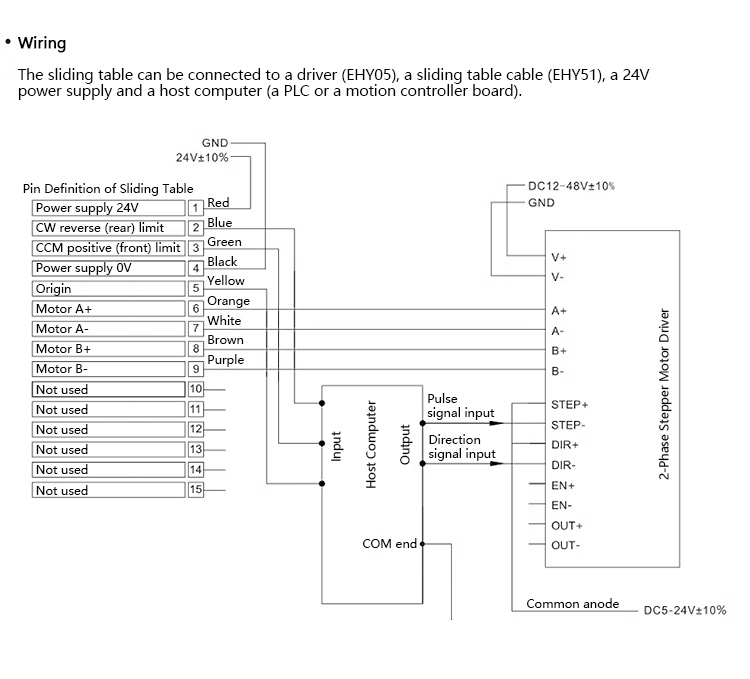

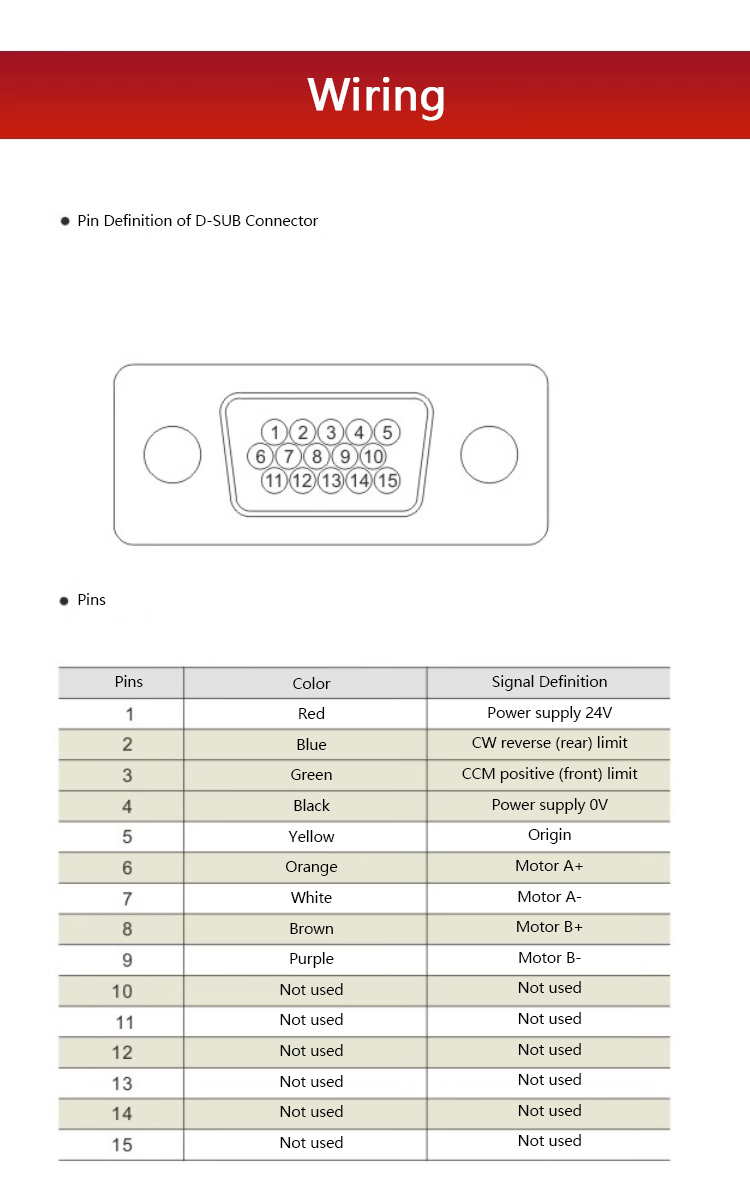

- It is designed with a 35cm/13.8" cable and a D-SUB 15-pin male connector, a 28 stepper motor, and a photoelectric switch.
- The basic parameters are designed and produced according to the standard travel.
Troubleshooting Methods:
- If the motor or mechanism is hit by an external force, please check whether the smoothness of the screw will affect the work of the sliding table.
- Do not arbitrarily adjust the left and right limit position and origin position to avoid collision and affect its use.
- Please pay attention to the firmness of the cable and socket of the limit switch, to prevent loosening.
- Do not loosen the coupling and transmission structure at will, so as not to affect the accuracy and its use.
- If there is any abnormal noise or abnormal vibration during operation, please power off and then check.
