Flight Controller PX4 PIX2.4.8 32-bit Flight Control Four-axis Multi-rotor Fixed-wing UAV Pixhawk

Availability: In stock, usually dispatched in 1 business day

  • Price:$107.07
  • Price in reward points: 1071 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $104.93 $102.79 $99.58 $95.29 Contact US
Quantity:

Flight Controller PX4 PIX2.4.8 32-bit Flight Control Four-axis Multi-rotor Fixed-wing UAV Pixhawk


Features:

- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;

- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;

- Provide redundant power input and fault transfer function;

- 14* PWM/ actuator output;

- Bus interface (UART, I2C, SPI, CAN);

- Provide automatic and manual mode;

- Color LED lamp;

- Multi tone buzzer interface;

- Micro SD to record flight data;


Specification:

- Processor:

  32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit

  Main frequency: 256K, 168MHZ RAM

  32 bit STM32F103 backup co processor

- Sensor:

  L3GD20 3 axis digital 16 bit gyroscope

  LSM303D 3 axis 14 bit accelerometer /magnetometer

  MPU6000 6 axis accelerometer / magnetometer

  MS5611 high precision barometer

- Interface:

  5* UART, 1*compatible high voltage, 2*hardware flow control

  2*CAN

  Spektrum DSM/DSM2/DSM-X satellite receiver compatible input

  Futaba SBUS compatible input and output

  PPM signal input

  RSSI (PWM or voltage) input

  I2C

  SPI

  3.3 and 6.6VADC input

  External USB MICRO interface

Color: Black

Size: 50x82x16mm

Set Weight: 52g

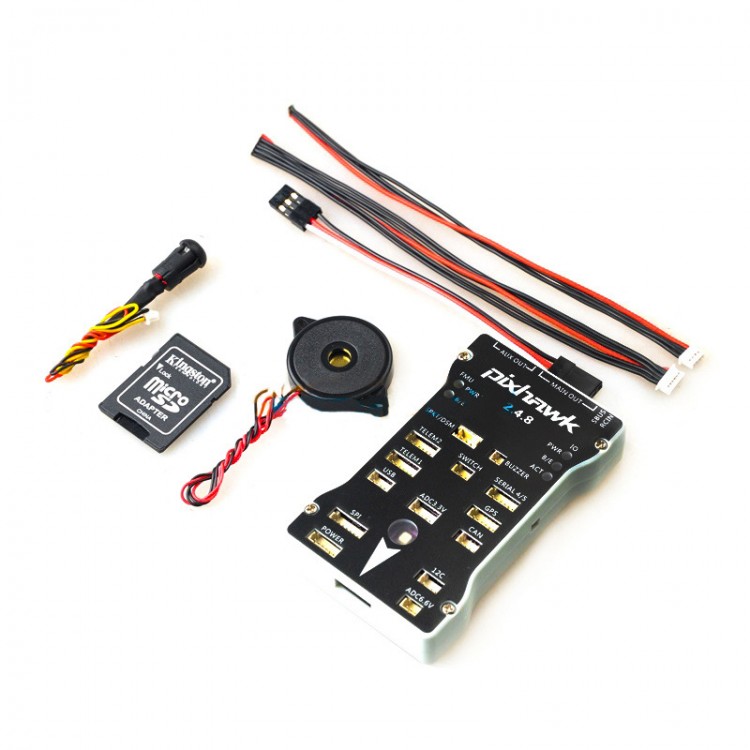

Package Included:

1 x 2.4.8 Pixhawk main control

1 x Safety switch

1 x Flight control shell

1 x Buzzer

1 x 6pin to 6pin line

1 x 4Pin to 4Pin line

1 x 3pin DuPont line

1 x SD card
