| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $107.92 | $105.72 | $102.41 | $98.01 | Contact US |

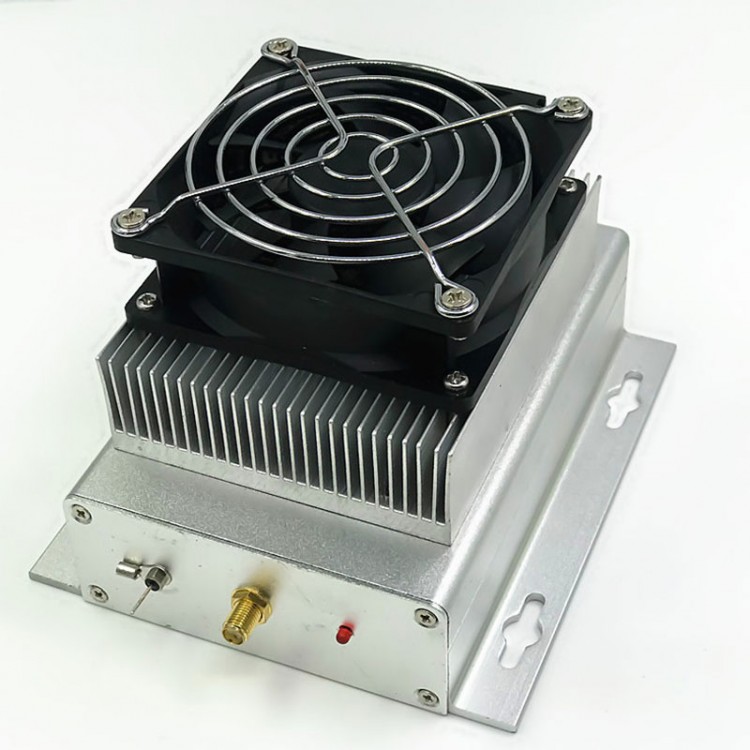

FM 70-110MHz 150W Power Amplifier 20-30V 50ohms High Quality RF Amplifier with SMA-K Connector
Specification:
- Working frequency: 70-110MHz (FM signal)
- Power supply voltage: 20 - 30V (24V)
- Power supply current: 8.0A (change with output power)
- Power gain: 18dB (typical value)
- Input power: 2 - 5W
- Output power: 52dBm (200W typical value); 48dBm - 65W at 20V power supply and input 2-5W; 49.5dBm - 90W at 22V power supply and input 2-5W; 51dBm - 125W at 24V power supply and input 2-5W; 52dBm - 150W at 28V power supply and input 2-5W; 52.5dBm - 170W at 31V power supply, input 2-5W
- System impedance: 50ohms
- Connector type: SMA-K
- Net weight: 650g
- Size: 130 x 110 x 45mm
Note:
- Prohibit working and powering on with no load/severe load mismatch.
- It is recommended to use linear power supply.
Package Included:
- 1 x RF Power Amplifier
