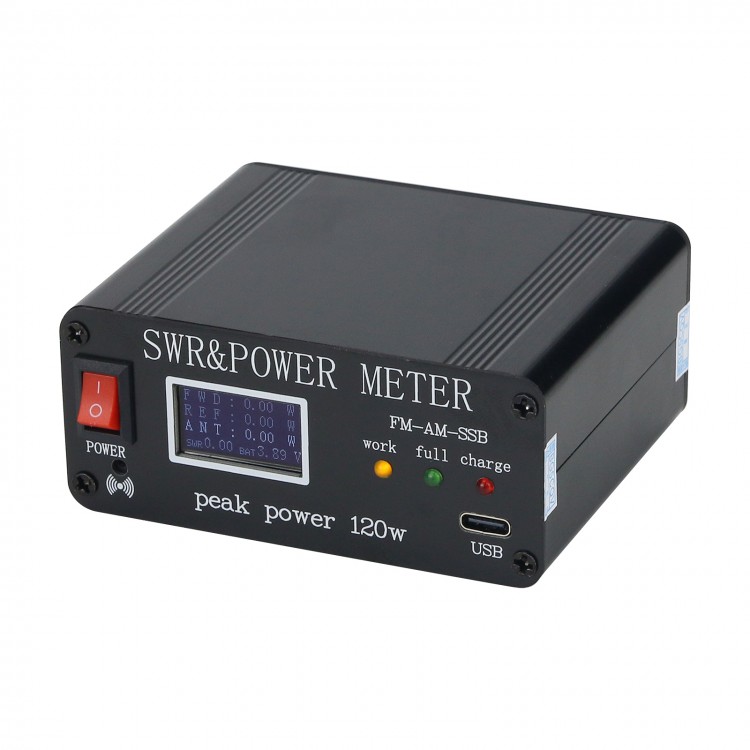

FM-AM-SSB 1.8MHz-50MHz SWR Power Watt Meter SWR & Power Meter Peak Power 120W PWR SWR Meter
Introduction:
After booting, the version information of the device will be displayed, and its power standing wave measurement interface will be displayed after 3 seconds. It also shows you its battery level. English interface is available. And call sign can be customized (need to be notified in advance).
Specifications:
- Frequency range: 1.8MHz-50MHz
- Measurement range: 0.5W-120W (up to 210w. Used below 120w for long-term FM, AM, and CW modes. SSB mode is optional)
- Measurement accuracy: < ±5%
- Standing wave range: 1.0-99.99
- Access interface: SL16 (M socket)
- Charging interface: type-c
- Size of aluminum alloy shell: 63 x 88 x 38mm/2.5 x 3.5 x 1.5" (excluding size of protruding parts)
- Battery capacity: 1000mAh
- Insertion loss: < 0.1db
What is SSB mode (optional)?
SSB mode is an intermittent power mode. In SSB mode, it can be used for a long time when the power is over 120w. That is, it can be used for a long time when the power is less than 200w.
Indicator Light and Buzzer:
- Red light is on when it is charging. Green light will be on when charging is finished. And yellow light is on when it is working.
- If the standing wave is greater than 2.5, the buzzer will prompt intermittently.
- If the standing wave is greater than 3.0, the buzzer will prompt continuously.
- If the battery is under-voltage, the buzzer will prompt continuously.
Package Included:
- 1 x SWR Power Meter
