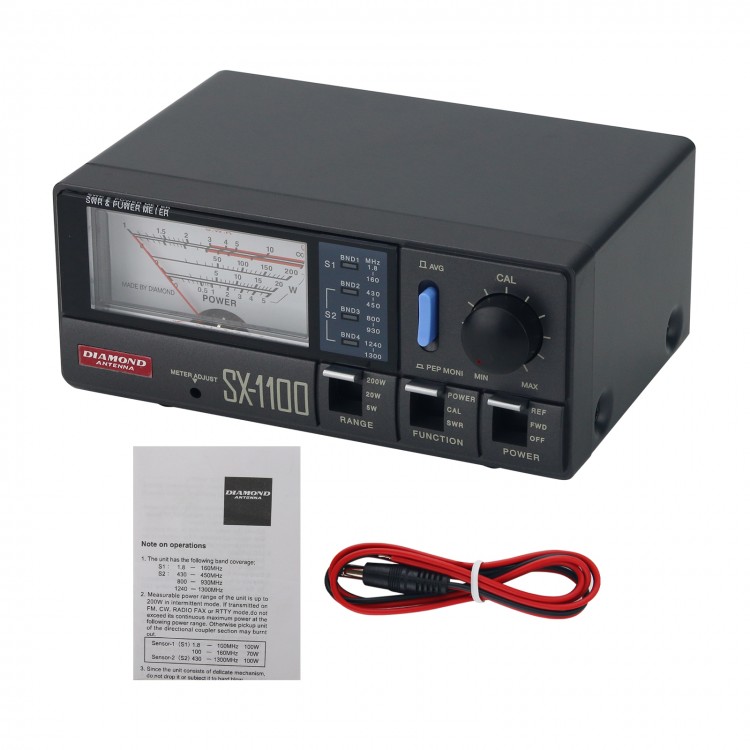

SX-1100 Original Quad-Band SWR Meter SWR Power Meter SWR Power Watt Meter for Diamond Antenna
Description:
The SX-1100 measures forward and reflected power and VSWR. Compact size makes the meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.
Features:
- Illuminated meter
- Switchable r.m.s. or peak power
- Measures forward, reflected & VSWR power
- 6"W x 2"H x 4"D, 2 lbs
Specifications:
- Frequency: 1.8-160MHz, 430-450MHz, 800-930MHz and 1240-1300MHz
- Connectors: HF-VHF: SO-239
- Power range: 5W/20W/200W
- UHF: Type-N
Package Included:
- 1 x SWR Power Meter
- 1 x DC Power Cable
- 1 x User Manual
Note: 12VDC 50mA is required for illuminated display.
