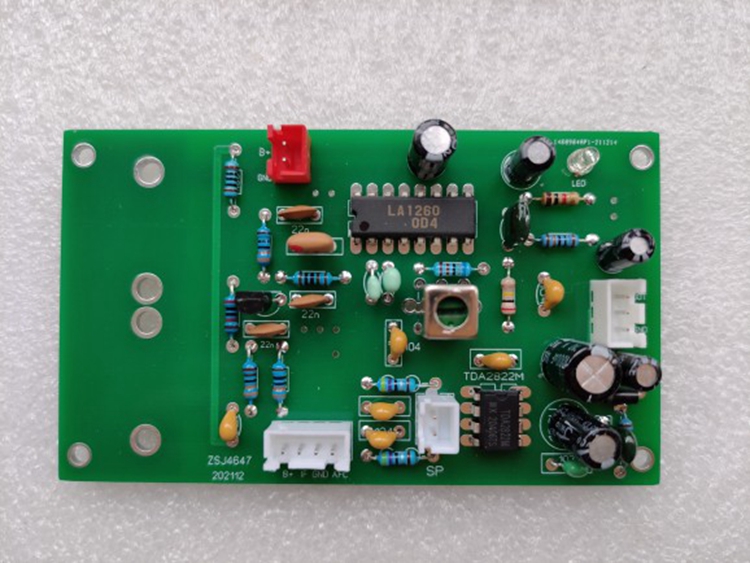

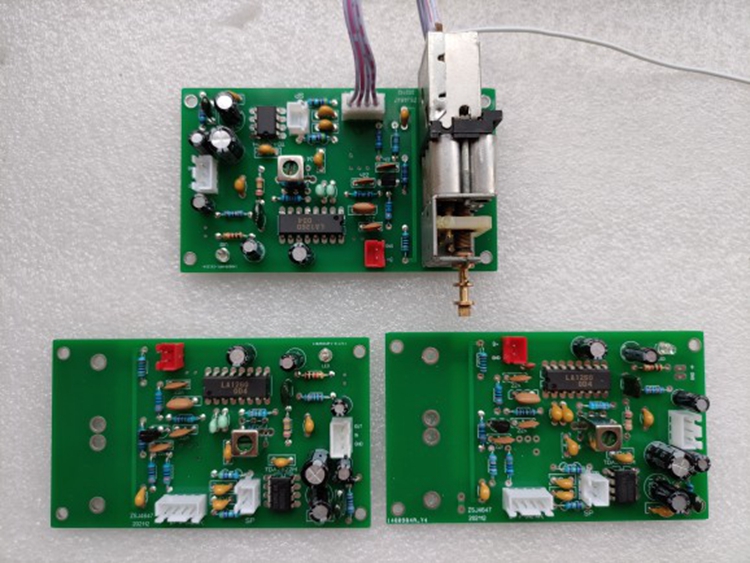

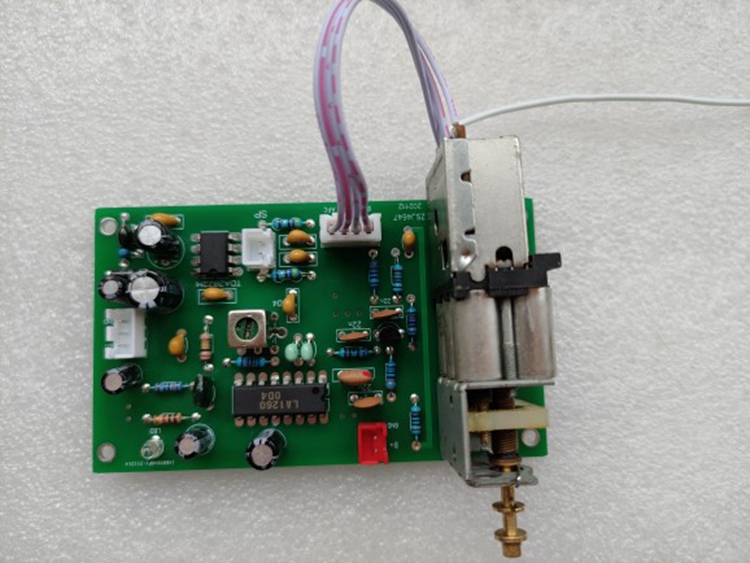

FM Radio Module Kit LA1260 Frequency Modulation Intermediate Frequency Amplifier and TDA2822M Power Amplifier
Description:
- Frequency modulation radio kit, using LA1260 intermediate amplifier chip +TDA2822M power amplifier, mono, with a level of pre-intermediate amplifier, can also be matched with other high amplifier board and electric modulation high frequency.
- TDA2822M bridge BTL mono power amplifier circuit with low power consumption is a good choice for listening to the radio.
- DC 5-8V power supply (2 series 3.7 V lithium battery, 2 series of 3.2V lithium iron, 4 x 1.5V, 5 x 1.5V, etc.).
- The motor sensor head has a good sensitivity, this board can put the sensor head directly installed on the board.
Note:
- Battery is not included.
- DC power supply, voltage cannot exceed 8V.
- Do not reverse the power polarity.
- Speaker impedance: 8ohm.
- The sensor head of engine has poor anti-jamming, please use battery power supply.
Package Included:
- 1 x FM Radio Kit
- 1 x 5-tube Sensor
- 1 x Connection Cable
