|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$36.22||$35.48||$34.37||$32.89||Contact US|
Folding Arm Mount Holder Waterproof Matte Black for X4II X6II X8II RC FPV Multicopter 30mm TL30A1

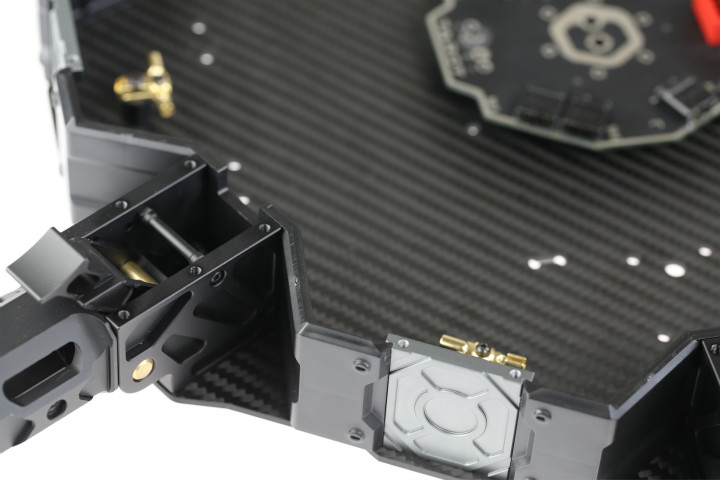

It is suitable for four-axis/six-axis/eight-axis multi-rotor UAVs with diameter Φ30MM. With button-type unlocking function, it is easy to use and it can automatically fold. The locking mechanism can automatically lock according to the vibration of the arm.
Unique waterproof design enables drone with double carbon plates free from water (Its edge needs to be coated with waterproof glue which in not included). It absolutely meets the requirement of industrial-grade drones.

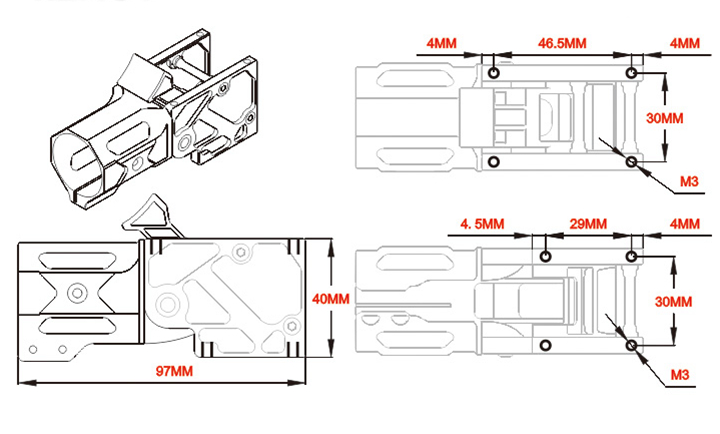

It is made of 6061-T6 aluminum alloy with CNC process. It can be applied to models including X4II/X6II/X8II directly. CAD drawings are provided for free.

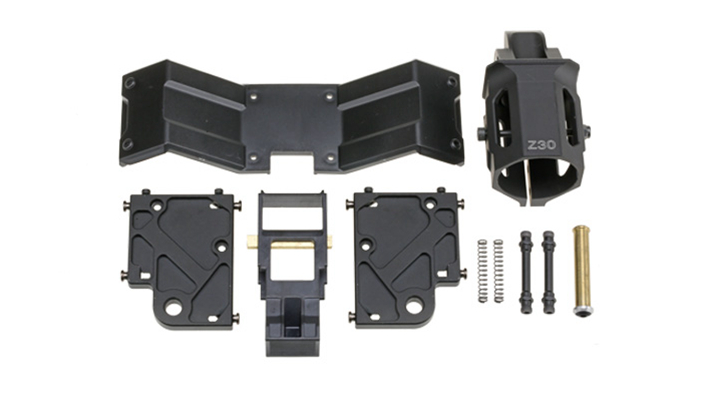

- Plastic waterproof baffle × 1 (132 × 24 × 43MM) 8.8G
- Metal left support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
- Metal right support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
- M3×5MM hexagonal screw×8
- M2×4MM hexagon socket head cap screw×4
- Φ4×26MM spring×2
- H5×27.5MM hexagonal aluminum column×2
- M2.5×5MM hexagon socket screw×4
- Unlock slider × 1 (66 × 16 × 26.5MM) 7.0G
- Self-locking copper column × 1 (Φ6 × 33MM) 6.0G
- Φ30MM metal arm clamp *1 (70×37×41MM) 46.0G
- Locating pin × 1 (Φ6 × 36.5MM) 8.1G
- M3×6MM semicircular head hexagon socket screw ×1
- M3 metal gasket × 1
- M3×40MM bushing screw ×1
- M3 anti-slip nut × 1

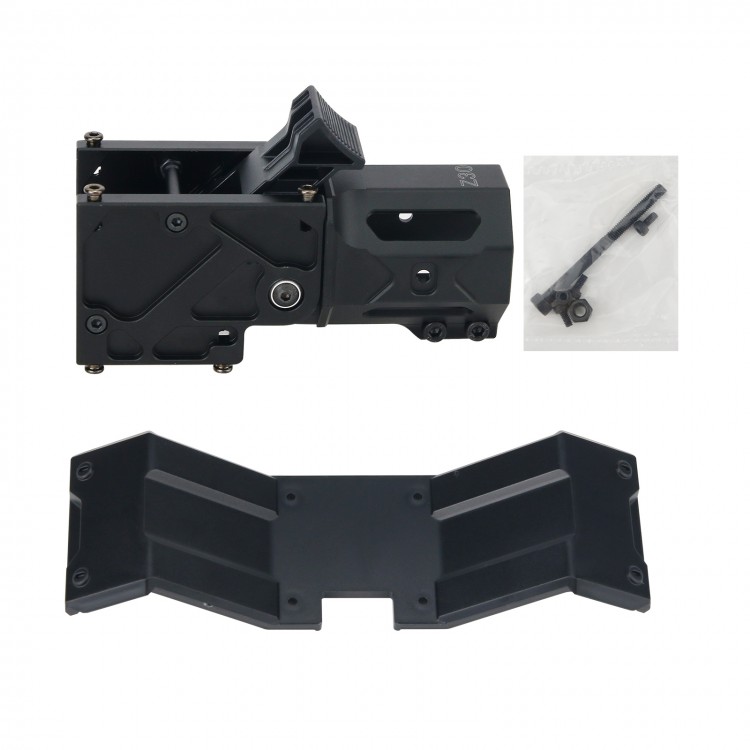

- 1 x Folding Arm Mount Holder Kit
