For New 3.5" SCSI2SD SCSI Adapter With 50-Pin SCSI to SD Card Adapter Slot (50-Pin SCSI Hard Disk)
Overviews:
This is an improved version for popular SCSI2SD. It's smaller, uses less power, and can be powered by the SCSI bus in some cases.

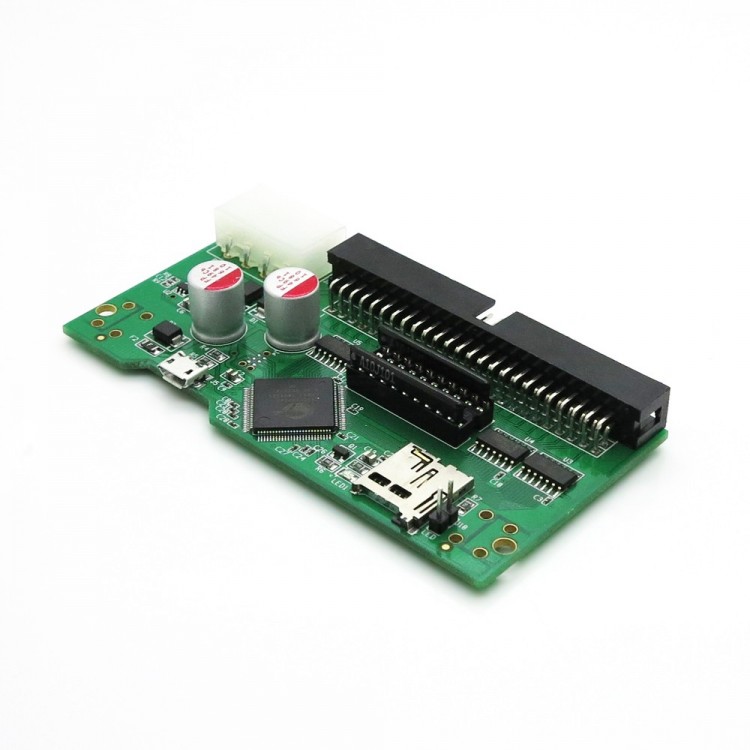

It emulates a SCSI-2 hard drive using a micro-SD memory card. It includes a fully assembled and tested circuit board, ready for use.
NOT Including:
Micro-SD memory card
Bracket for mounting within a 3.5" drive bay.
SCSI cables, power cables, USB cables, or any other accessory
For SCSI2SD is an and open source project. Please visit http://www.codesrc.com/mediawiki/index.php?title=SCSI2SD, where you will find the GPL3+ software source code.
Note: The hardware design for this new board is not currently open source.
Features:
1. In-built active terminator.
2. Emulates up to 4 SCSI devices
3. Supports sector sizes from 64 bytes to 8192 bytes
4. Firmware updatable over USB
5. Highly configurable over USB
* Selectable SCSI ID
* Selectable parity support
* Enable/disable Unit Attention Condition
* Artificial limits on the SCSI disk size (e.g. limit size to 4G to avoid OS bugs)
* Sector size (can also be set via the SCSI MODE SELECT command, as sent by SCSI format utilities).
6. External LED connector.
Technical Specifications:
- SCSI Interface: SCSI-2 Narrow 8-bit 50-pin connector. Supports asynchronous transfers only.
- SD Card Interface: Standard SDSC (1GB maximum size); SDHC, SDXC
- Power: 5V via standard molex drive connector, USB, or SCSI BUS powered (requires the SCSI host to supply terminator power)
- Dimensions: 10cm x 5cm x 2cm
Compatibility:
Please consult the full compatibility list at http://www.codesrc.com/mediawiki/index.php?title=SCSI2SD
Package Included:
- 1 x Board
