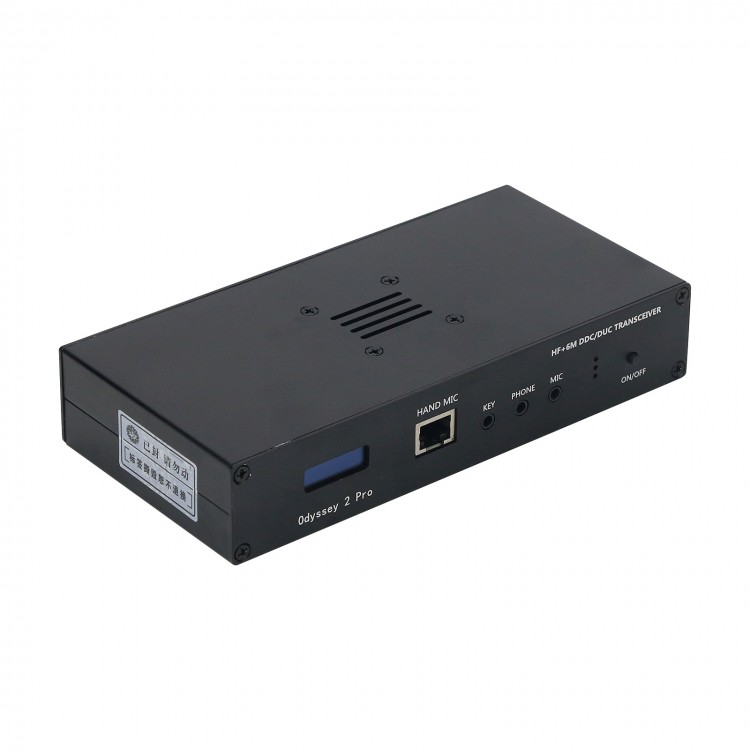

For Odyssey 2 Pro Dual 16bit Direct Acquisition SDR Transceiver Amateur Radio without Walkie-Talkie

For Odyssey 2 Pro Dual 16bit Direct Acquisition SDR Transceiver Amateur Radio without Walkie-Talkie

General Features:

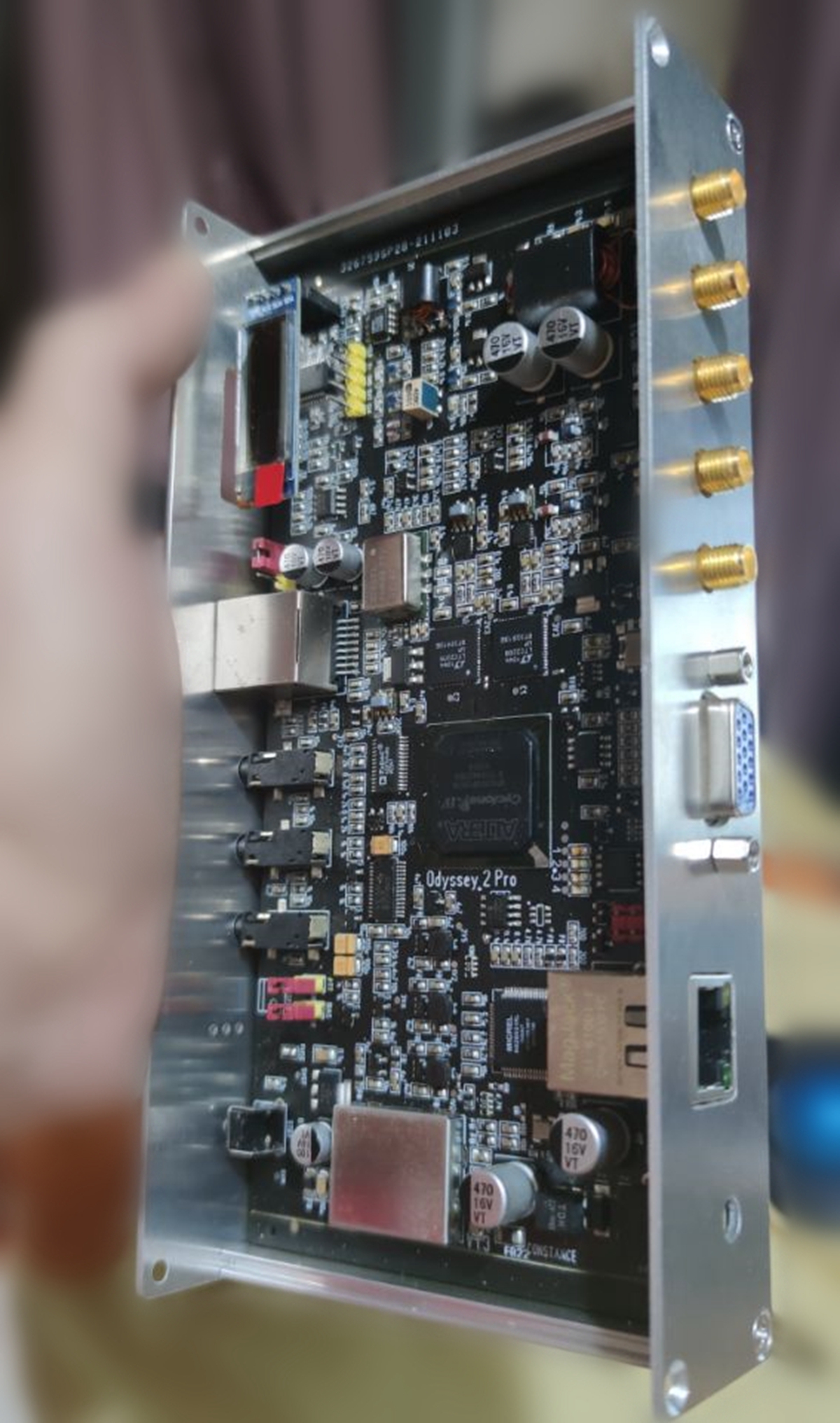

- The size of PCB is 160 x 83.5mm, suitable for installation in a 180mm x 35mm aluminum alloy outer shell, with a width of 85mm.
- The power supply voltage is 7-15V, which can prevent reverse polarity and overvoltage.
- The current consumption is 350mA when supplied by a 12V power, accompanied by a 1W output driver of 500mA.
- Connect to computer - LAN, Gigabit Ethernet or 100Mbps (depending on firmware).
- Headphones, microphones, CW robotic arm connectors - Mini Jack 3.5mm
- Handheld microphone socket (tangent) - RJ-45, compatible with Yaesu.
- Treble connector - SMA-F

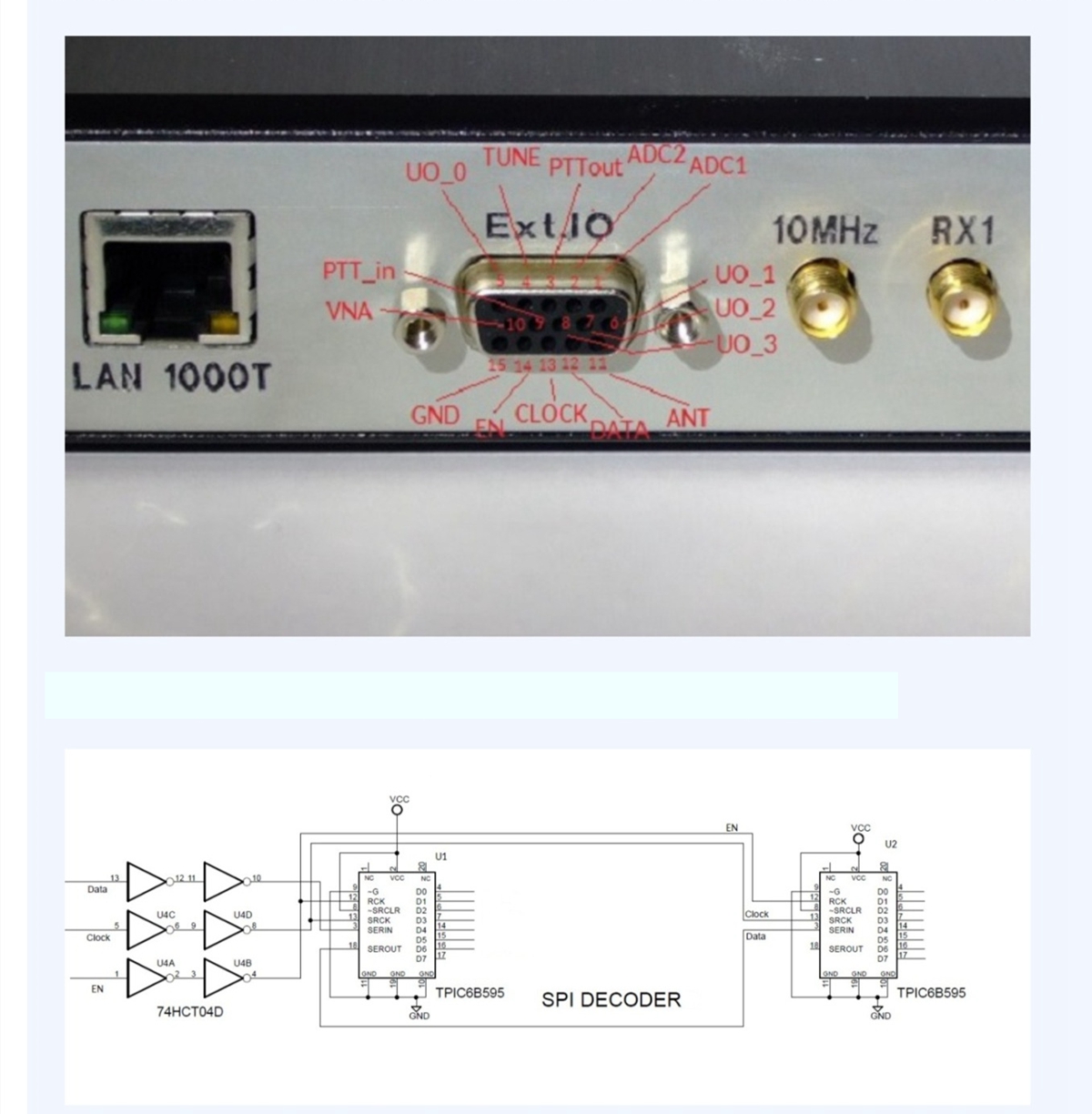

- External device control connector - DB15-F

Receiving Part Features:
- For Odyssey 2 Pro has upgraded the ADC from the original LTC2165 to a larger throughput LTC2208 with a dynamic increase of 10db.
- ADC type: 16 bit LTC2165, one or two independent receiving channels

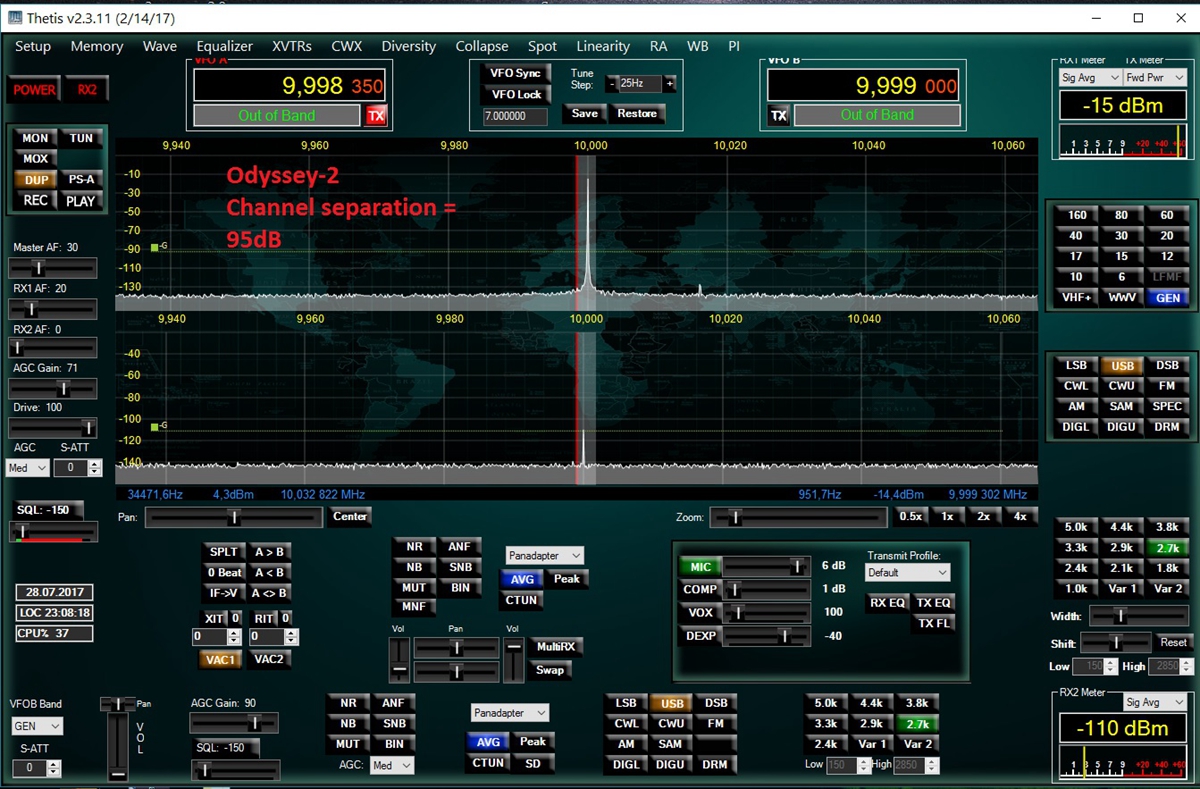

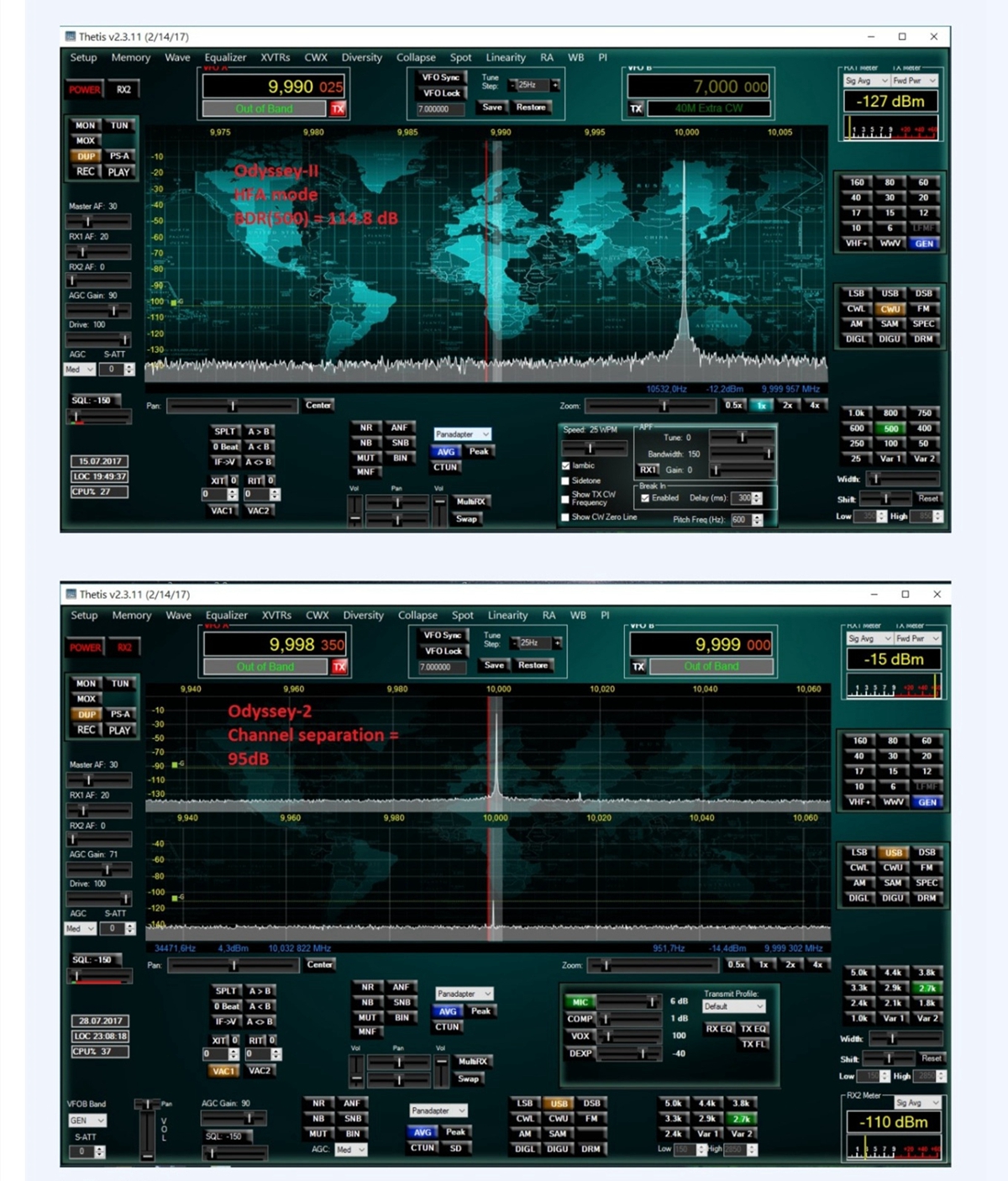

- Channel separation: -95dB (10MHz)
- Sampling frequency: 122.880MHz
- Acceptable frequency range: 0.1 - 55MHz
- Independent receiver number: 4 - 7 (depends on firmware)
- Sensitivity MDS (500): 127dB, installed UHF: 134dB
- Attenuator: 0 - 30dB, take 1dB as step length

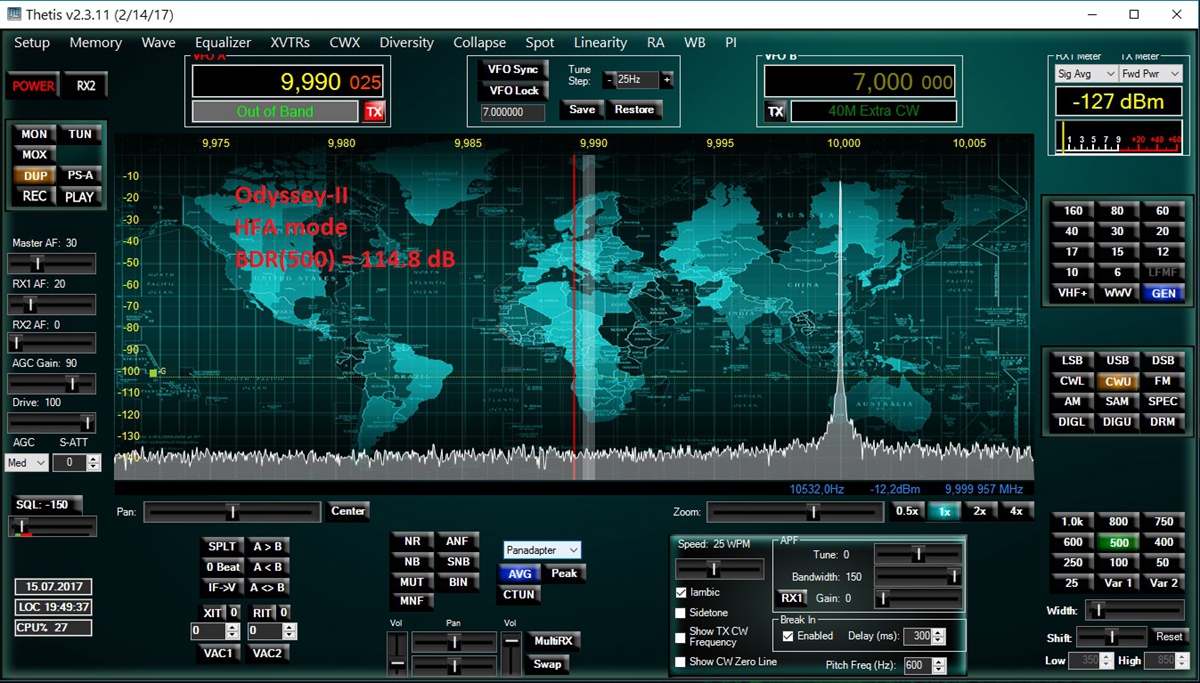

- Blocking dynamic range: 122dB
- 115dB dynamic range is limited by phase noise
- Built-in reference oscillator provided frequency stability: 0.280ppm

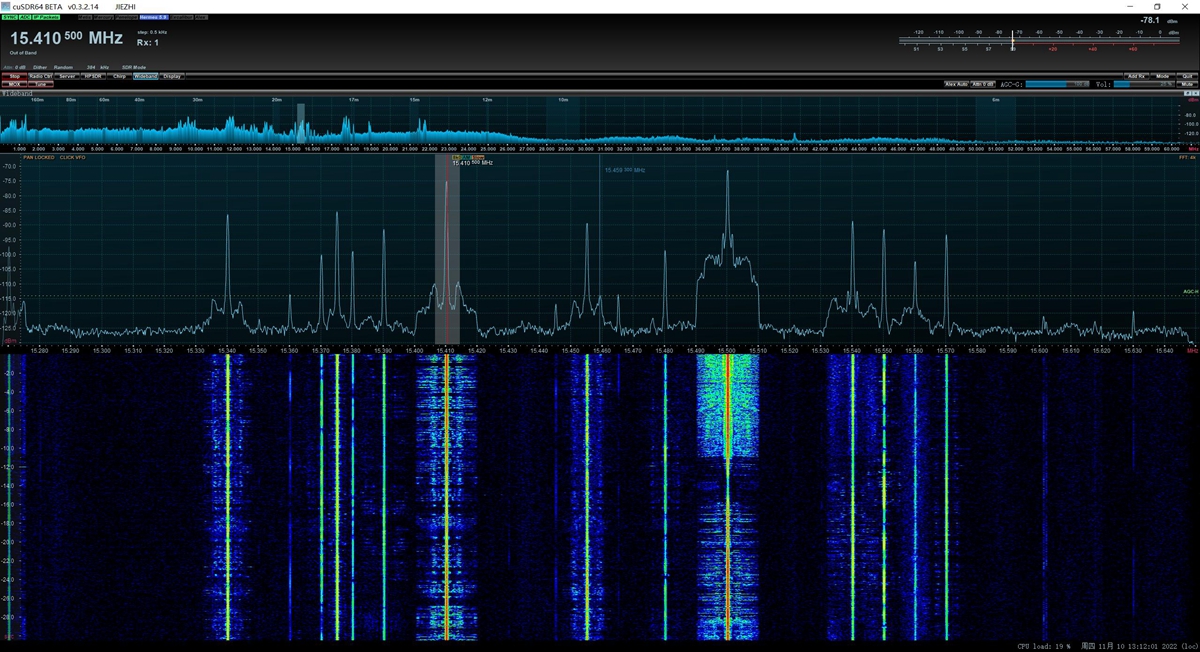

- Available width for panoramic observation: 48 - 1536KHz

Transmitting Part Features:
- Working frequency range: 1 - 55MHz
- Output voltage of VNA connector (50ohm load): 0.5V (peak value)
- Output voltage of 1W connector (50ohm load): 10V (peak value)
- VNA output linearity: IMD3 70dB
- Output signal linearity (1W): IMD3 40dB
- Maximum transmitting signal width: 48 - 96Khz (depends on firmware)

Additional function:
- The ability to connect an external stable reference oscillator at 10MHz (logic level 3.3-5V).
- The built-in 12 bit low-frequency ADC can measure output power and reflection signals, as well as SWR.
- Four control lines for additional equipment are used to control the input and output of the transmission mode and the output of the auto tuner.
- A serial data bus for decoders with 16 outputs, which can control ALEX power amplifier boards.

Package Included:
- 1 x Host
