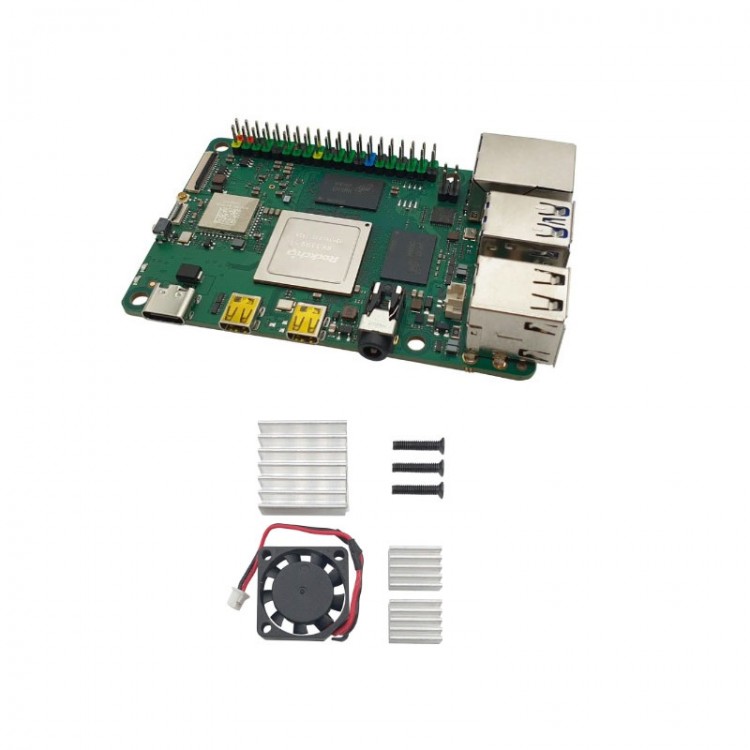

For ROCK Pi 4C+ V1.41 New Version 4G RK3399T 64Bit 6-Core A72 A53 Development Board with Dissipation Fan

For ROCK Pi 4C+ V1.41 New Version 4G RK3399T 64Bit 6-Core A72 A53 Development Board with Dissipation Fan

For Rock Pi 4C+ 4GB product details:
RK3399T 64bit hexa core processor:
- Dual Cortex-A72, frequency 1.5GHz (oc to 2GHz) with quad Cortex-A53, 1.4Ghz (os to 1.6GHz) with separate NEON co-processor

GPU:
- For Mali T860MP4 GPU, supports for OpenGL ES 1.1/2.0/3.0/3.1/3.2, for Vulkan 1.0, for Open CL 1.1/1.2, for DX11.

Memory LPDDR4:
- 64bit dual channel LPDDR4 at 3200Mb/s, 4GB

Micro SD Card:
- SD card slot supports up to 128GB SD card

M.2 SSD:
- M.2 (M) 2230 up to 2T M.2 NVME SSD via PCIe 2.0 x 4 interface

Peripherals:
- Display MIPI DSI:
  MIPI DAI 4 lanes display via FPC connector
  Two of HDMI/HDMI2/MIPI DSI can work at the same time, support mirror or extend mode.
- Camera MIPI CSI:
  MIPI CSI 2 lanes via FPC connector, support up to 8MP camera
- Audio:
  Audio 3.5mm jack with mic with improved mechanics
  HD codec that supports up to 24-bit/96kHz audio
  Output can drive 32Ohm head phones directly

USB 3.0:
- USB 3.0 HOST x1
- USB 3.0 OTG port x1 (upper one)
- hardware switch for host/device switch, upper one

USB 2.0:
- 2x USB HOST ports

LAN:
- GbE LAN (with PoE support via add on PoE HAT)

IO 40-pin expansion header:
- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Others:
- Power button
- Dual pin PWM fan header (controller chip onboard)
- Power USB-C recommended 5V/5A
- Size: 85 x 54mm
- Note: It fits mechanically many of the existing for Raspberry Pi 4 accessories.

Essentials you need:
- For ROCK PI 4, Model: A/B or Model C/C+
- Power adapter with USB type-C port equal or larger than (5V 3A) 15W (or 5V 5A - 25W with mounted SSD)
- Micro SD card or eMMC module with eMMC-to-uSD adapter board
- Keyboard & Mouse
- Monitor with HDMI input

Note:
- It fits mechanically many of the existing for Raspberry Pi 4 accessories.

Package Included:
- 1 x Development Board

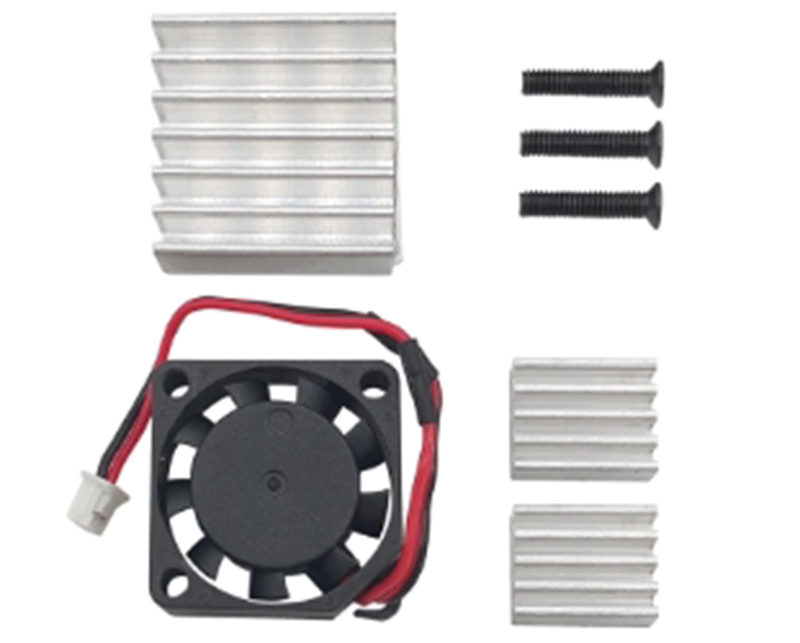

- 1 x Dissipation Fan Kit

More Information:
- https://github.com/radxa-build/rockpi-4cplus/releases
- https://rockchip.fr/Rockchip%20RK3399%20TRM%20V1.3%20Part1.pdf
