For USB AVRISP MKII XPII AVRISP MKII Programmer Downloader Supports For Original AT AVRISP MKII MK2
Features:
- Support new software: for Atmel Studio 7.0, and old versions of Studio 6, 5, 4, etc.
- Supports automatic firmware upgrade
- The product has passed tests and upgraded to the new firmware before shipment
- Fully compatible with original AT AVR ISP mkII for Atmel
- Use the official software for Atmel Studio directly
- In the official software for Atmel Studio, it is recognized as the original AVRISP mkII

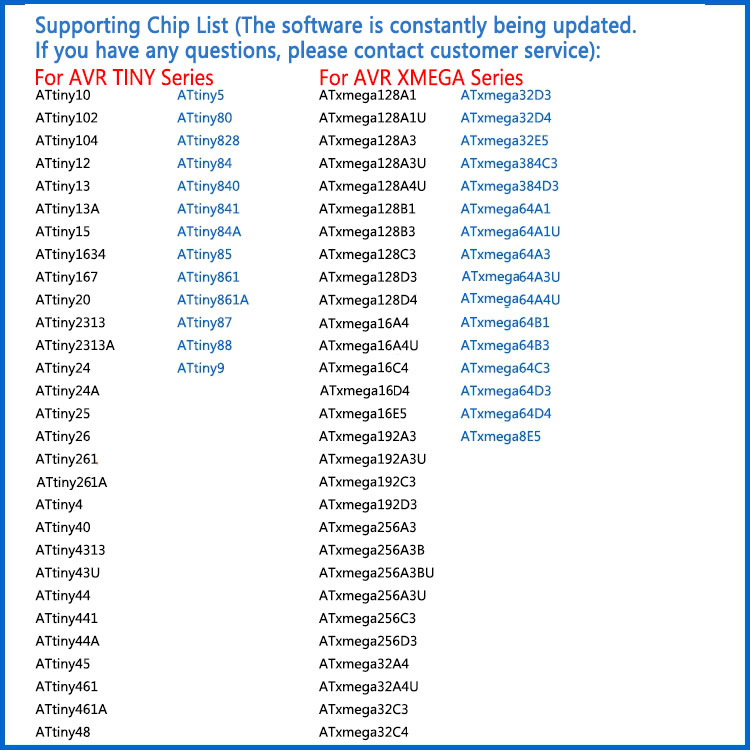

- Automatic upgrade, matching to different versions of software, can support new chip models
- Support for Atmel Studio 4, 5, 6, 7.0 and the latest version, etc.

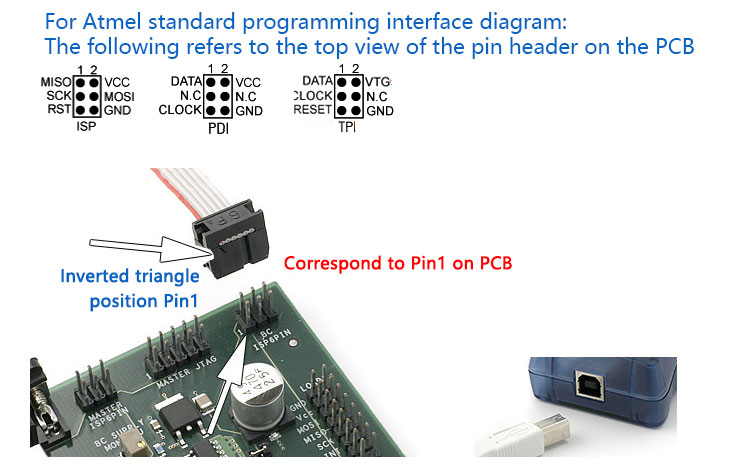

- Support ISP, PDI, TPI three programming download methods
- Supported target voltage range 1.6V~5.5v
- Adjustable ISP programming rate: 50Hz~8MHz
- No need to install additional drivers, automatic identification
- Pure USB 2.0 interface, speed up to 12Mbps
- Very good security, with target chip interface Target interface protection and short circuit protection
Package Included:
1. USB AVRISP mkII downloader x 1
2. ISP-6Pin to ISP-10Pin standard adapter cable x 1
3. 6Pin loose head cable x 1
4. USB square port cable x 1
5. CD-ROM data disc x 1
More Information:
- Interface support: pure USB interface
- Programming Interfaces: SPI programming (ISP interface); PDI Programming (PDI interface); TPI Programming (TPI interface)
