AVR Programmer & Debuggers USB AVR JTAG ICE XPII Compatible with AT JTAGICE mkII mk2 ATJTAGICE2

AVR Programmer & Debuggers USB AVR JTAG ICE XPII Compatible with AT JTAGICE mkII mk2 ATJTAGICE2

Description:
It is fully compatible with AVR JTAGICE mkII emulator. The functions, interface, usage and upgrading of these two devices are the same.

Its supported software is the same as that for original JTAGICE mkII, and can be upgraded automatically.

Simulation Function: Support for debugWIRE, JTAG, aWire, PDI
Programming Function: Support for ISP, JTAG, aWire, PDI
Interface Standard: USB interface and serial port
Supported Software: Support for AVR Studio4, 5, Atmel Studio7.0, 6 and 6.2
Upgrading: Firmware program is automatically upgraded to support for the models supported by the new Atmel Studio version in the future.

Features:
- Suitable for Atmel Studio4, 5, 6, 6.2 and 7.0
- Support AVR device with JTAG interface
- Support for AVR devices with single-wire debug interface (debugWIRE)
- Can simulate the digital and analog part of chips
- Software breakpoints
- Program memory breakpoints
- Support for assembly and HLL level debugging (HLL Source Level Debugging)
- JTAG can program Flash, Eeprom, Fuses and Lockbits
- Can be programmed and controlled by PC 232 interface or USB1.1 interface
- 9-15V DC power supply
- Can be powered separately by USB
- JTAG and single-line debugging function are attached to the same hardware

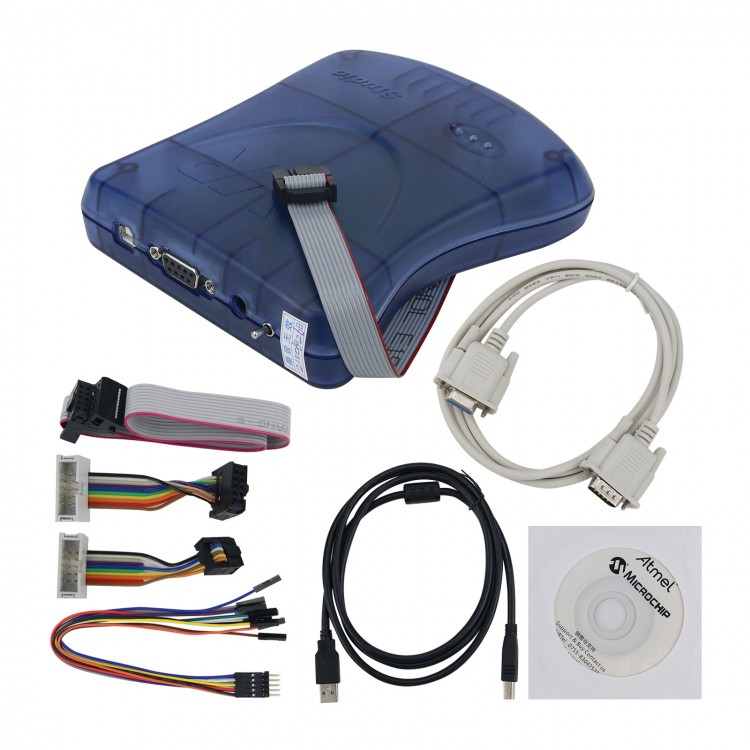

Package Included:
- 1 x AVR Programmer Main Unit
- 1 x USB Cable
- 1 x 10PIN Connection Cable
- 1 x Serial Connection Cable
- 1 x JTAG to ISP_6PIN Adapter Cable
- 1 x JTAG to ISP_10PIN Adapter Cable
- 1 x AVR Technology CD
