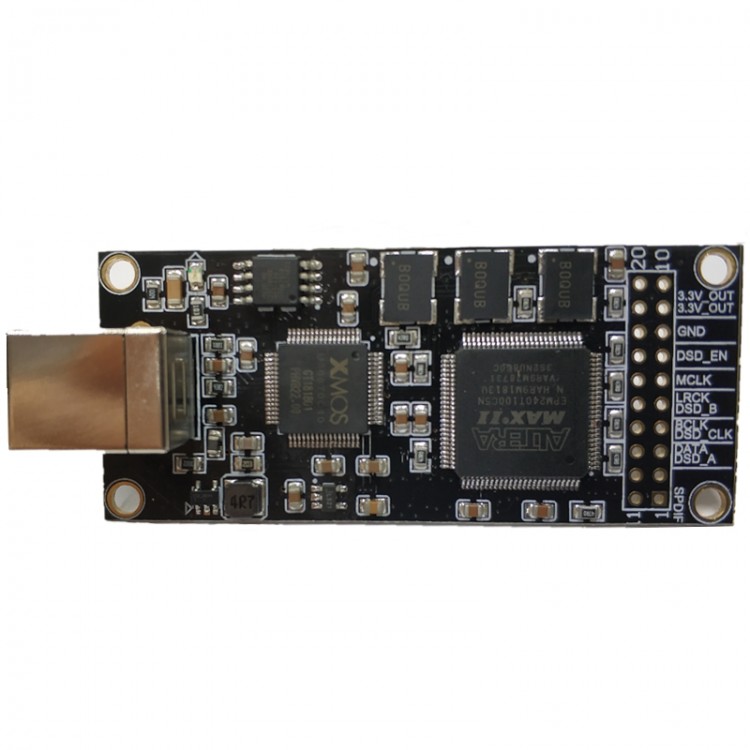

For XMOS CPLD USB Digital Interface Audio I2S SPDIF Output DSD256
Specifications:
- Size: 3 x 6.9cm
- Input: USB 2.0
- Output: I2S, DSD & SPDIF
- Crystal Oscillator: Silicon crystal oscillator with low jitter, low phase noise, and low temperature drift
- Chips:
U208 core chip adopted to greatly improve its processing speed
CPLD performs clock reshaping and dejitter to effectively improve the jitter of the I2S clock signal
- Current: 110mA
- Others: Fully fit for Italian digital interface and support SPDIF Dop64 output
- Sampling Rate:
PCM: 16-32Bit 384K (Support for ASIO driver);
DSD: DSD64, DSD128, DSD256 (Native DSD);
SPDIF: PCM: 44.1-192K;
DSD: DOP64 (DSD64).
Download Driver Here:
http://moonshadow.com.cn/download/showdownload.php?id=23
http://moonshadow.com.cn/download/showdownload.php?id=22
Only For DSD128:
http://pan.baidu.com/s/1c1R0uBm
Only For DSD256:
http://www.moonshadow.com.cn/download/showdownload.php?lang=cn&id=23

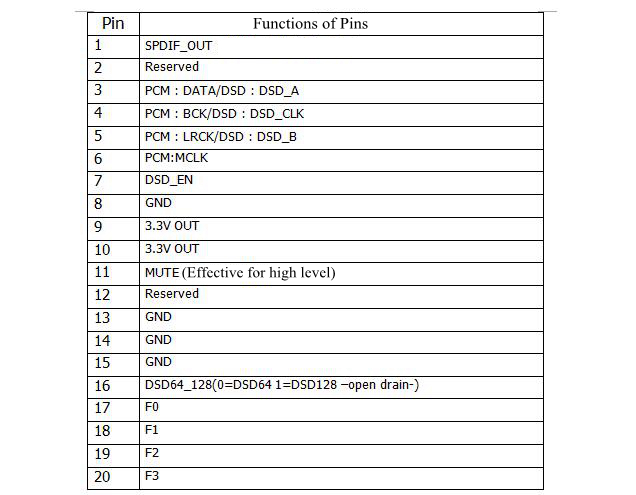

Pin Definition:

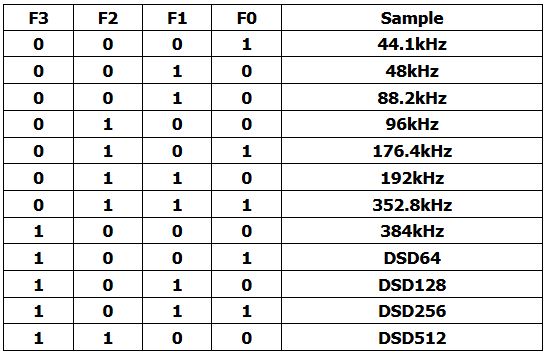

Sampling Rate Description:
Package Included:
- 1 x USB Digital Interface
