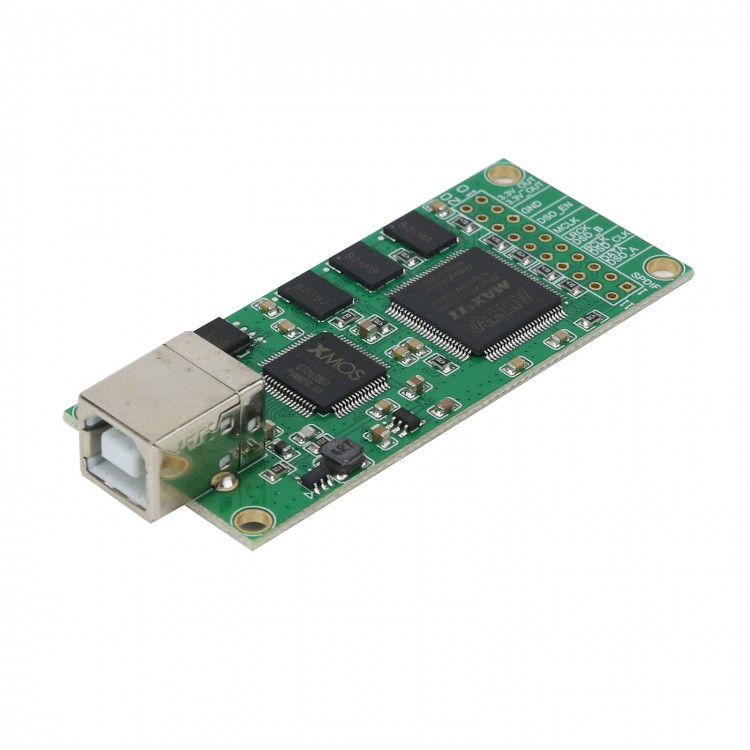

XMOS + CPLD U208 USB Digital Interface Input USB 2.0 to I2S DSD SPDIF Output
Description:
The CPLD performs clock reforming and removes jitters to effectively improve the jitter of the I2S clock signal. It makes the DAC sound purer and the details better. It can be installed to AK4497 ES9018 28 38 and other DAC.
Features:
- Input: USB 2.0
- Outputs: I2S, DSD, and SPDIF
- Crystal Oscillator: SITIME silicon crystal with low jitter, low phase noise and no temperature drift. Phase noise <1pS phase jitter. Frequency jitter factor <1pS RMS
- Chip: XOMS chip adopts the latest model chip of HU300 series U208 core, and the processing speed is greatly improved
- PCM: 16-32Bit 384K (must be driven by ASIO)
- DSD: DSD64, DSD128, DSD256 DSD512 (native DSD)
- SPDIF: PCM: 44.1-384K
- DSD: DOP DSD64 DSD128
- I2C control pins create more DIY possibilities
Package Included:
- 1 x USB Digital Audio Interface
