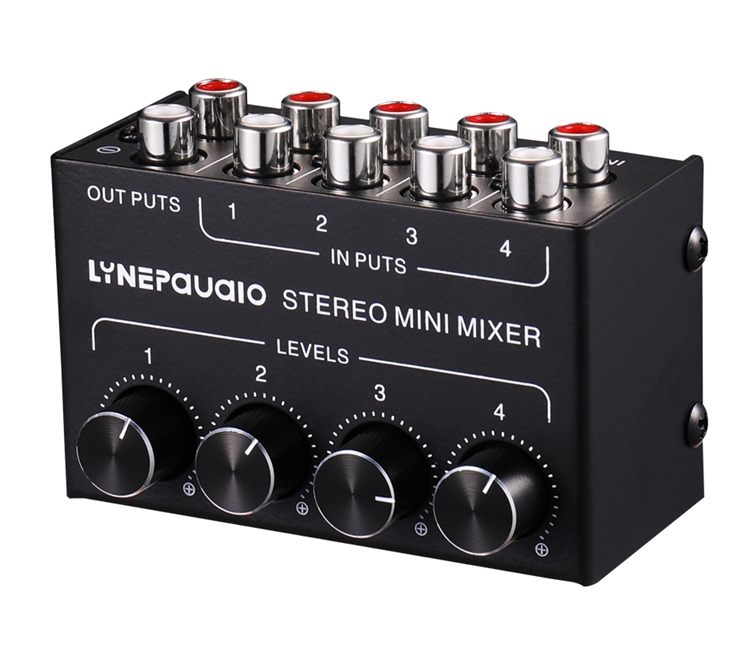

Four-Channel Passive Stereo Mixer Mini Size B896 for CD Player Tape Player Computer Mobile Phone
Description:
Mini passive stereo mixer is a stereo four-way passive mixer for extended control tuning, mixing instrument, CD player, tape player, computer, mobile phone, tablet and so on. No battery or other power source required.
The device can also be used as 1 In 4 Out stereo distributor clockwise to adjust the volume.
OUTPUT: is used to connect RCA jack to mixer output or other output devices.
IN 1-4: controls the signal level from input 1-4.

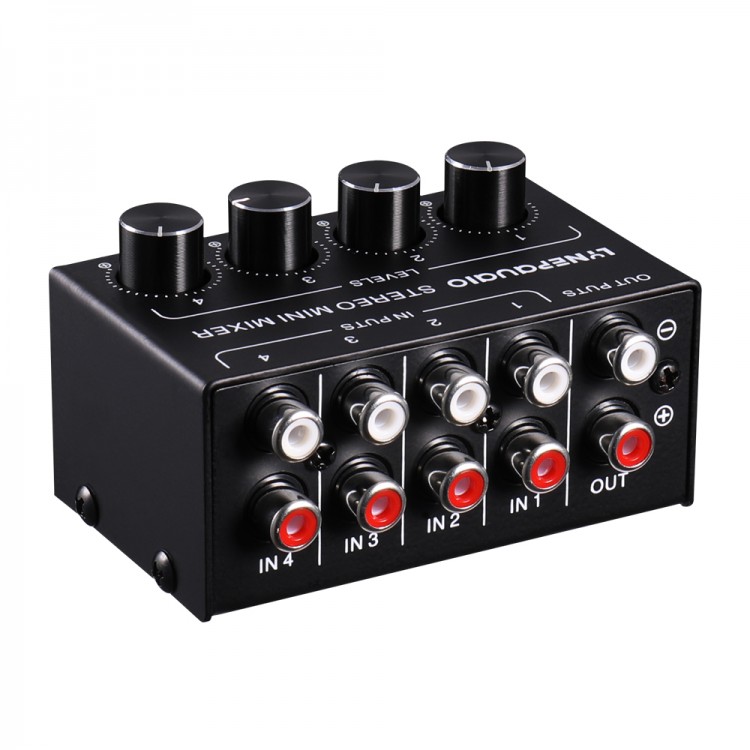

4 groups of stereo RCA input and 1 group of stereo RCA output, 4 independently regulated 100KΩ potentiometers.
Specifications:
- Input impedance: 10KΩto 47KΩ
- Output impedance: 2.5K Ω to 10KΩ
- Gain: -12dB MAX
- Product net weight: 0.2 kg
- Product weight after packing: 0.32 kg
- Product size: length 83 mm X width 52 mm X height 38 mm
- Packing size: length160mm X width 180 mm X Height 60 mm
Package Included:
- 1 x Passive Stereo Mixer Four-Channel
