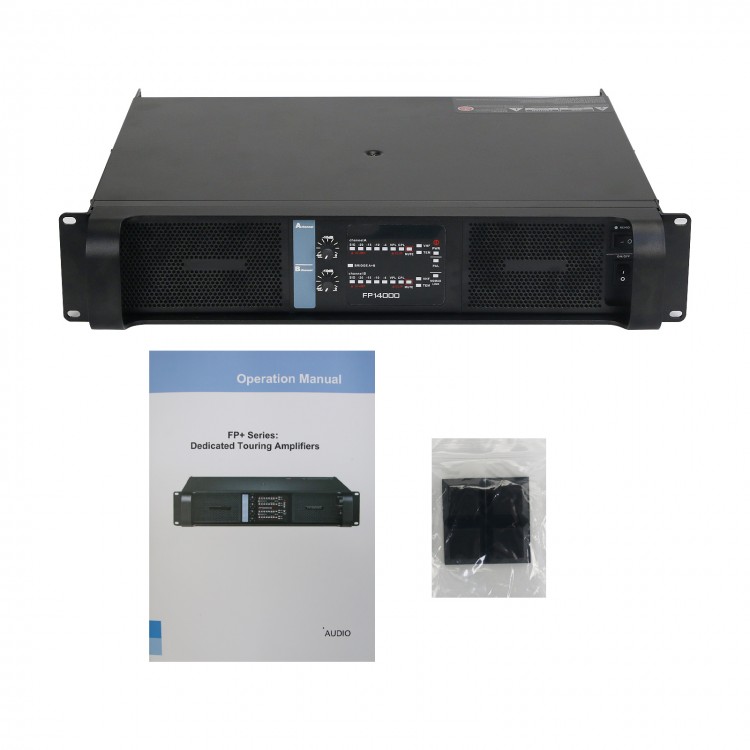

FP14000 Professional Switching Power Amplifier 2350W x2 Channel Power Amplificatore Subwoofer Stage Line Array Sound Amplificador For KTV

FP14000 Professional Switching Power Amplifier 2350W x2 Channel Power Amplificatore Subwoofer Stage Line Array Sound Amplificador For KTV

Products Description:
- FP series is a high performance switching power amplifier, compact structure, reasonable; each channel with independent adjustable peak output voltage, the amplifier can be very easy to drive different power sizesspeakers ; intelligent protection circuit provides advanced technology to protect the internal circuits and connected loads, can in extreme conditions to protect the amplifier and speakers. For large-scale performances, venues, business senior entertainment clubs and other places.

Specification:

- FP14000 Technical Parameters

8Ω Stereo Power: 2X2350W

4Ω stereo power: 2X4400W

2Ω stereo power: 2X7000W

8Ω Bridged Power: 8800W

4Ω Bridged Power:14000W

- Frequency response (+0 /-0.3dB, 1W/8Ω): 20Hz-34KHz

- THD 20 Hz-20 kHz 1W: <0.1%

- SNR:> 112dB

- channel separation (crosstalk) 1 kHz:> 70dB

- input connector: XLR female

- output connectors: Speakon Block

- input impedance: 20KΩ balanced

- level adjustment: Front panel potentiometer, from minus infinity to 0dB

- cooling: variable speed fan, airflow from front to rear

- amplifier protection: short circuit, DC voltage, overheating, RF, ultra-low frequency protection

Power Supply:
- 120VAC60Hz;100VAC50/60Hz;
- 220VAC50Hz;230-240VAC50Hz.

- Chassis size (H * W * L): 88mmX483mm × 396mm

- Packing Size (H * W * L): 180mmX560mm × 500mm
