X5 Output 150Wx4 DSP Audio Processor 31-Segment Car DSP Amplifier Lossless 4-Channel Car Audio

X5 Output 150Wx4 DSP Audio Processor 31-Segment Car DSP Amplifier Lossless 4-Channel Car Audio

Specifications:
- Model: X5
- Bluetooth: version 4.2
- Output impedance: 8-2Ω
- Signal to noise ratio: 108db
- Distortion: 0.01%
- Effective output power: 4*150W
- Peak output power: 4*250W
- Working voltage: 11-16V
- Frequency response range: 20Hz-20KHZ
- Product size: 205*175*48mm

Features:
- DSP sound quality processing power amplifier. Class AB high power + DSP tuning technology
- High power, non-destructive installation, multiple safety protection, 31-segment DSP tuning
- 31-band EQ floating point balance adjustment, freely adjust suitable sound effects
- 4-core dual-module chip: dual-module sound quality processing chip, the sound quality is clearer
- High power: battery is connected to real high power, easy to solve the power shortage
- Not just power amplifier. Sound quality processing + power amplification + sound effect adjustment, mobile phone computer 31-segment tuning
- Adjustable sound field delay, single channel adjustment, multi-channel adjustment, three-dimensional sense of stage enjoyment
- Can be connected to an active subwoofer. RCA interface can be connected to active subwoofer
- Solve sound quality problems. It can solve the problems of poor sound quality of the original car, muddy sound, insufficient bass, no layering, and insufficient power
- A variety of audio source input methods: Bluetooth playing, AUX connected to mobile phones, to solve the audio source problem
- Support 99% models: more than 700 models, non-destructive installation for special vehicles
- No need to worry about tuning. Built-in six adjusted modes, which can be used directly, there are also video instruction and professional guidance
- Referring to audio processing restoration algorithm for BBE, rearrange and adjust the delayed signal of the original car host to make the sound quality clearer. Based on the sound quality restoration, the sound quality processing is assisted to achieve high fidelity of the sound quality.
- Imported transformer, thermistors provide overheat protection, positive and negative half bridge, dual power supplies with large dynamics, 6pcs capacitors for Rubycon, filter inductors, MOS tube for ST, four pairs of Japanese power amplifier tubes, preamp power supplies, 4.2 Bluetooth/phone listening to music/ Mobile phone APP tuning, audio source switching/enhanced bass/sound quality processing, double-sided patch, 4-core DSP processing module. So, its effect is better than 99% similar products
- X5 equals to a high-end host, a DSP processor and a power amplifier. Support AUX input, Bluetooth input, solving audio sources. 31 segments of mobile phone, computer tuning, excellent sound quality processing. Pair of amplifier transistors, high-power class AB.
- The sound of transistors is delicate, soft and warm, and the low frequency sound is thick.

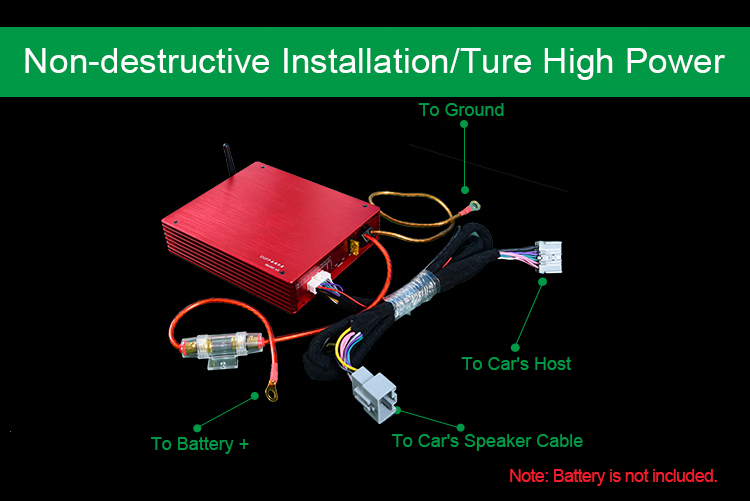

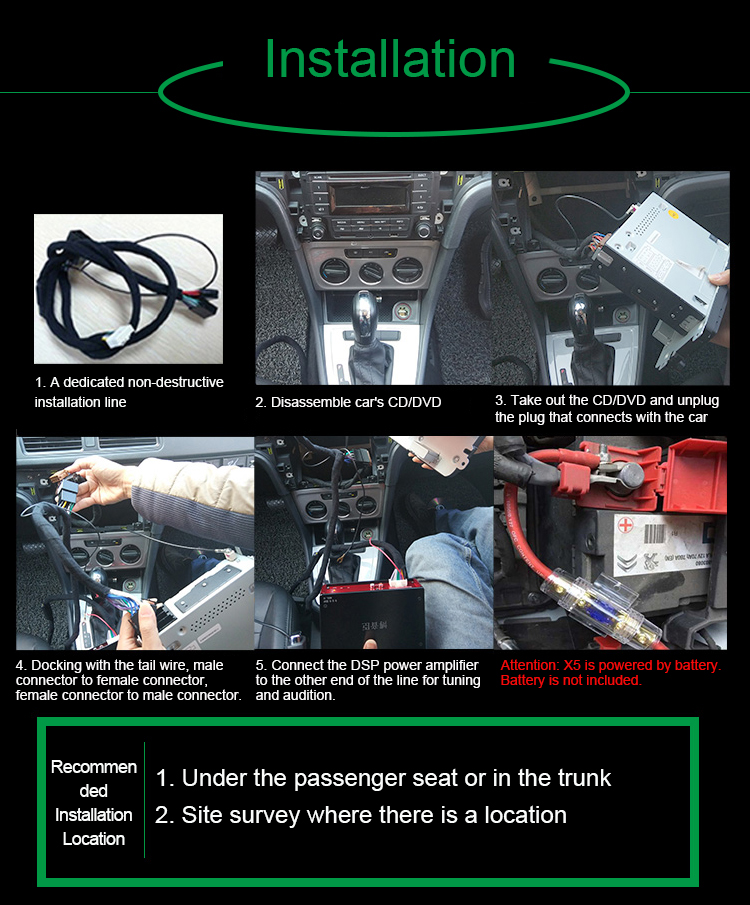

- Non-destructive installation: no need to change the wiring. At the same time, it has sound quality processing and sound effect adjustment.

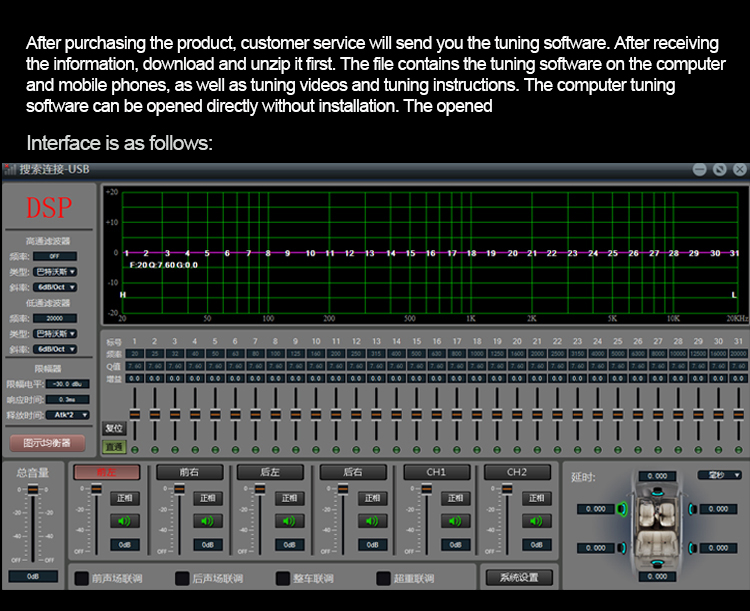

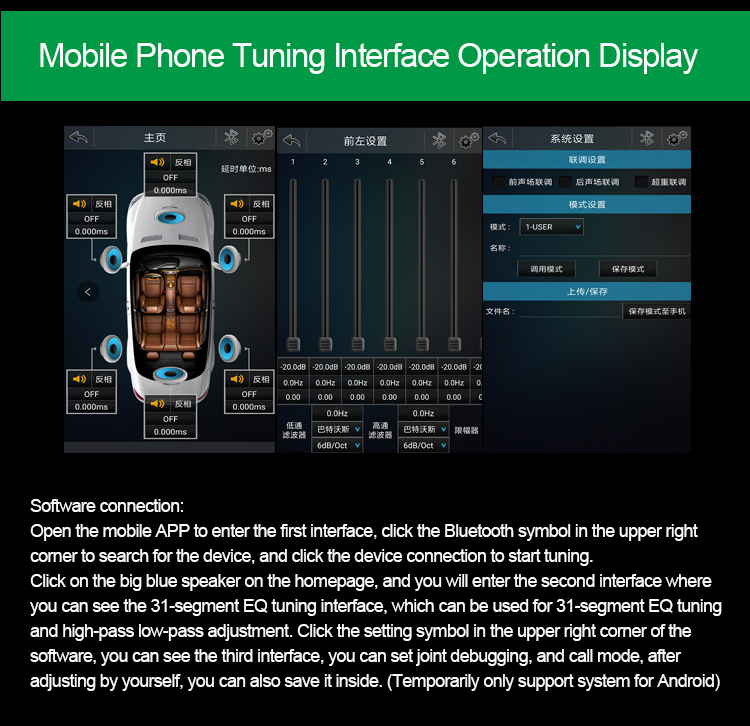

- 31 segments of precise tuning by phone and computer. 31-segment EQ, supports 31-segment tuning, delay adjustment, sound field adjustment and phase adjustment for mobile phones and computers.
- A variety of audio input methods. Bluetooth listening to music, AUX listening to music, easy to solve the problem of the audio source. Support music players, MP3, MP4, mobile phones and tablets
- The combination of the high fidelity of the high-power AB class and the DSP technology, coupled with the sense of stage brought by the delay, will bring a leap in the sense of hierarchy and on-site quality.
- Multiple protections. The product is equipped with overheating, overcurrent, overvoltage, and signal short circuit protection. Power supply short-circuit protection: promptly respond to installation errors to avoid short circuits caused by poor line contact. High temperature protection: microcomputer temperature control, real-time check and record temperature, automatic protection of overtime set temperature. Signal short-circuit protection: automatic and timely response protection for short-circuit caused by poor output signal short-circuit
- Strict quality control. The professional dust-free production workshop ensures the quality of the products. A series of aging tests and vibration tests are carried out before shipment.
- External Bluetooth antenna makes the signal more stable and improves the music experience
- Delay adjustment principle: The distance from each speaker to each seat is different, so the sound will be delayed. Let the sound arrive at the same time through delay, creating a stage effect.

Package Included:
- 1 x Set of Power Amplifier

Note:
- Battery is not included.
- A 1.5m dedicated cable is included. If you fear that the tail wire is not long enough, please contact us to buy an extended cable 1M.

Product Operations:

Active frequency division: high-pass filter, commonly known as cut point, set a frequency point. Passes above the frequency point, cut off those below the frequency point. There are types and bevel options available, and the full-frequency power amplifier does not need to be set.

Active frequency division: low-pass filter, commonly known as low-cut, set a frequency point. Passes below the frequency point, cut off those above the frequency point. There are types and bevel options available, and the full-frequency power amplifier does not need to be set.

Limiter: also called a compressor. Limit the size of the power output and improve the large dynamic effect, generally the default is enough.
