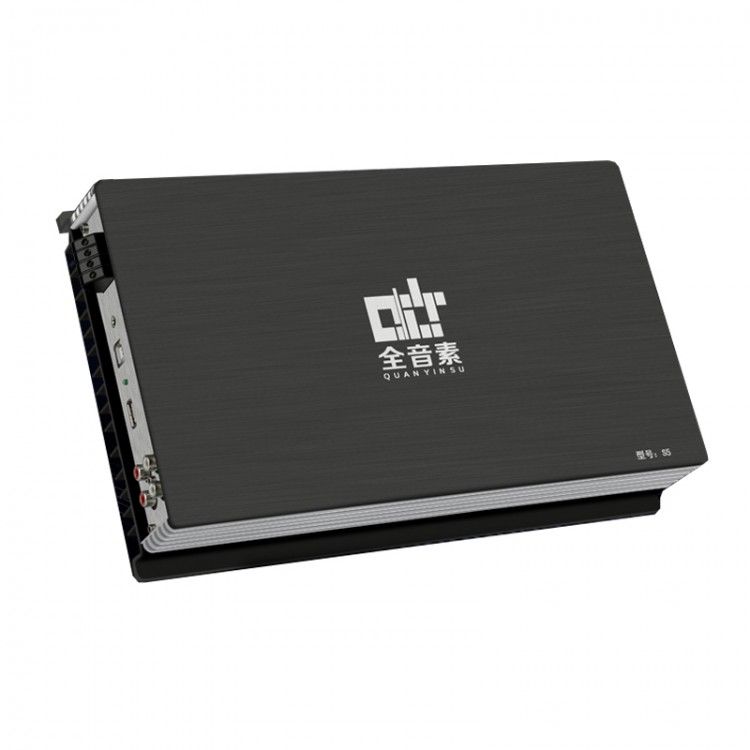

S5 8-Channel Car DSP Amplifier Output 200W*6 Lossless Audio Processor For Car Audio Modification

S5 8-Channel Car DSP Amplifier Output 200W*6 Lossless Audio Processor For Car Audio Modification

Features:
- 8 channel outputs, 31 segments of tuning

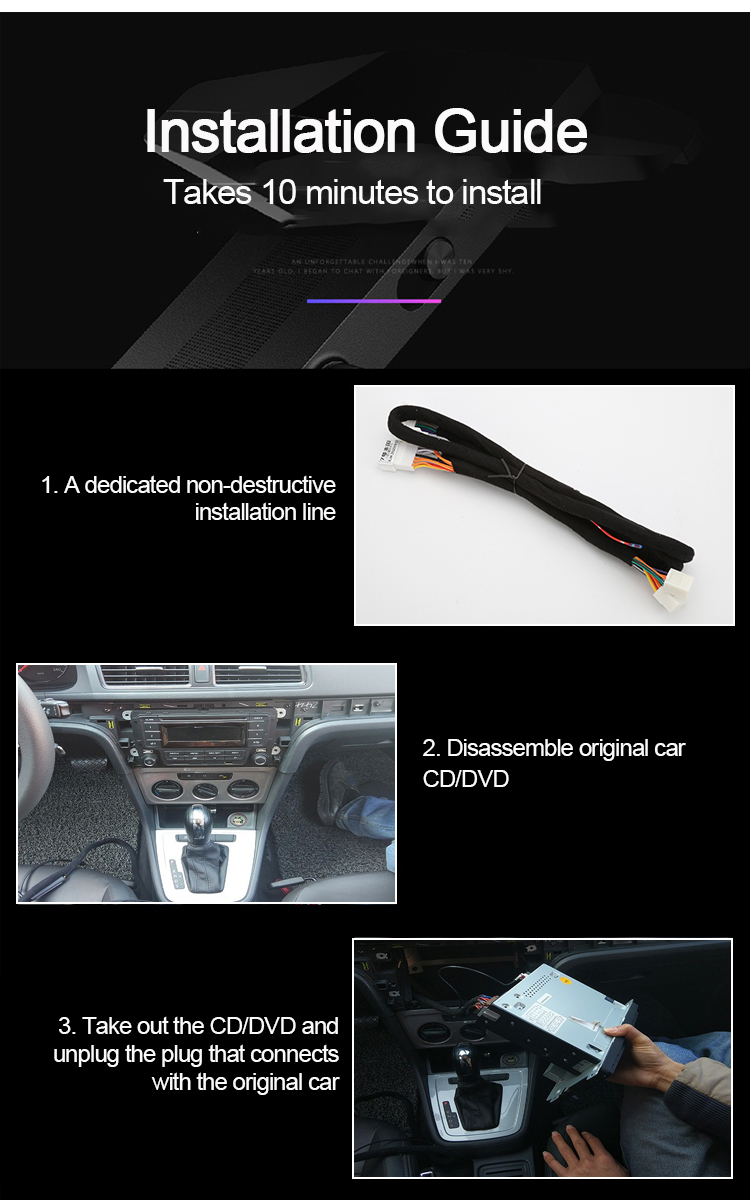

- Non-destructive installation for vehicles

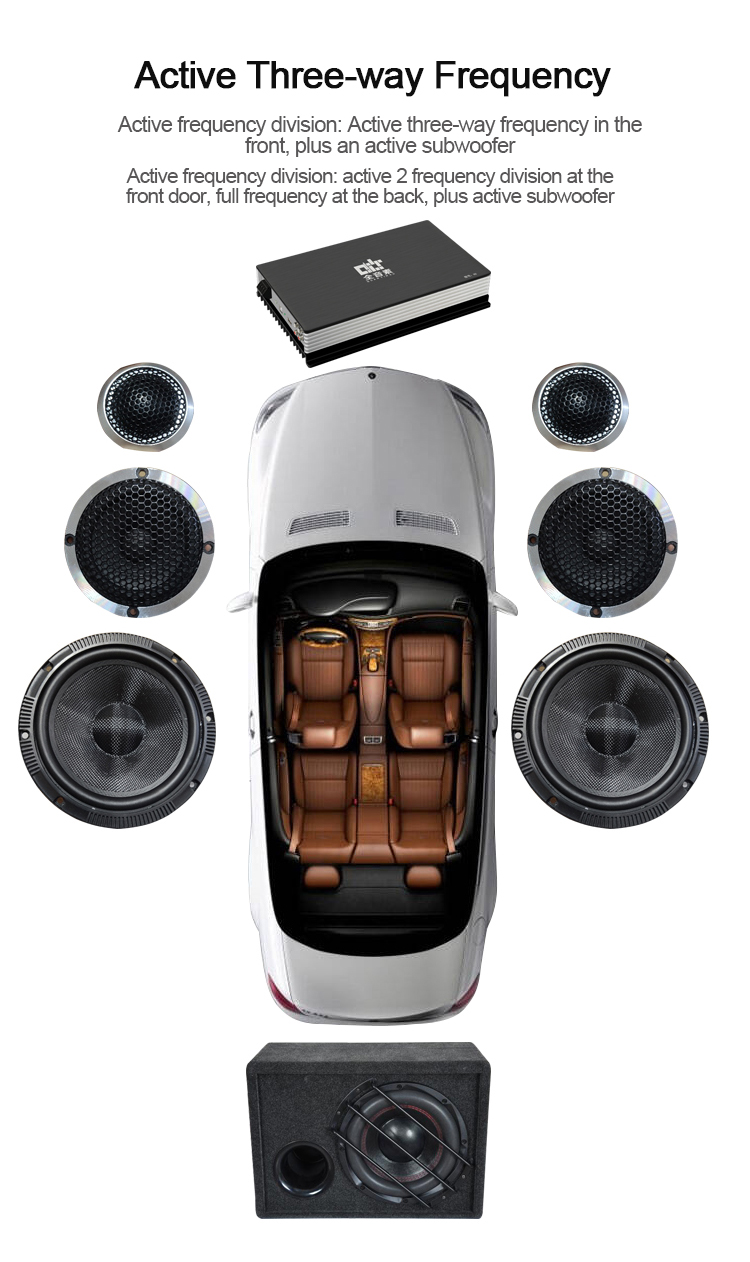

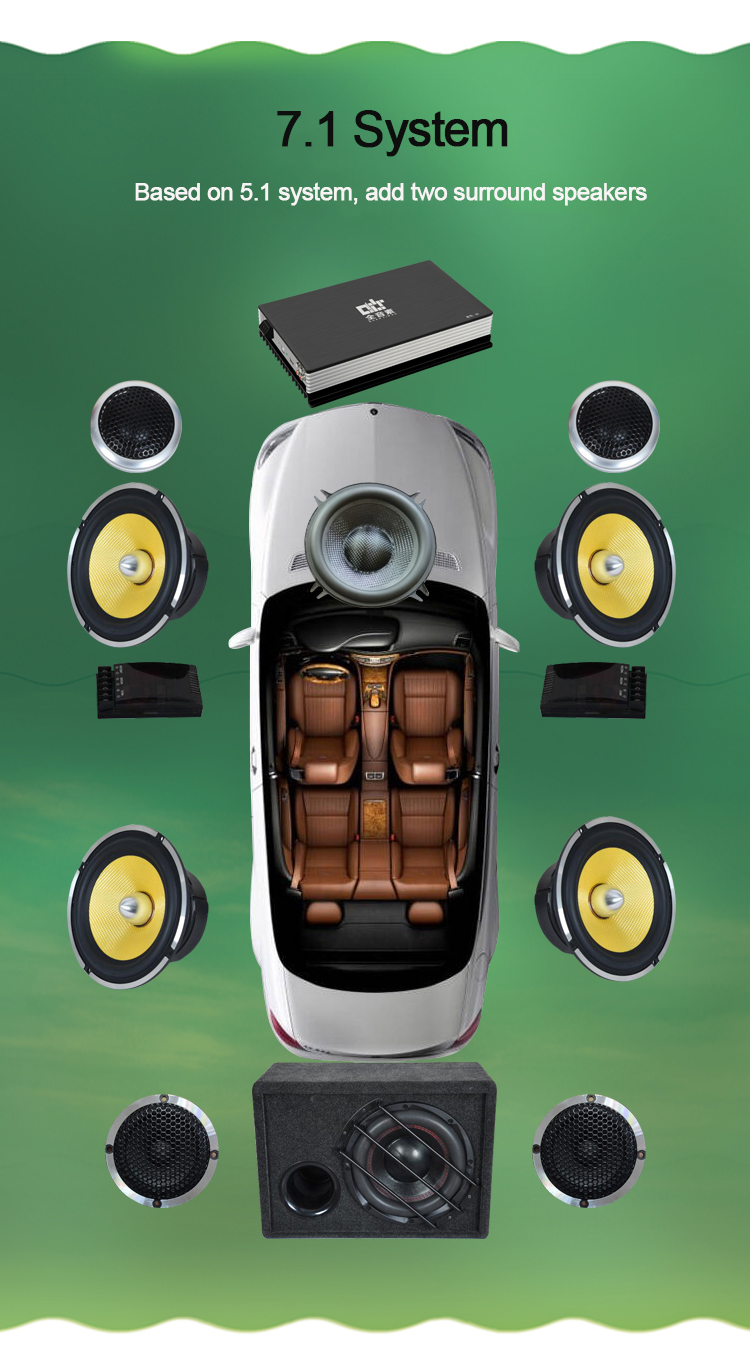

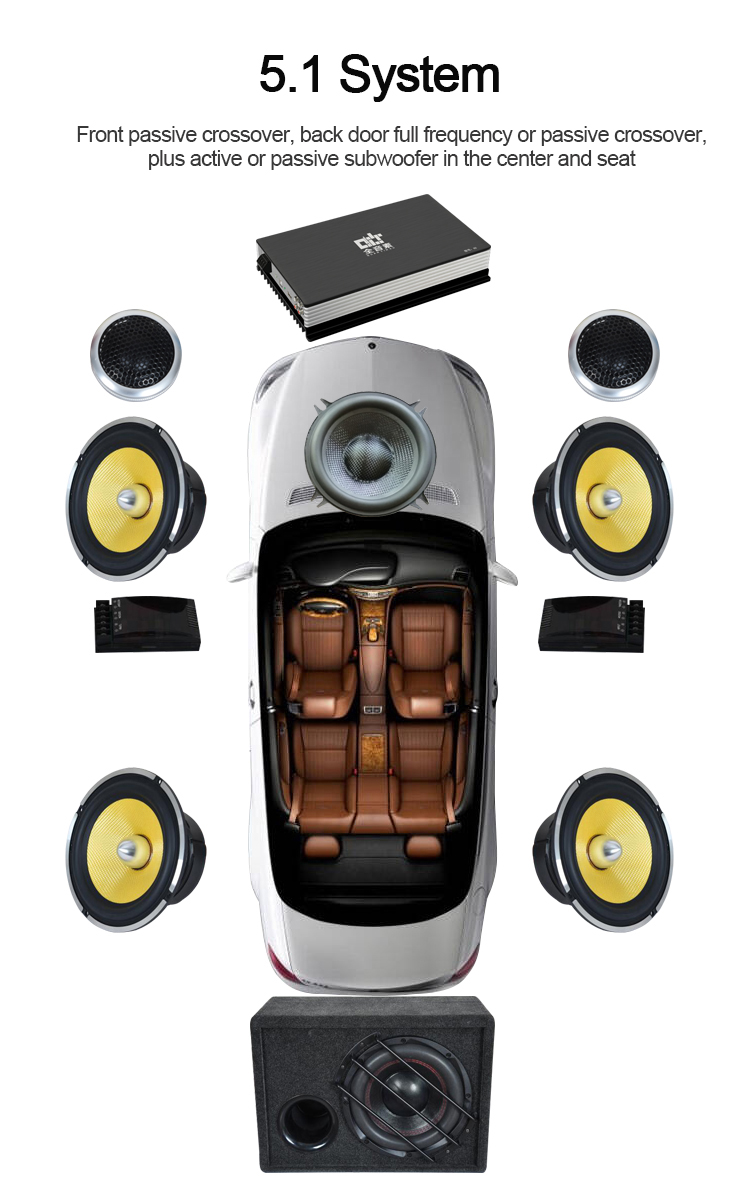

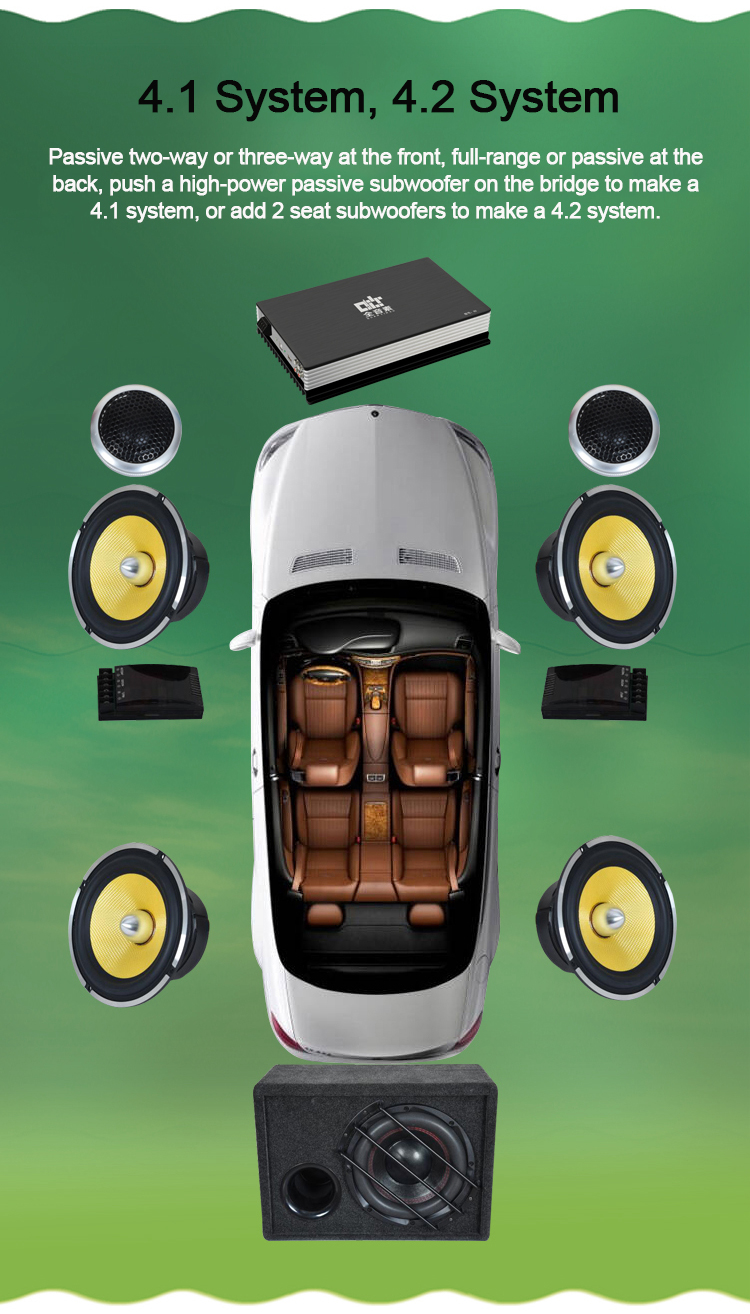

- Competition class AB DSP: Lossless modification: 4.1, 4.2, 5.1, 7.1 system; modification of active 3-way system
- Imported enthusiast components provide guarantee for extraordinary sound. The main materials are made of better imported components, such as high-power amplifier tubes for ON Semiconductor, for NCC, capacitors for ELNA, OPA213 imported op amp, MOS tubes for ST, DSP chips for ADI, Japanese chips for AKM, so a beautiful sound is guaranteed
- Support U disk playing, Bluetooth playing. When the U disk is plugged into the S5 DSP power amplifier to play, the S5 is equivalent to a host, and is equipped with a 360-degree remote control, which can remotely control next/previous songs, volume and sound source switching. With mobile phone APP to display remote control songs, it is a powerful high-definition playing host, a better sound source independent of the original car host.

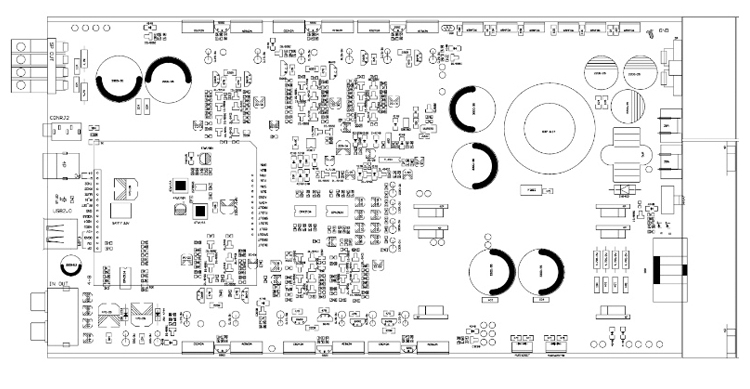

- Better than normal DSP by comparing their circuit boards
- Using NJW0302/NJM0281 amplifier pair transistors
- The sound is very dense and granular. The sound is more mature, flexible, and has a certain sense of moistness and calmness. The control of transistors is amazing, and the performance of the final stage working current is equivalent when the operating current is changed consistently in a large range. There will be no obvious change in tone due to the size of the operating current.
- It supports U disk input, mobile phone AUX input, and 5.0 Bluetooth input, which can solve the problem of audio source sound quality.
- Easily push large subwoofers

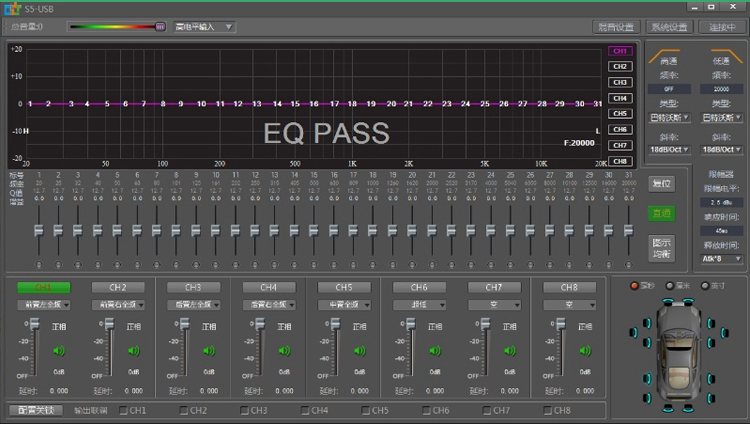

- Personalized audio customization: audio processing, adopting 8-channel output design in audio processing, mainstream 31-segment tuning function, active crossover, delay, phase and other adjustment processing, to better create suitable speakers for different styles and different cars Better effect of internal sound environment.
- Quanyinsu DSP improves sound quality, sound effect, power, tone, etc.
- Quanyinsu S5 = host + DSP + 2pcs large power amplifiers. HiFi level power amp, Bluetooth input, 31-band EQ tuning, professional DSP processing chip

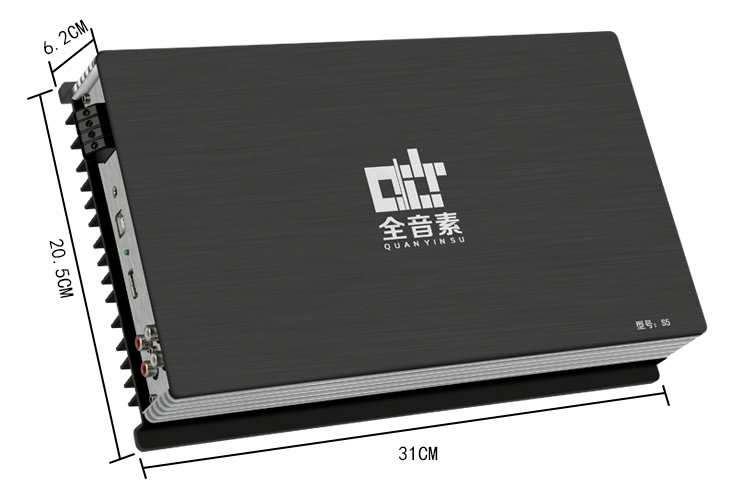

- All-round audio processing, 3D stereo surround, eight-channel output, 31-segment EQ adjustment, Bluetooth input, high-precision tone reproduction, clear and thick sound quality. Product weighs about 3kg
- It adopts 6ch high-power high-level outputs and 2ch low-level outputs. In the DSP field, DSP products with AB-class design are basically not as powerful as S5.
- Safety and stability test: The product is equipped with overheating protection, overvoltage and overcurrent protection, power short circuit protection, signal short circuit protection, after a long-time aging test, functional test and other tests

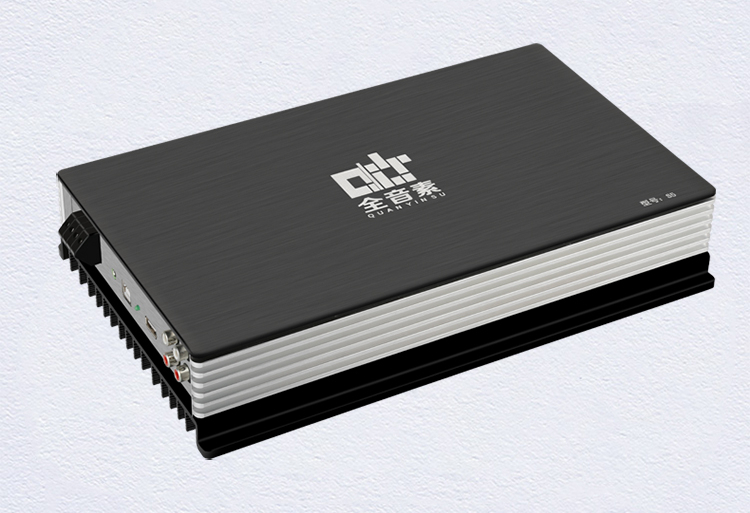

- Exquisite workmanship: all aluminum body heat dissipation shell
- Strong applicability: applicable to 99.9% of the models on the market
- Personalized audio customization. When placing an order, please inform us of your car model, the system and sound conditions to be changed, we will input different sound data for you according to the sound conditions of your original car, and you can use it directly after installation. After purchasing the product, customer service will send you the tuning file. After receiving the information, download and unzip it first. The file contains computer tuning software and mobile phone players, tuning videos and tuning instructions. The computer tuning software can be opened directly without installation.

Specifications:
- Power amplifier type: AB class
- Output: 6 channels of high level + 2 channels of low level
- Output power: 200W*6 way (can be bridged)
- Bluetooth: 5.0
- Working voltage: 11-15V
- Op Amp IC: OPA2134 (made in Malaysia)
- Frequency response range: 20Hz-20KHZ
- Remote control: 2.4GHZ (360-degree remote control)
- Impedance: 2-8Ω
- MOS tube: For ST
- Signal to noise ratio: 108DB
- Capacitance: For ELNA, NCC
- Distortion: 0.01%
- DSP chip: For ADI (produced in the United States)
- Channel: 8 channels
- Amplifier tube model: NJWO302G/NJM0281G for ON Semiconductor (imported from the United States)

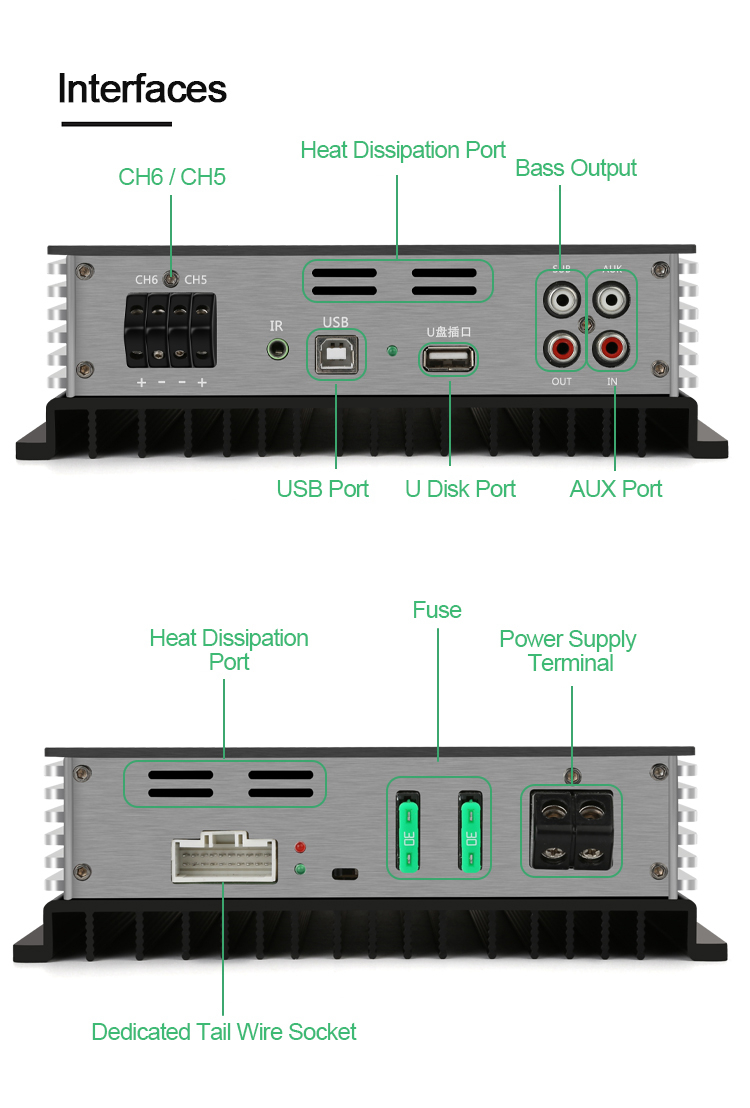

- Input mode: 4 channels of high level/2 channels of low-level AUX/Bluetooth/U disk

Package Included:
- 1 x Set of Power Amplifier

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
- Battery is not included.

Misunderstandings about Car Audio:
1. It is not powered by battery alone without boosting, but it is said to be high power.

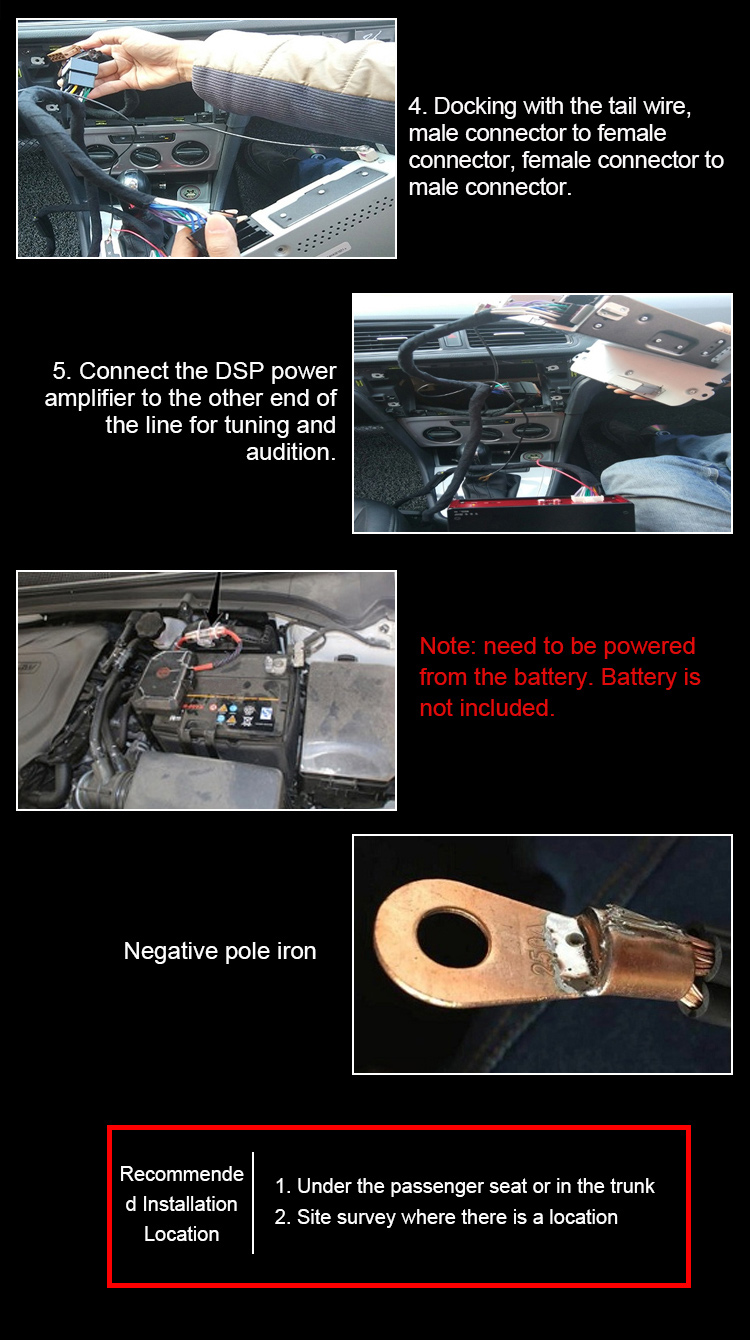

At present, most DSP power amplifiers with dedicated lines are for special cars, and car and the original car host share power supply. Because the power cord of the original car's main engine is very thin, high current cannot pass, so it can't achieve high power. The original car battery has only 12V. Therefore, it is necessary to boost the voltage to increase the voltage, and the boosted DSP circuit board will have a transformer, so the judgment of whether it is a high-power product depends on whether it is boosted and whether the battery is connected to the power supply.

2. It is not safe to connect electricity from the battery.
Many car users are worried that it is unsafe to connect the battery to the power source. It is not true. The battery-powered DSP is independent of the original car system in terms of power supply. Even if the wiring is wrong, it will not affect the original car. Instead, the battery is not connected to the power source. DSP, because it shares the power supply with the original car host, since it is shared, there must be a probability of influence. For some rarely used models or new cars, if the wiring is wrong, the positive and negative poles will be inverted, and the insurance will be burned and even the host will be burned separately. DSP powered by battery is safer and more stable.

3. Power is too large to bear for loudspeaker line.
The original car speaker cable can bear it. The principle is as follows: DSP's wiring harness has a power cord and a speaker cable. The original car 12V is fixed, so in the case of high power, the power cord will bear high current, so the requirements for the power cord are relatively high. This principle is like a home There are many electrical appliances and high power, so thick copper wire should be used at this time. The working principle of the speaker cable is just the opposite. After the power supply is boosted, the speaker cable becomes a high voltage and low current, so the power cable is not demanding. The principle is like, you take a very thin wire On the 220V power strip, its voltage is still 220V, and the speaker wire voltage is only a few tens of volts, so the audio has high requirements for the power cord in terms of safety, but not the speaker wire.

4. With such a large power amplifier, will it burn my speakers?
The loudspeaker will not burn if the amplifier power is high, and the loudspeaker will burn only if the amplifier power is small. Under normal circumstances, the power amplifier power is required to be greater than the speaker power, so that when dealing with ultra-high or ultra-bass, it is enough to meet the needs of instant peak power. It's similar to the speed of a car. The car can run at 200 speeds. It doesn't mean you will run at 200 as soon as you hit the road. It depends on the road conditions. On the contrary, if the power amplifier power is small, the speaker power is large, and the power amplifier has no power margin, when the music peak comes, harmonic distortion will be generated due to overload, light sound quality is poor, and heavy sound quality is burnt.

5. The more expensive the amplifier, the better.
The right one is the best, and the expensive one many not the best.
