X3 31-Segment Car DSP Amplifier Car Audio Processor Output 90Wx4 For DSP Car Audio Modification

X3 31-Segment Car DSP Amplifier Car Audio Processor Output 90Wx4 For DSP Car Audio Modification

Specifications:
- Model: X3
- Output power: 90W*4
- Signal to noise ratio: 108db
- Frequency response: 20HZ-20KHZ
- Supported models: 99% models on the market
- EQ adjustment: 31-segment EQ adjustment
- High-low turn: built-in high-tech low
- Working voltage: 12-15V
- Bluetooth: version 4.2
- Distortion: 0.01%
- Output impedance: 2-4 ohm
- Product size: 150*120*45mm

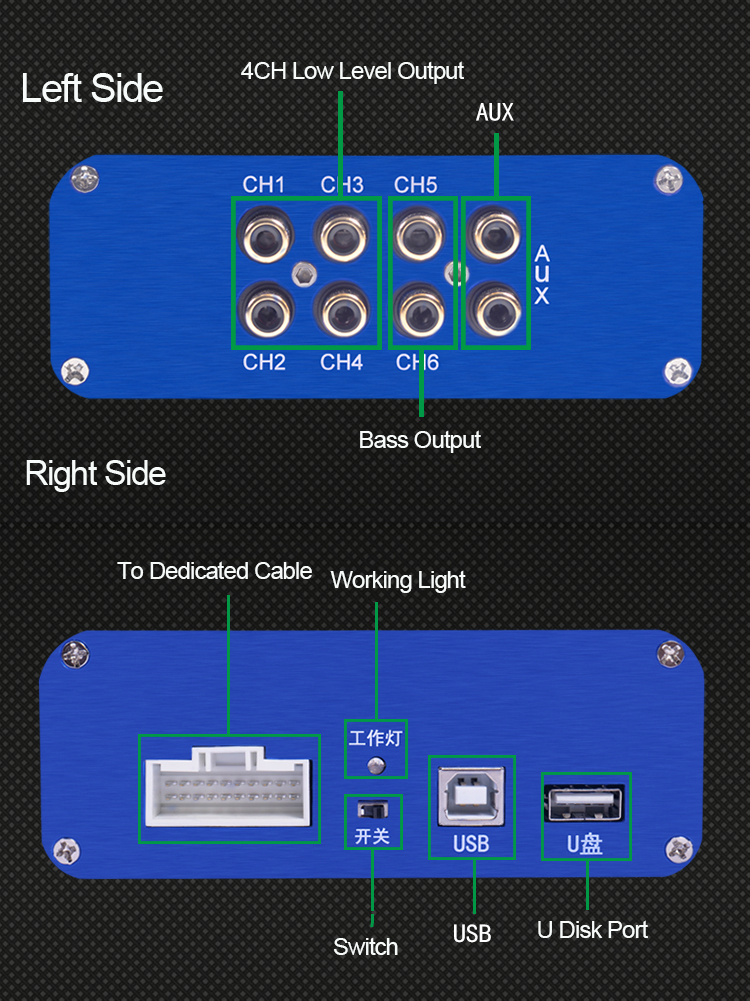

- Audio input: Bluetooth, AUX, U disk
- Stored sound effects: 6 built-in sound effects
- Sound quality processing chip: 4-core dual module

Features:
- Professional designers are more familiar with original car audio problems. In terms of product stability, current sound control, and sound quality effect processing, our product is more suitable for original car audio.
- HIFI sound quality + realistic sound effects. Imported audio processing chips and class AB power amplifier chips with good reproducibility are used, and the new 31-segment EQ precision tuning is used to create high-end car audio.
- Premium components. The fourth-generation master DSP chip for ADI: ultra-high-speed double-precision floating-point operations. High-power Class AB power amplifier chip for ST: pure sound quality and friendly to ears. Imported audio decoding IC, lossless sound quality decoding. Op amp for JRC4558.
- Better solve sound source. Class AB fidelity is better. From the time the sound source signal is collected to the sound is played back on the speaker, it will experience hundreds of components, which will cause signal delay and loss. Such subtle changes will cause the sound quality to be blurred. Our products compensate and adjust the delayed sound signal to make the sound quality of the host clearer, and the class AB amplifier has higher fidelity. At the same time, it supports mobile Bluetooth, UAX and U disk lossless input, which completely solves the sound source problem. Support car host playback, Bluetooth connection, AUX playing, U disk playing. U disk supports formats: MP3, mav, wma, flac, ape.
- 31-segment EQ precise tuning, personalized tuning sound is richer and more delicate.

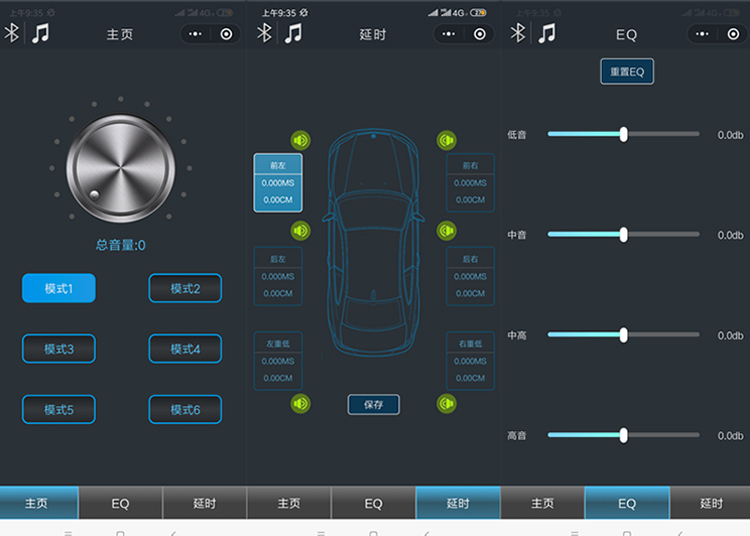

31-band EQ tuning, high and low pass and other sound effect adjustment processing functions, to compensate for the high, medium and bass effects. According to the configuration of different cars, the space in the car, users' listening preferences, the appropriate car configuration can be adjusted, and the sound effects of personal listening preferences can be adjusted to better match the different audio units. Professional computer tuning, mobile phone APP tuning.
- Delay adjustment, immersive sense of presence. Each channel can be adjusted separately, and the delay effect can be set, so that the stage is truly presented in front of you. The sense of hierarchy and presence will be improved.
- Optimized sound source performance, transparent treble, steady bass, more three-dimensional sound field, and surround feeling.
- Power amplification, better bass dynamics, better stimulate the potential of the original car audio. In terms of power, safety and stability are given priority, and the power is bigger and bigger on this basis.
- More stringent testing standards. Before shipment, the product has undergone comprehensive functional tests and aging tests to ensure more stable product performance.

Package Included:

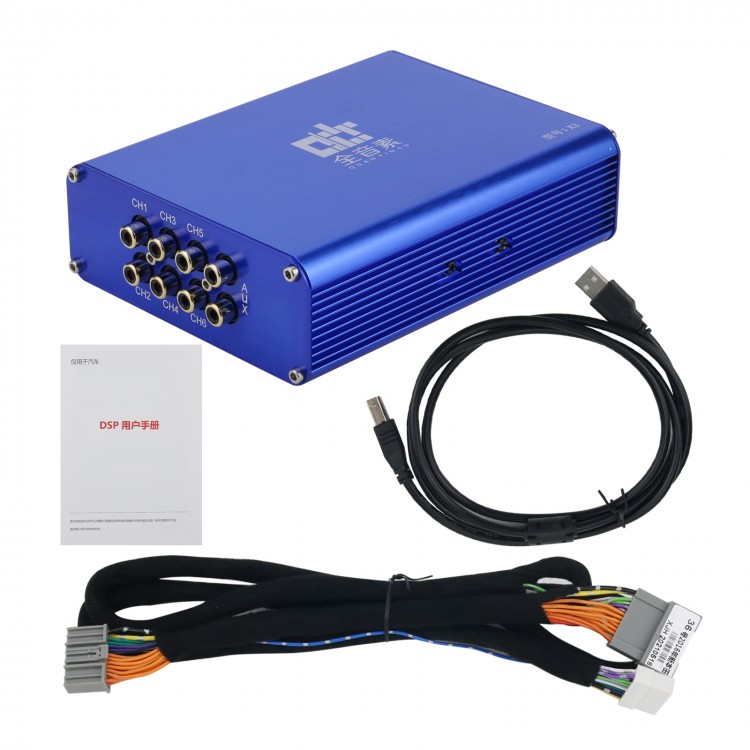

- 1 x Set of Car DSP Amplifier

The 31-band EQ can be adjusted separately for the middle, high and low sounds to bring up the appropriate sound effects. The delay adjustment can adjust the sound to the middle position of the center console to create a sense of stage. You can adjust the volume, EQ, and phase of each speaker separately. You can adjust the low-pass and noise gate.
