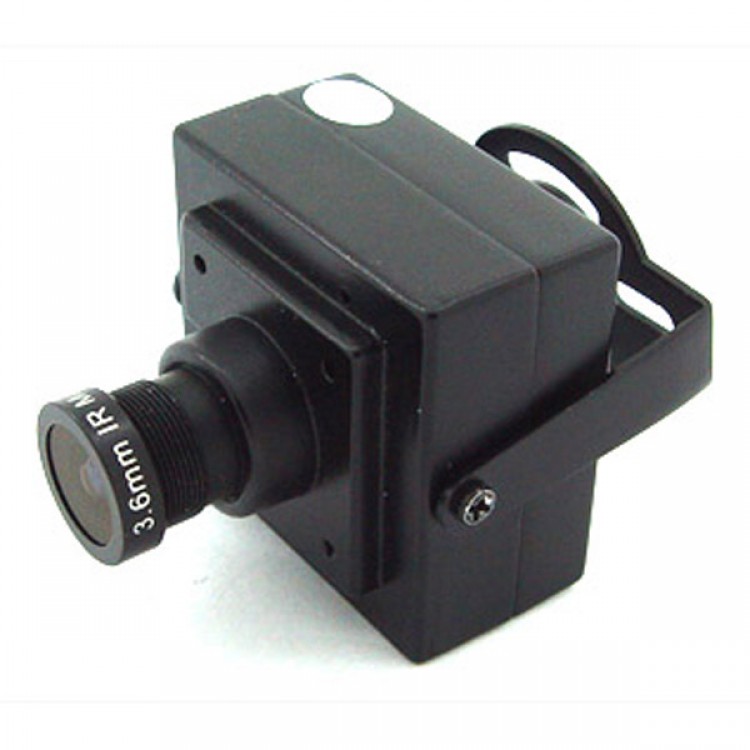

FPV 128-bit Wide Dynamic 540-line High Definition FPV Camera DSP System for Photography Use
Description:
- Compact size, light weight, high definition, rich-function.
- Recommended by FPV enthusiasts.
Specifications:
- FPV 128-bit Wide Dynamic 540-line High Definition Camera
- Sensor: 1/3 DPS
- Video format: PAL, NTSC compatible
- Effective Pixels: PAL:720×540;NTSC:720×540
- Audio: No
- Horizontal Resolution: 540 lines
- Vertical Resolution: 460 lines
- Power Input: 12V ±5%
- Working power: 2W (max)
- SNR: > 48dB
- Dynamic Range: 101dB (typical),120dB(max)
- Control mode: OSD screen manual and soft-touch button control
- Area cover function: yes
- White balance: AWB/ATW/ATW LIMIT/ATW DESAT/MANUAL
- Color temperature: 2000K to 11,000K
- Auto-gain: adjustable
- Gamma adjust: adjustable
- Working temperature: -10℃~+50℃ RH90% MAX(NON-CONDENCING)
- Video resistance: 75Ω
- Video output: 0.8-1.5Vp-p (signal amplitude adjustable)
- Shutter speed: automated 1/50-1/10000 sec
- Minimum illuminance: 0.5Lux/F1.2; 0.08Lux/F1.2 (slow shutter mode)
- Lens: 3.6mm
- Dimension: 36(W)×36(H)X28(D) mm
- Weight: 83g
Includes:
- 1 x camera
- 1 x wire
