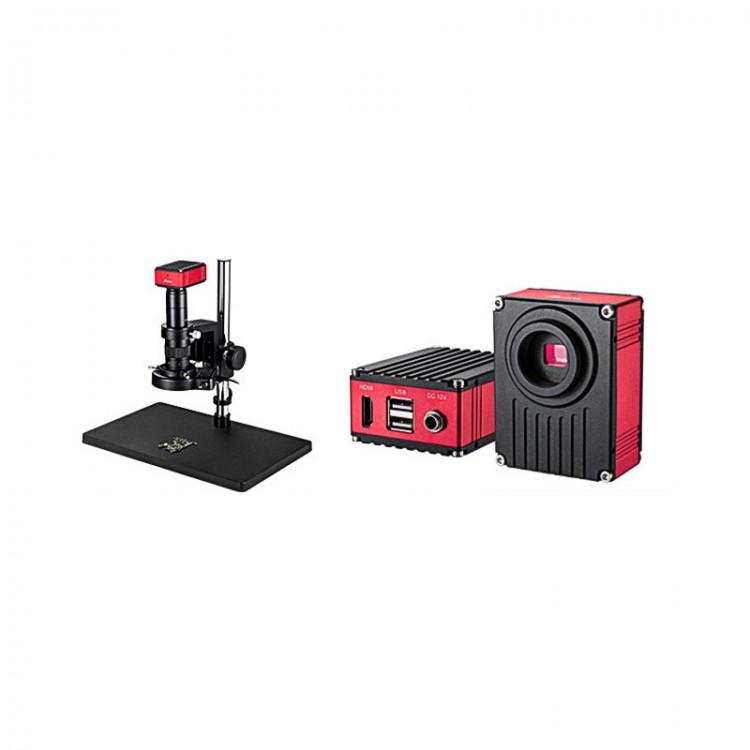

ZZW-4800HU 4K HDMI-compatible HD Intelligent Measuring Camera Industrial Electronic Microscope for SONY Sensor

ZZW-4800HU 4K HDMI-compatible HD Intelligent Measuring Camera Industrial Electronic Microscope for SONY Sensor

Description:
- This product is suitable for appearance testing of hardware, precision components, connectors, blades, PCB circuit boards, FPCs, textiles, liquid crystal screens, various visual industrial testing, medical research, and other related products. It has the characteristics of clear imaging, strong three-dimensional sense, long working distance, and wide field of view. It is specially designed with various lighting devices, LED adjustable circular light source, and fluorescent circular light source. There is no need to connect an external computer host, it can directly connect a CCD camera and an HDMI-compatible high-definition monitor.

Features:
- High definition video recording, simultaneous playback of audio and video;
- Dual CPU processing, powerful performance, smooth and delicate images, extremely fast operation response speed, and powerful software functions;
- For ARM A17 quad core processor with 2GB DDR3 memory runs smoothly;
- HDMI-compatible interface 4K or 2K multi selection output, adaptive 4K or 2K mode switching;
- Real time image transmission through the network port, extended migration algorithm to PC, and real-time interaction, which is very convenient;
- Equipped with two custom I/Os;
- USB2.0, USB3.0, and Gigabit Ethernet multiple selection interfaces, with USB3.0 interface for faster recording or export speed;
- Real time status signal light to check the working status of the camera at any time;
- The camera is equipped with a newly developed measurement system that can export Excel data.

Specification:
- Lens interface: C/CS interface
- Sensor type: for SONY sensor
- Video interface: HDMI-compatible interface
- Resolution: 4K (3840 x 2160)
- Pixel size: 1.85um x 1.85um
- Target size: 1/2 inches
- Output frame rate: 60FPS
- White balance adjustment: automatic / manual
- Move reference line: supports 0-100 vertical/horizontal lines, color, and position adjustable at will
- Measurement function: measure distances from points, lines, rectangles, circles, arcs, polygons, center to center distances, point to line, line to line, angles, etc.
- Scanning method: progressive
- Image control: adjustable contrast/saturation/clarity
- USB interface: can be connected to a mouse for taking photos, recording, and measuring
- Storage function: photography/video recording/measurement
- Image adjustment: horizontal / vertical
- Color setting: color; black and white
- Language: CN / EN
- Power: DC 12V

Package Included:
- 1 x CCD Camera
- 1 x Continuous Adjustable Zoom Lens
- 1 x Set of Base and Adjustable Bracket
- 1 x LED Adjustable Light Source
