FPV APM2.8 Flight Control with Aluminum Case Integrated OSD 3DR LED XT50 915MH for Multicopter

FPV APM2.8 Flight Control with Aluminum Case Integrated OSD 3DR LED XT50 915MH for Multicopter

Features:
- When the flight control work,it can absorb the working heat,then prevents the hardware aging;
- It shields external interference signal,then makes the flight control more stable;
- It is not easy to destroy when the drone crashs,because the hardness of Aluminum is very good.
- Color: Silver

Hardware:
- Chip:  8bit ATMEGA2560
- Bulid in 3-axis gyro, accelerometer, 6 DoF Accelerometer/Gyro MPU-6000
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties
- Onboard 16 MegaByte AT45DB161D Dataflash chip for automatic datalogging
- Eight Channels PWM Control Input
- Eleven Analog sensors Input
- Eleven Channels PWM Output(Egiht Channels ESC Motors,Three Channels Gimbal Stabilization
- Optional off-board GPS, uBlox NEO-6M,7M,LEA-6H,M8N module with Compass.
- Shielding onboard PPM decoding function, external PPM decoding board or external PPM receiver
- 12C external compass port
- Onboard OSD Function that uav ‘s attitude, mode, speed, voltage. Current. Height. The gas quantity. Star search. Location and other important data overlay the on the image,then pass back the monitor by 5.8G image transmission
- Onboard current voltage sensor
- Onbaord 3DR data transmission module

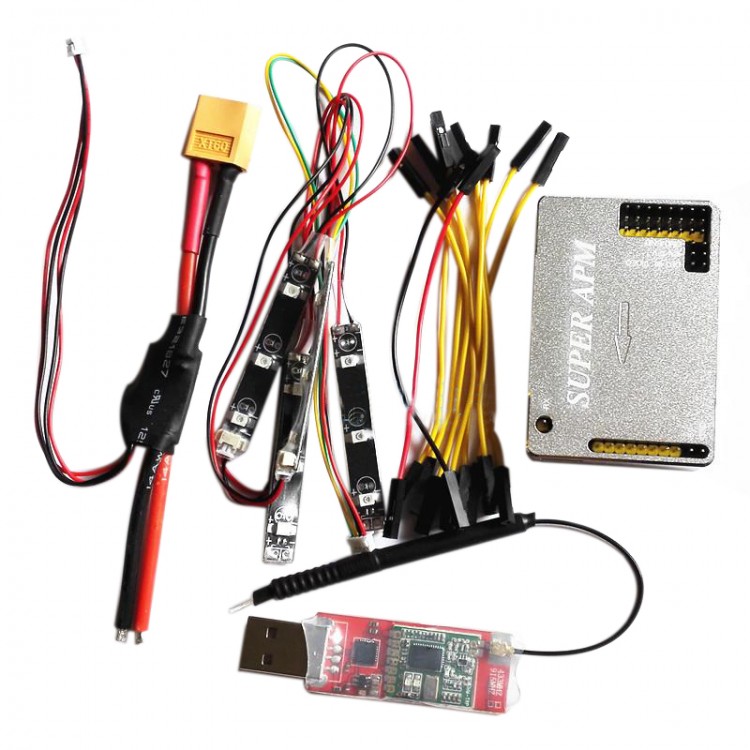

Packing List:
- 1 * SUPER APM with Aluminum shell
- 1 * Amperemeter
- 1 * 915Mhz Ground receiving data transmission (including the antenna)
- 1 * 915Mhz Air module data transmission’s antenna(onboard Air 3dr data transmission)
- 1 * Battery power wire( XT60 Plug )
- 4 * LED Panels,Two Red Panels for APM’s unlock LEDs,Two Blue Panels for GPS Search star LEDs
- Receiver with line
- 8 * Yellow Dupont cable
- 1 * Red Dupont cable
- 1 * Black Dupont cable
