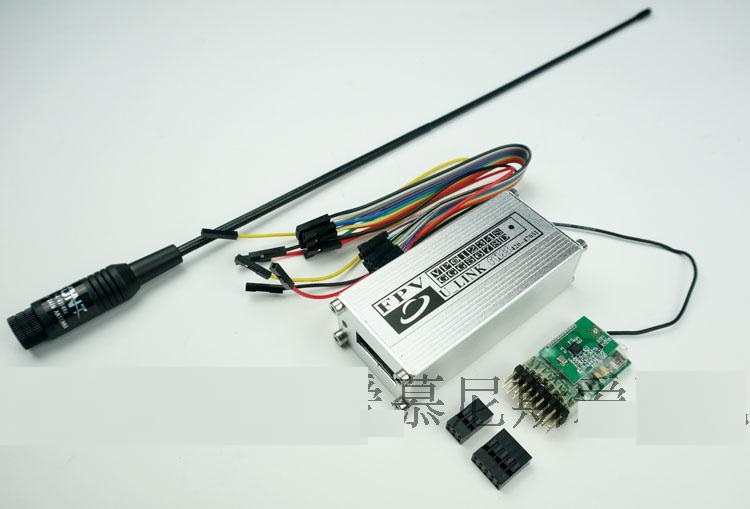

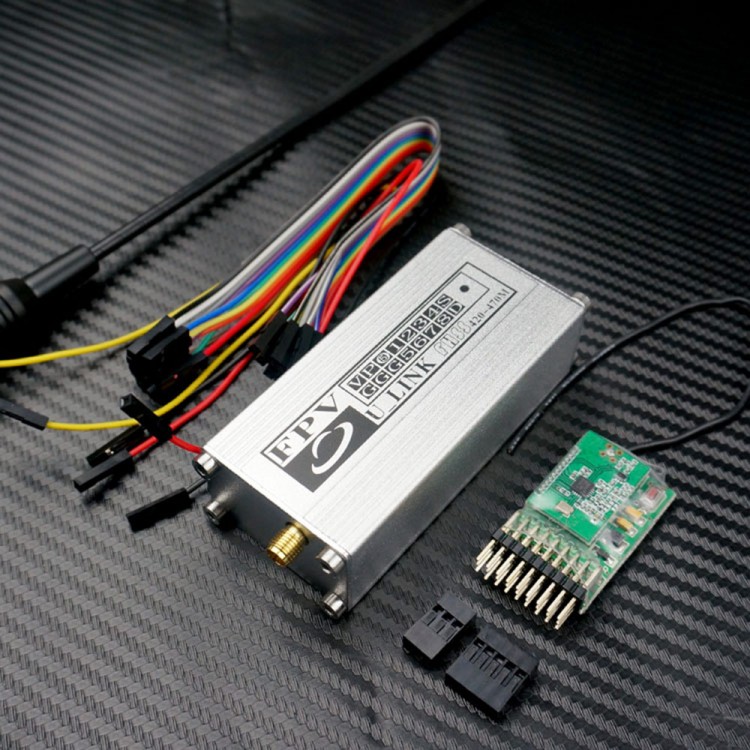

FPV ULINK 433Hz Transmitter Receiver Extended Range 14CH Tx Dual Antenna Rx for RC Quadcopter Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$136.54
  • Price in reward points: 1365 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $133.81 $131.08 $126.98 $121.52 Contact US
Quantity:

FPV ULINK 433Hz Transmitter Receiver Extended Range 14CH Tx Dual Antenna Rx for RC Quadcopter Multicopter

Specification:

- Channel: 14CH
- Far distance extened range remote control system
- Support PPM input, PPM16 input, SBUS input(support FUTABA7008 receiver), PWM input
- Receiver: Dual core and dual antenna
- Support remote control system like JR/ Spektrum

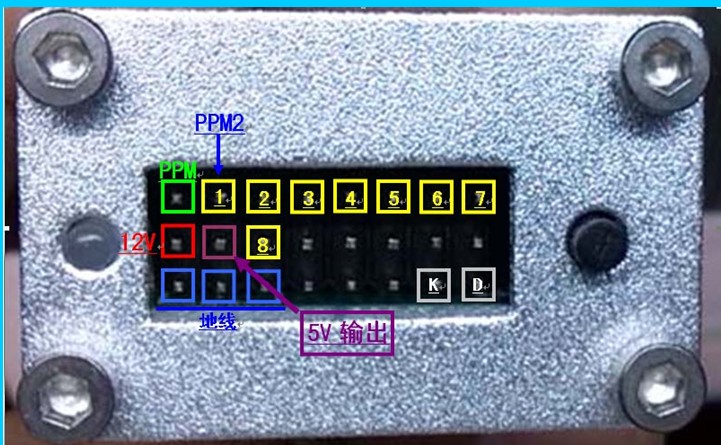

Wiring Instructions:
- G- (GND) The ground wire, to the negative electrode of the battery, the U_LINK 433 provides a total of 3 ground connections for use.
- 12V-(VCC) ,power supply input, actual voltage is 7-14V, to the positive of battery
- PPM-(PPM) to the PPM signal line
- PPM2- PPM signal line, multiplexing with channel 1 of forwarding mode
- 5V output- 5V positive of power supply to the receiver
- 1-8: 1-8 channel input under forwarding mode
- K: power selection
- D: Download, online update selection

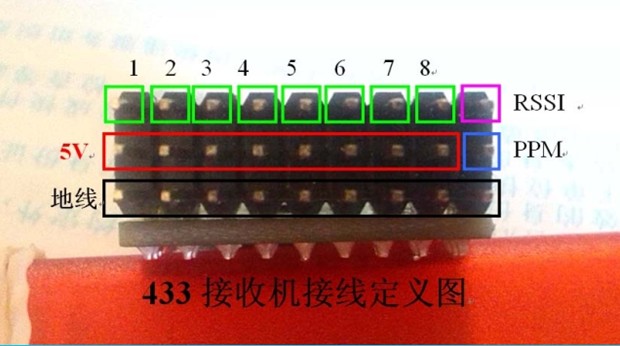

Receiver instructions:

- RSSI: Data packet loss rate, voltage: 0-3.3V.. The higher the voltage, the better the signal (3.3V means 100%, 0V for out of control)
- PPM: Output PPM signal, for APM, DJI , or as computer simulator signal.

Note:
- The antenna of transmitter and receiver should be perpendicular to the ground as far as possible
- The antenna of transmitter can be put high as far as possible
- The receiver keep over 15m far away from flight controller or video devices.

Package List:
