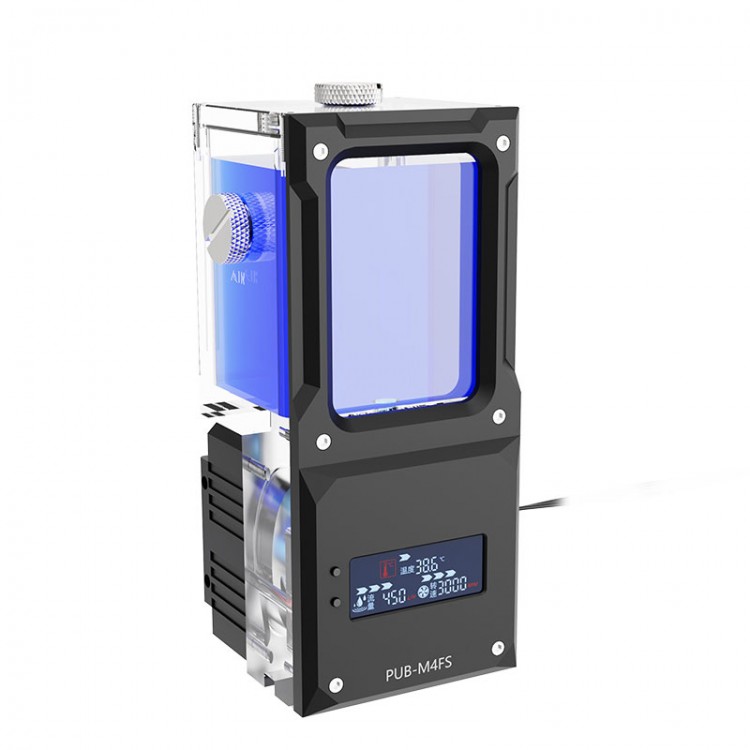

FREEZEMOD PUB-M4FS 175ml Small Pump Reservoir Combo Water Cooling Pump with High-Temperature Alarm
Description:

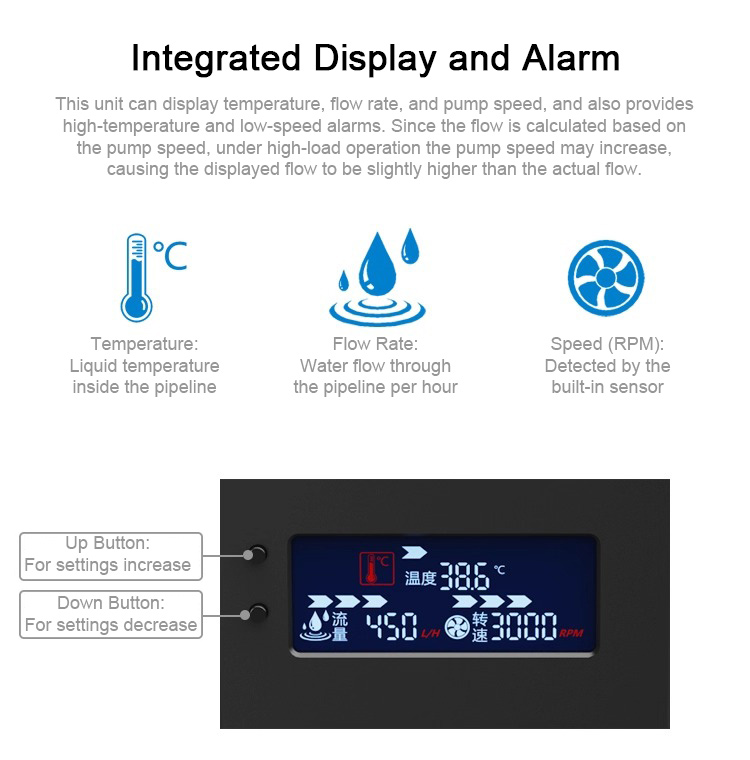

Integrated Display and Alarm
* This unit can display temperature, flow rate, and pump speed, and also provides high-temperature and low-speed alarms. Since the flow is calculated based on the pump speed, under high-load operation the pump speed may increase, causing the displayed flow to be slightly higher than the actual flow.

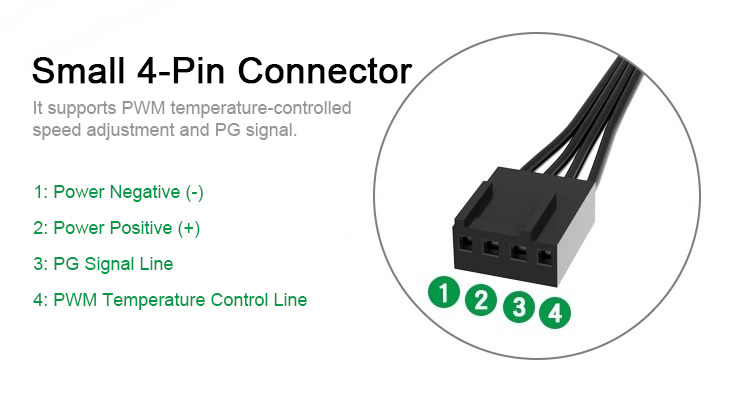

Small 4-Pin Connector
* It supports PWM temperature-controlled speed adjustment and PG signal.

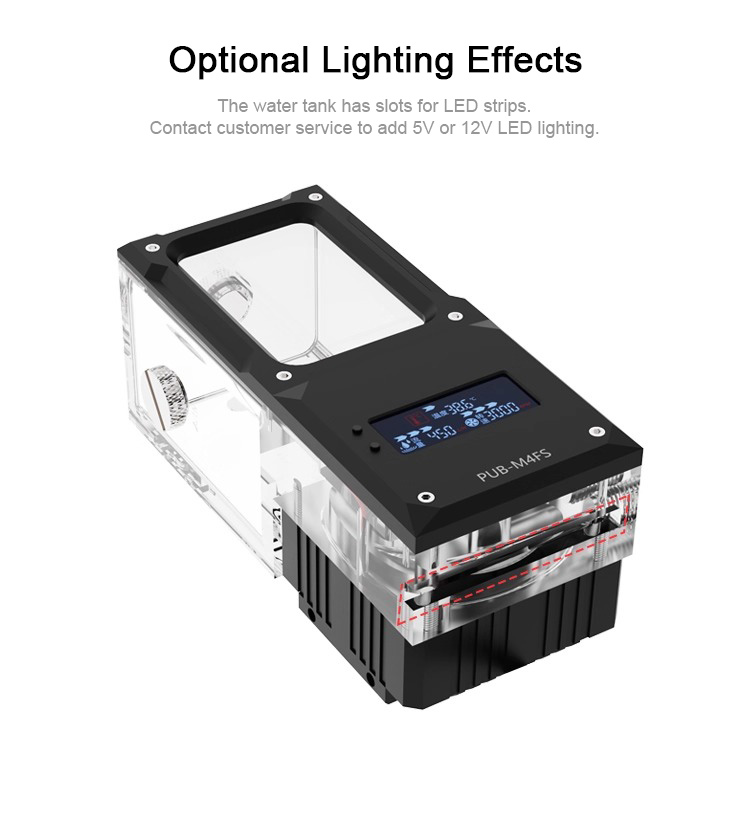

Optional Lighting Effects
* The water tank has slots for LED strips. Contact customer service to add 5V or 12V LED lighting.
Specifications:
* Model: PUB-M4FS
* Full Load Speed: 3500RPM ±10%

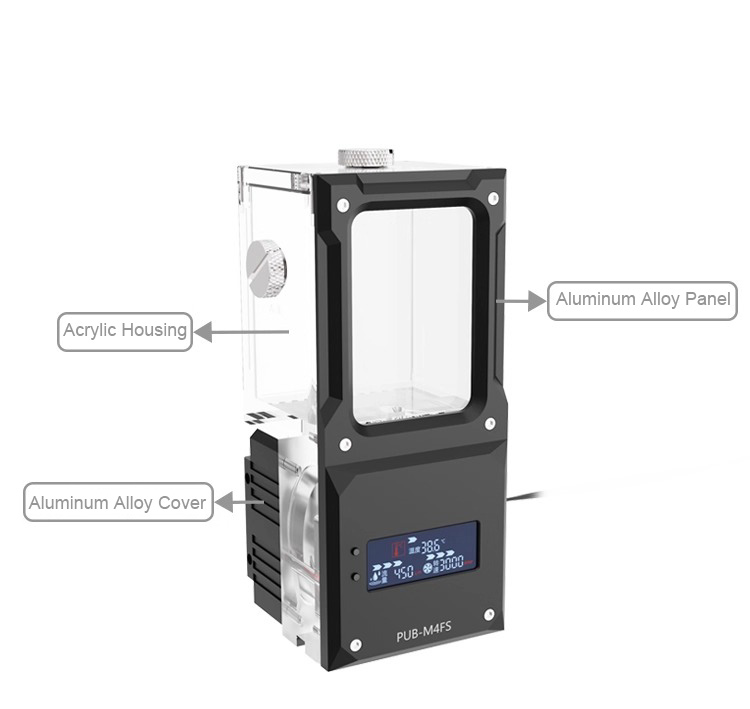

* Material: Acrylic Housing + Aluminum Alloy Cover
* Rated Current: 0.8A

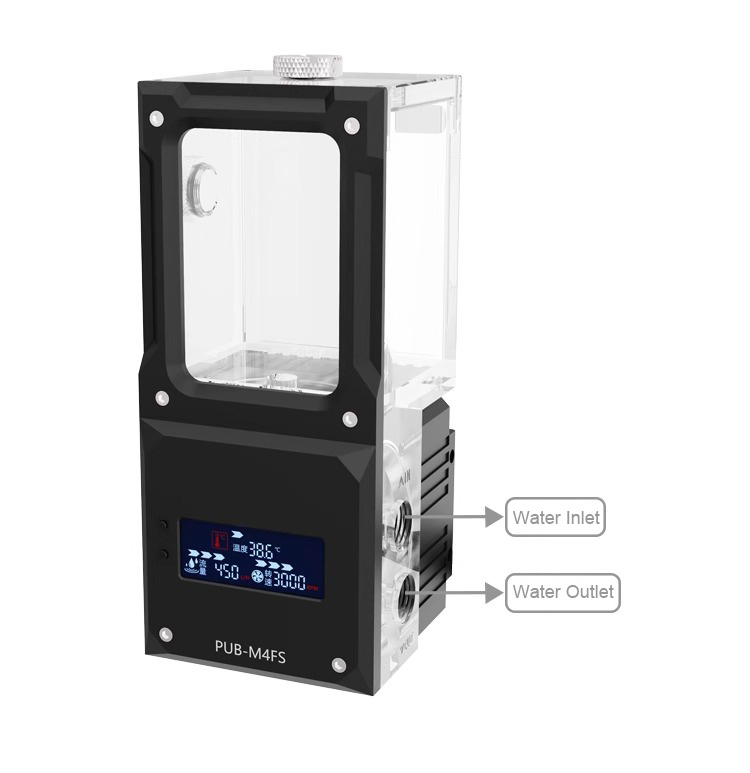

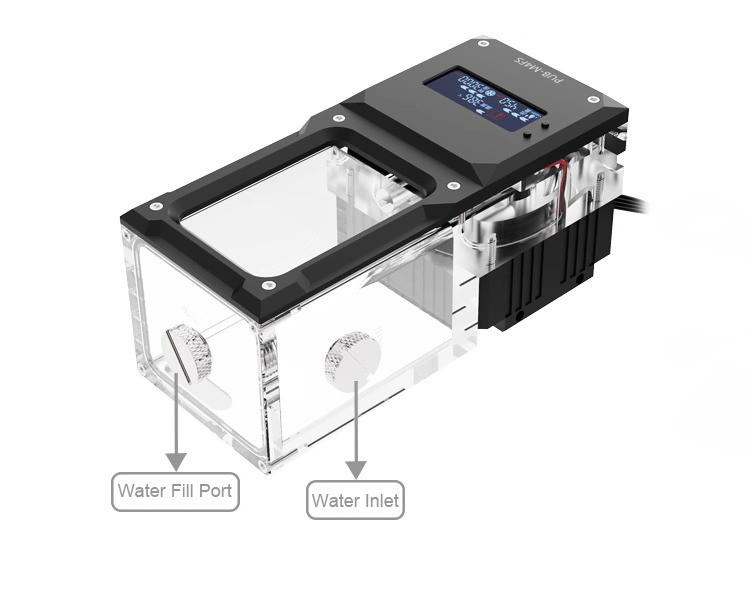

* Interface: G1/4" × 4
* Rated Voltage: DC 12V
* Operating Temperature: 0–60°C
* Pump Power: 9W

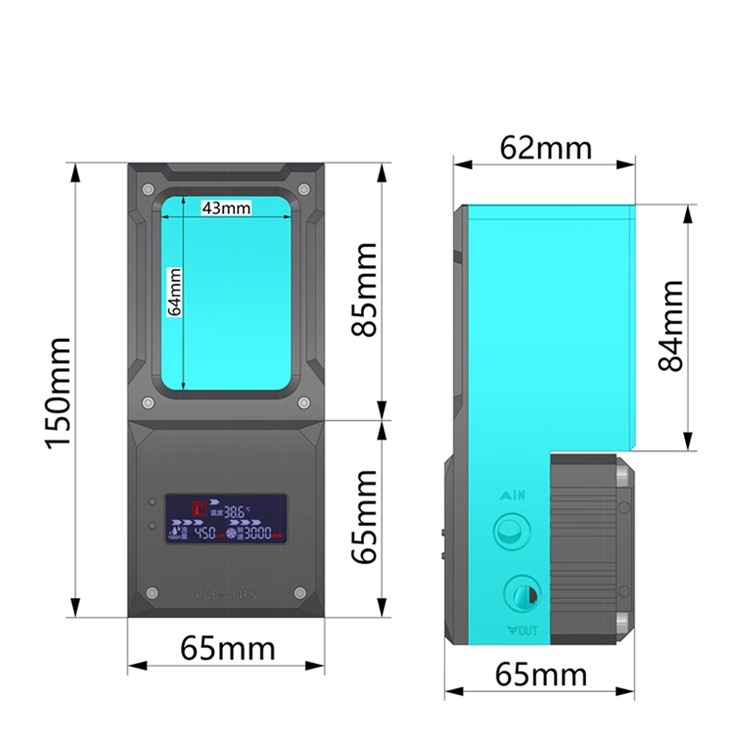

* Dimensions: 150mm × 65mm × 65mm
* Ingress Protection: IP54
* Weight: Approx. 800g
* Pump Head (Max Lift): 3.5m±10%
* Cable Length: 50cm
* Pump Flow Rate: 550L/H±10%
* Capacity: Approx. 175ml
* Power Connector: 4-Pin Mini

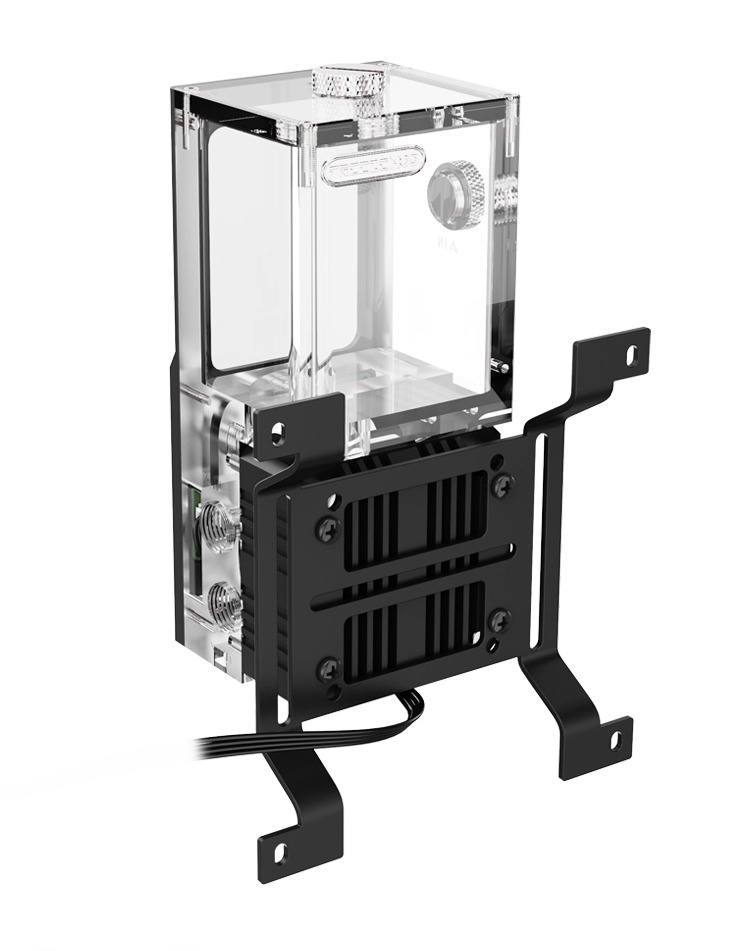

* Accessories: 2 Plugs, 1 Convex Bracket
Packing List:
* 1 × Set of Pump Reservoir
Packaging Details:
* Weight: 1kg
Setting Method:
* Temperature Alarm: Long press the Up Button to enter settings, then use the Up/Down Buttons to adjust the temperature alarm value (range: 0–99 °C, step: 1 °C). Stop operating for 3 seconds to automatically save. A buzzer will sound when the actual water temperature reaches the preset value.
* Speed Alarm: Long press the Down Button to enter settings, then use the Up/Down Buttons to set the speed alarm value (range: 0–8000 RPM, step: 500 RPM). Stop operating for 3 seconds to automatically save. A buzzer will sound when the actual speed falls below the preset value.
* Turn Off Alarm Buzzer: When the numbers on the Speed Display or Temperature Display flash and the buzzer sounds, press either the Up or Down Button to turn off the alarm.
