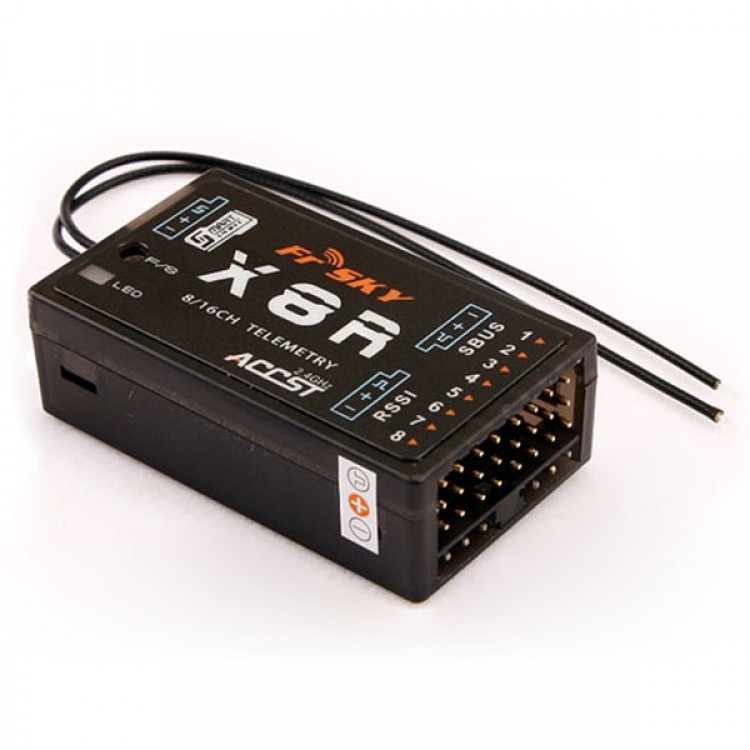

FrSky 2.4G S.Port 8CH16CH Telemetry Receiver X8R with Standard Antenna

Availability: Out Of Stock

  • Price:$42.90
  • Price in reward points: 429 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.04 $41.18 $39.90 $38.18 Contact US
Quantity:

FrSky 2.4G S.Port 8CH16CH Telemetry Receiver X8R with Standard Antenna

New Function:
- More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port, or combine two X8R to become a 16 channels receiver.
- Parallel two X8R to become a 16 channel receiver.
- With RSSI output: analog voltage output (0~3.3V)
- Smart Port enabled, realizing two-way full duplex transmission.

Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, X8R receiver, new hub-less sensors, new Smart Dashboard,etc), serial port user data and other user input/ output devices can be connected without limitations for numbers or sequences at a high transmission speed.

Specifications:
- Dimension: 46.25×26.6×14.2mm (L × W × H)
- Weight: 12.1g
- Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port or combine two X8R to become a 16 channels receiver)
- With RSSI output: analog voltage output (0~3.3V)
- Operating Voltage Range: 4.0~10V
- Operating Current: 100mA/5V
- Operating Range: full range (>1.5km)
- Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode/FrSky Taranis X9D/XJT in D8 mode/FrSky Taranis X9D/XJT in D16 mode

Package list:
-  1 x FrSky 2.4G S.Port 8CH16CH Telemetry Receiver X8R with Standard Antenna
