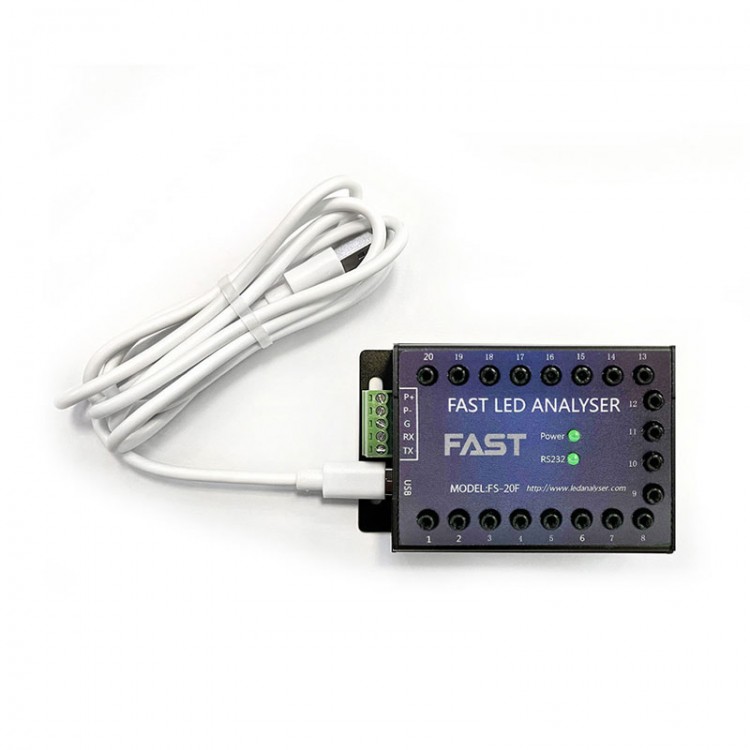

FS-20F 20-Channel Fast LED Analyzer Color Sensor Automatic LED Tester for Electronics LED Color and Brightness Automated Testing

FS-20F 20-Channel Fast LED Analyzer Color Sensor Automatic LED Tester for Electronics LED Color and Brightness Automated Testing

Description:
- The FAST series LED tester is mainly used for automated testing of LED color and brightness on electronic products. The FAST series LED tester has extremely high testing stability and is easy to use, making it the most cost-effective choice in the field of LED automation testing.

Specification:
- Communication interface: RS232/USB-C
- Power supply method: 8 - 24V external power supply or USB power supply
- Testing wavelength: 380 - 760nm
- Testing time: 300ms
- Channel: 2/3/4/6/8/12/16/20 (optional)
- Product size: 92 x 54 x 30mm
- Optical fiber length: 1-meter

Features:
- Supports USB (Type-C) interface and RS232 interface.
- Supports detection of LEDs with wavelengths of 380-760nm.
- Wide testing range, supporting detection of 0-300lumens of LED.
- Good channel consistency.
- Supports output of RGB, HUE, saturation, light intensity and illuminance.
- Supporting parallel detection, the fastest testing time for 20 channels is within 300 ms.
- Supports USB power supply and also supports 8-24V external power supply, suitable for various scenarios and supporting user calibration.
- Can be adapted to various light guide probes.
- Applications: LED color and brightness testing on PCBA, LED indicator light testing on electronic products, LED color and number testing.

Package Included:
- 1 x Tester
- 20 x Optical Fiber Cable (1-meter)
- 1 x USB Type-C Data Cable (1.5-meter)
- 20 x Fixing Optical Fiber Tube (diameter of 1.mm)
