Full HD 4K HDMI Multiviewer 4x1 Quad Multi-Viewer with Seamless Switcher Designed for Video Games

Full HD 4K HDMI Multiviewer 4x1 Quad Multi-Viewer with Seamless Switcher Designed for Video Games

Features:
- Supports 4 HDMI input ports
- Supports 1 HDMI output port
- Compliant with HDMI 1.3a, HDCP 1.2
- Supports multiplexed HDMI 4-input and 1-output
- Supports up to 1080p High Definition resolution
- Supports 4x1 Quad Multi-viewer and seamless switch
- Supports 720/1080p output resolution
- Supports audio switch
- Supports fast switching
- Supports Equalizer TMDS Output: 25MHz–225MHz TMDS clock
- Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC
- Supports 1080P input up to 15 meters and output up to 20 meters (Cable standard AWG26)

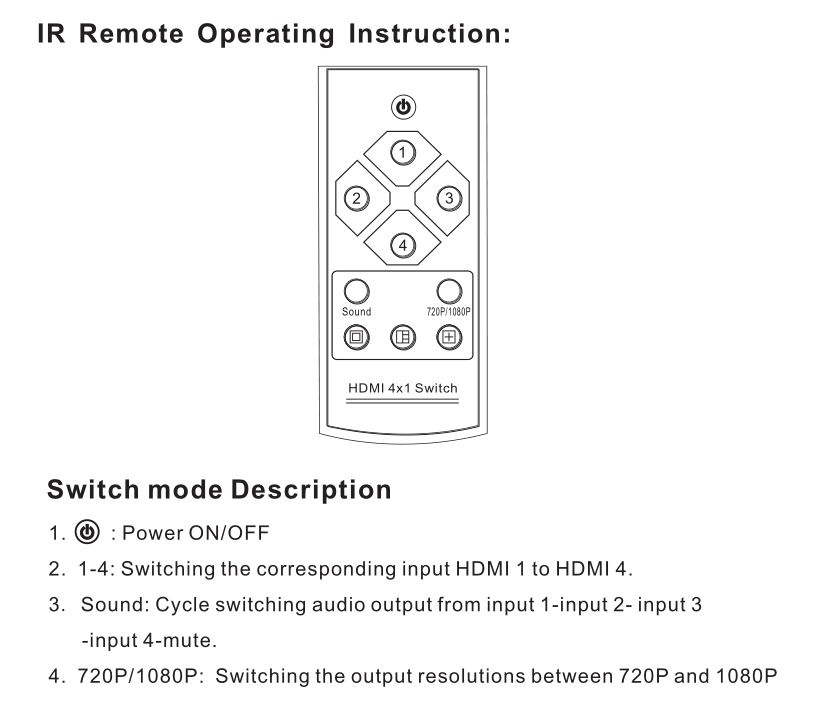

- Inputs can be switched with the IR remote controller, also can be controlled by built-in button
- Extend the transmission distance and improve transmission signal
- Compatible with DVI through a HDMI to DVI adapter
- Supports hot plug-and-play
- LED indicate signal and power mode
- No loss of quality
- Installs in minutes
- Supported output devices including notebook PC, desktop PC, TV set-top box, etc.
- Supported input devices, such as monitor, TV, projector, etc.
- Alloy shell with gold-plated ports which are anti-oxidation, anti-corrosion, and resistant to plugging

Specifications:
- Item name: 4x1 Quad Multi-Viewer
- Shell: alloy shell
- Resolution: 4K/2K at 30HZ
- HDMI version: HDMI 1.4
- Power supply: DC5V 1A
- Interface: Oxygen-free copper gold-plated
- Support video color format: 24/30/36 bit color depth

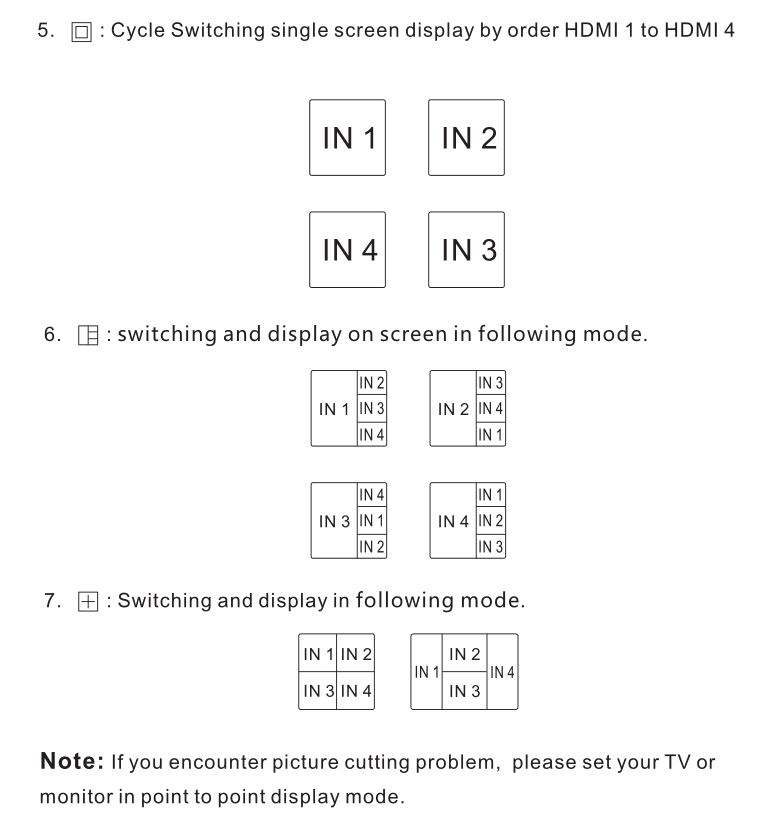

- Function: Display four high-definition input sources on the same screen
- Size: 250 x 120 x 27mm/9.8 x 4.7 x 1.1" (LxWxH)
- Weight: 460G/1LB

Package Included:

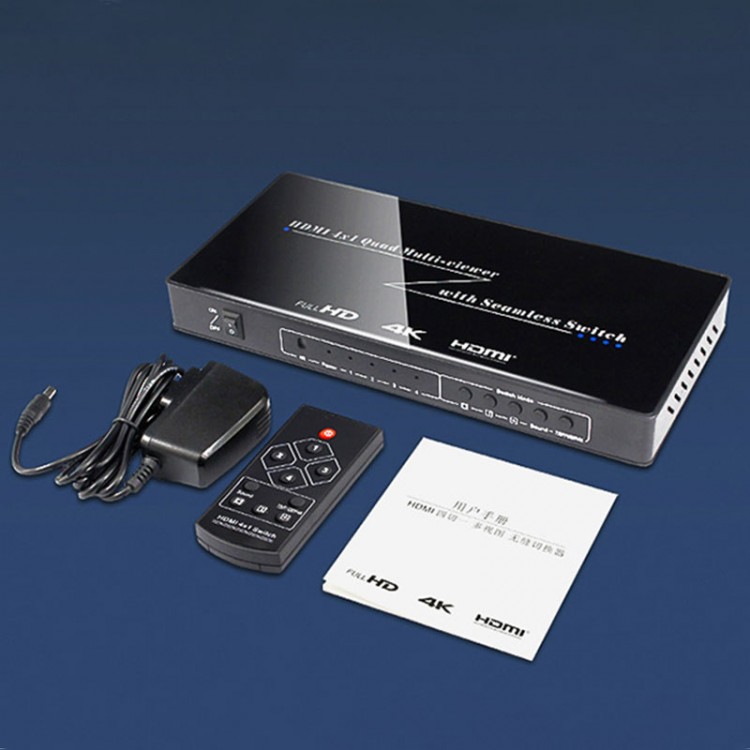

- 1 x HDMI 4x1 Quad Multi-Viewer
- 1 x Power Adapter
- 1 x Remote Control
- 1 x User Manual
