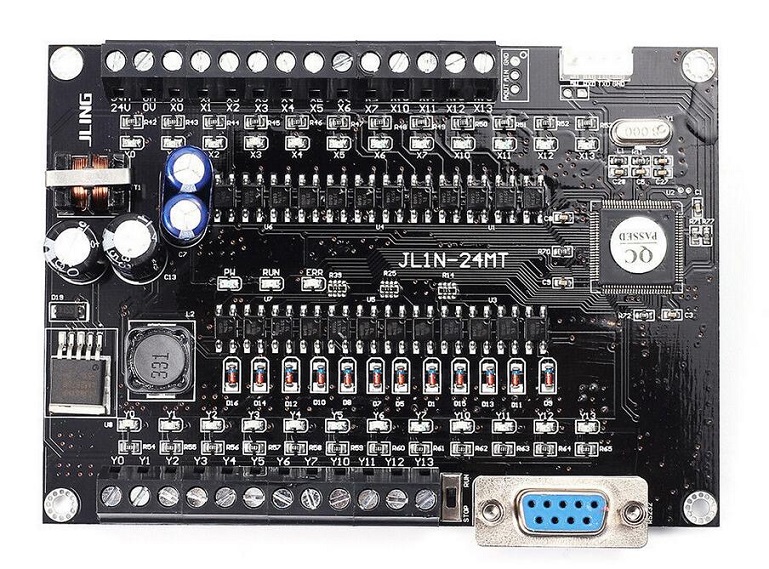

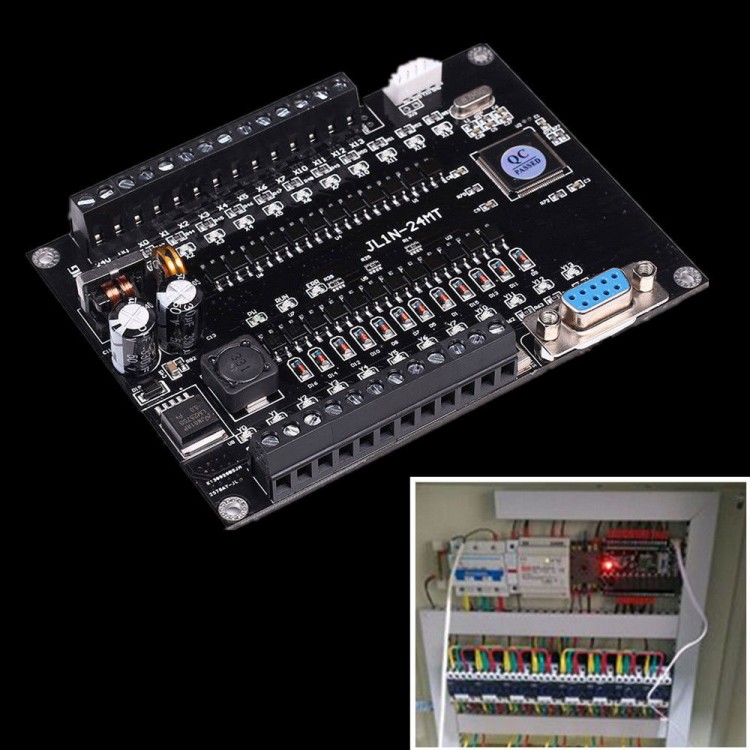

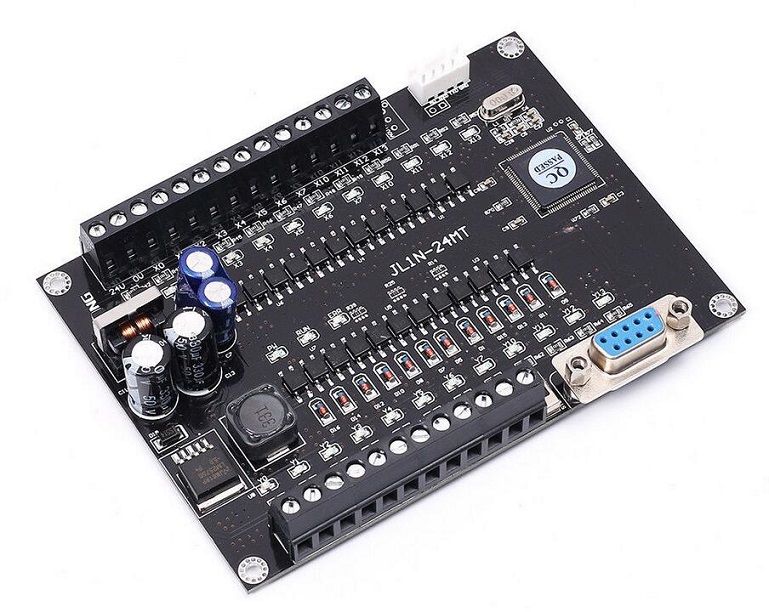

FX1N-24MT 32-Bit PLC Board 12-In 12-Out For Driving Magnetic Valves




Product Introduction:

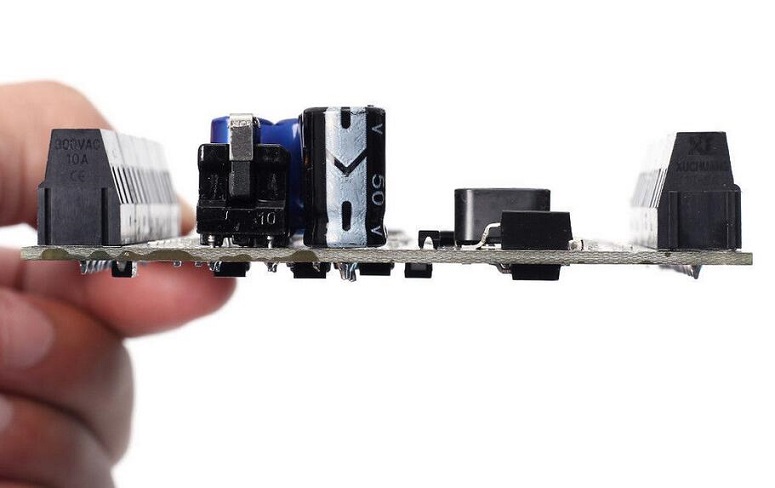

1.Appearance Size:122*87*42mm
2.Installation Hole Size:115*80mm
3.Input high-speed pulse C235,C251 functions are compatible with FX1N
4.Y0 Y1 most trigger 10K pulse,its function is compatible with FX1N

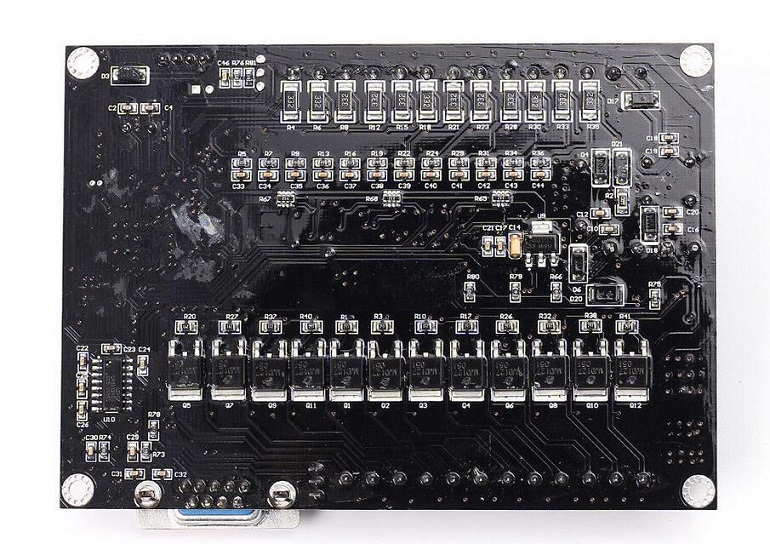

5.Output port is collector open circuit,rated current is 5A;and it can directly drive DC magnetic valve and do not need any external relays
6.With a RS232 port,and it can be used for downloading ladder diagram or various of touch screen and text screen communications

Basic Sequential Control:
- Instructions:LD,LDI,OUT,AND,ANI,OR,ORI,LDP,LDF,ANDP,ANDF,ORP,ORF,ORB,ANB,MPOUT,RST,NOP,END,CALL,CJ,FENDSRET,STL,RET
- Data Process Instructions:ZRST,DECO,ENCO
- High-Speed Process Instructions:SPD,PLSY,PWM,PLSR,HSCS,HSCR
- Location Instructions:PLSV,DRVI,DRVA
- Convenience Instructions:ALT,INCD
- Contactor Comparison Instructions:LD+,LD>,LD<,LD<>,LD<=,LD>=,AND=,AND>,AND<,AND<>,AND<=,AND>=,OR=,OR>,OR<,OR<>.OR<=,OR>=
- All instructions support 32 bit instructions and trigger instructions

Notice:
1.When the computer uses GX Developer program software for programming and connects
with text screen,male to female 1 to 1 9-pin communication wire will be OK

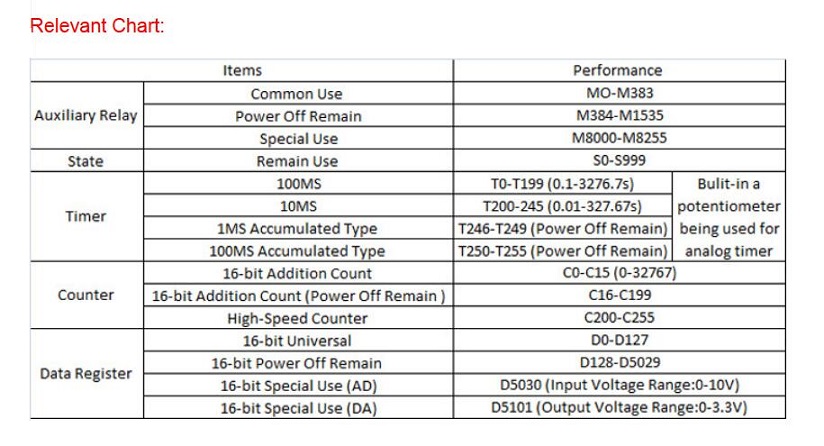

2.This PLC is built-in 1 analog value input AD,it corresponds with internal data register D5030(not D8030)
3.9-pin female program port definition:2-TX;3-RX;5-GND
