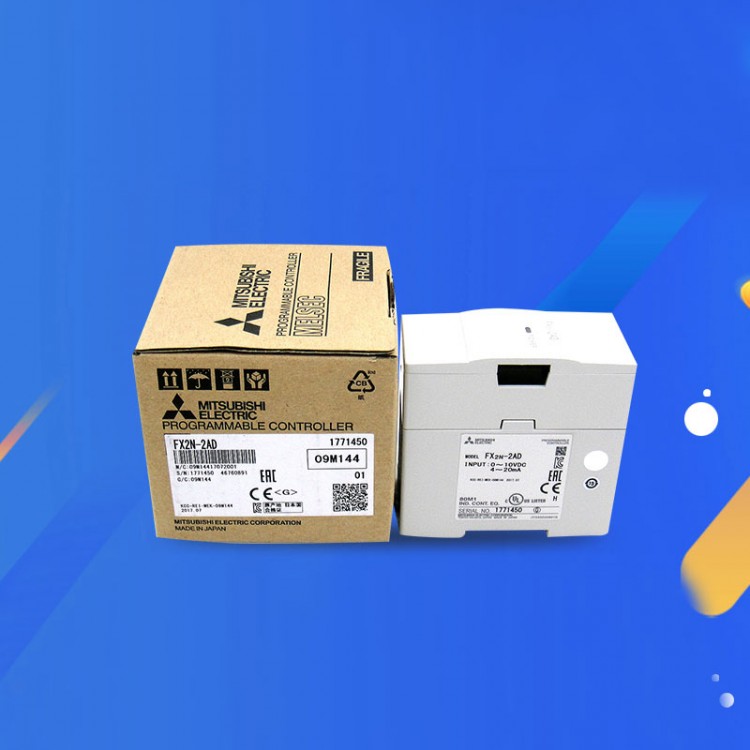

FX2N-2AD PLC Module Programmable Controller for Mitsubishi

Availability: In stock, usually dispatched in 1 business day

  • Price:$55.21
  • Price in reward points: 552 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.11 $53.00 $51.35 $49.14 Contact US
Quantity:

FX2N-2AD PLC Module Programmable Controller for Mitsubishi

Features:

- The FX2N-2AD analog input module is used to convert 2-point analog inputs (voltage input and current input) into 12-bit digital values. And enter this value into the PLC.
- FX2N-2AD connectable to FX0N, FX2N and FX2NC series PLC:
  1. Depending on the wiring method, the analog input can be selected between voltage input and current input. At this time, it is assumed that the two channels share the analog input (voltage input or current input).
  2. Acceptable inputs for both analog input channels are DC 0-10V, DC 0 -5V (input resistance 200KQ), or DC4 - 20MA, making the input characteristics compatible with both channels.
  3. Analog to digital conversion characteristics can be adjusted.
  4. This module occupies 8 I/O points, which can be assigned as inputs or outputs.
  5. Data transfer with the PLC using the FROM/TO instruction.

Parameters:
-FX2N-2AD 2-channel analog input
- Analog input range:
  Voltage input: DC 0-10V, DC 0 -5V (input resistance 200KQ); Absolute maximum input: -0.5V +15V
  Current input: DC4 - 20MA (input resistance 250Q); Absolute maximum input: -2MA +60MA
- FX2N-2AD resolution: 2.5MV (10V x 1/4000) 1.25MV (5VX 1/4000); 4MA ((20-4) MAX 1/4000)
- Accuracy: ±1% (for full scale 10V); ±1% (for full scale (20-4) MA)

Package Included:
- 1 x FX2N-2AD Programmable Controller
