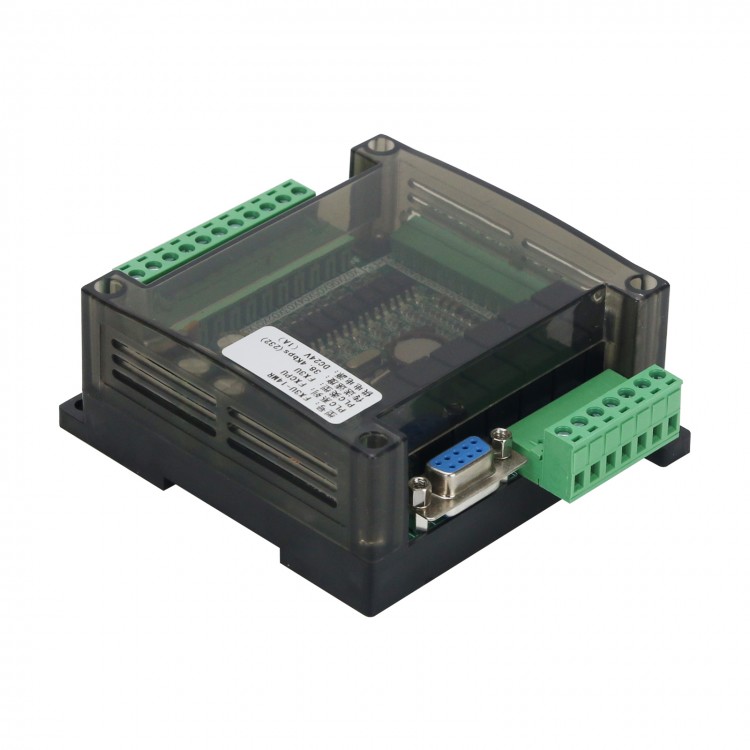

FX3U-14MR PLC Industrial Control Board Simple PLC Control Board With RS485 Communication/Clock

FX3U-14MR PLC Industrial Control Board Simple PLC Control Board With RS485 Communication/Clock

Advantages:
* PLC type: FX3U
* Download baud rate: 38.4Kbps
* Direct programming download without conversion
* Support 27pcs basic sequence commands and 4pcs step ladder diagram instructions
* Application instructions, including procedure flow chart, sending and comparison, four logical operations, cyclic shift and the like

Attention:
* Support 32-bit instruction and pulse execution type instruction P

Product Parameters:
* Input power: DC24 (1A)

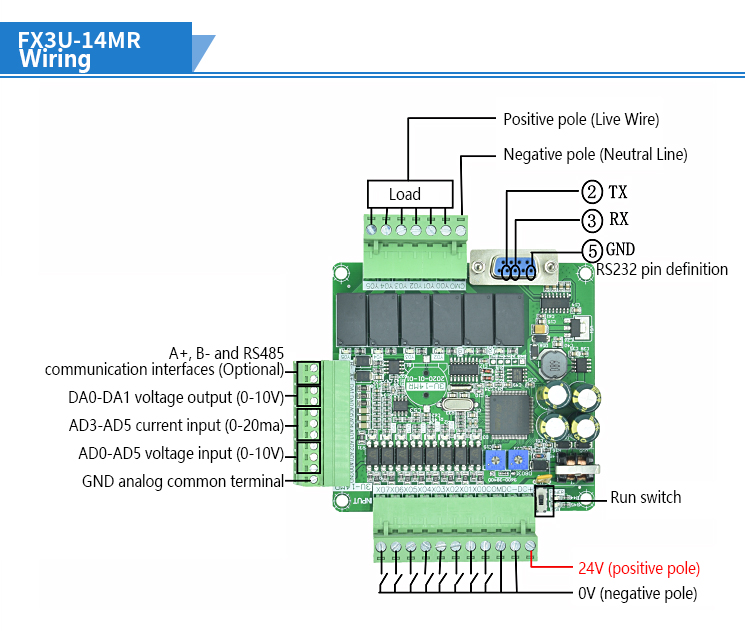

* Program steps: 8000 steps; two communication ports: One RS232 (standard 9-pin serial port, FX3u protocol 38400, 7, E, 1) and one RS485
* Input point X components: X0-X07, DC0V input, effective at low level. Among them, X0-5 are high-speed counting input ports (12KHZ)
* The input point X component of FX3U-14MR: Y0-Y5 are relay outputs, a total of 6 points. Can control AC contactors, intermediate relays and solenoid valves (5A)
* Analog input: 6ch analog inputs, 12-bit precision. AD0~AD2 are voltage input, 0-10V; AD3~AD5 are 0-20MA current input; use RD3A command to read analog
* Intermediate relay M: M0-M3071. Power-off storage range can be set M0-M1023
* Step point S: S0-1023. Power-off storage range can be set S0-S1023
* 100Ms timer: T0-T199. T184-T199 accumulative data preservation when power down
* 10Ms timer: T200-T249. T246-T249 accumulative data preservation when power down
* 1Ms timer: T250-T383, of which T250-255 is cumulative
* 16-bit counter: C0-C199. Data preservation when power down
* 32-bit counter: C200-C219. C220-C234 data preservation when power down
* 32-bit high-speed counter: C235-255; C235-240 is a single-phase counter with no frequency multiplication; C241-240 is a single-phase counter with 2 times frequency 2C; 52547-249 is a two-phase counter without frequency multiplication; C250-252 is Two-phase counter, 2 times frequency; C253- is a two-phase counter, 4 times frequency
* Register D: D0-D7999. Power-off storage range can be set from D0-7999
* Indirect addressing pointer V, Z: V0-7, Z0-7
* P subroutine jump number: P0-63
* I interrupt: X0-5 external interrupt. Timer interrupt (1MS as a unit). Counter interrupt
* Special M element: M8000 is normally closed during operation. M8002 is power-on pulse. M8011 is a 10Ms pulse. M8012 is a 100Ms pulse
* Dimensions: 125 x 116 x 50mm/4.9 x 4.6 x 2" (LxWxH) (fixed by rail or screws)

Package Included:
* 1 x PLC Control Board
