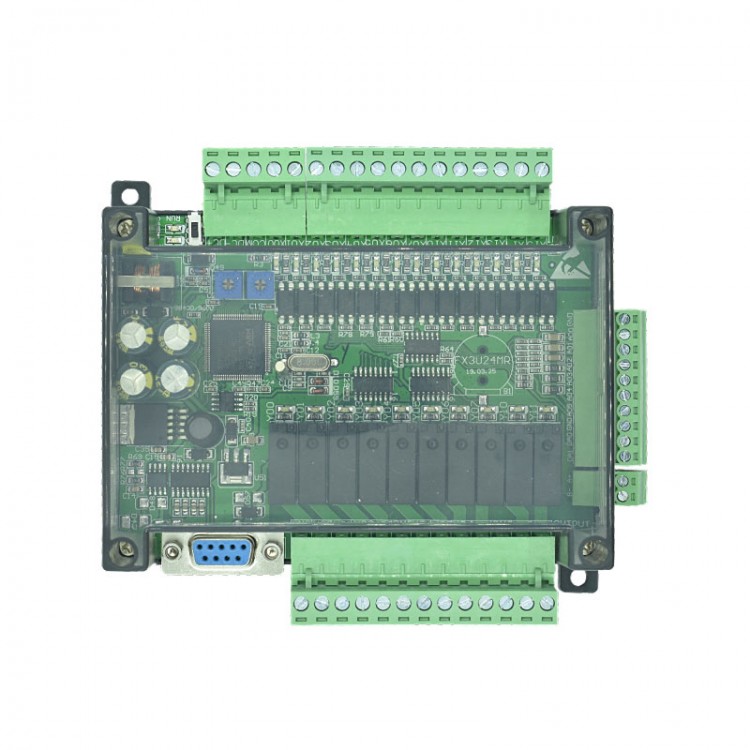

FX3U-24MR w/ Shell PLC Control Board High-Speed With Analog Quantity STM32 Programmable Controller

Advantages:

- PLC Type: FX3U
- Download baud rate: 38.4Kbps
- Direct programming download without conversion

Specifications:

- Input power supply: DC 24V (1A)
- Program steps: 8000 steps; 2 communication ports: 1 RS232 (standard 9-pin serial port FX3u protocol 38400, 7, E, 1), 1 RS485
- Input point X components: X0-X15, DC0V input, low-level effective. Among them, X0-5 are high-speed counting input ports (12KHZ)
- FX3U-24MR input point X components: Y0-Y11 are relay outputs, a total of 10 points, which can control AC contactors, intermediate relays, and solenoid valves (5A)
- Analog quantity input: 6 analog quantity inputs, 12-bit precision, AD0~AD2 are voltage inputs 0-10V. AD3~AD5 are 0-20MA current input; use RD3A instruction to read analog quantity
- Intermediate relay M: M0-M3071, save range can be set M0-M1023
- Step point S: S0-1023, save range can be set S0-S1023
- 100Ms timer: T0-T199, accumulative power-down save T184-T199
- 10Ms timer: T200-T249, cumulative power-down save T246-T249
- 1Ms timer: T250-T383, of which T250-255 is cumulative
- 16-bit counter: C0-C199, save C100-199 when power off
- 32-bit counter: C200-C219, save C220-C234 when power off
- 32-bit high-speed counter: C235-255; C235-240 is a single-phase counter with no frequency multiplication; C241-240 is a single-phase counter with 2 times frequency 2C; 52547-249 is a two-phase counter without frequency multiplication; C250-252 is Two-phase counter, 2 times frequency; C253- is a two-phase counter, 4 times frequency
- Register D: D0-D7999, the saving range can be set to D0-7999
- Indirect addressing pointer V, Z: V0-7, Z0-7
- P subroutine jump number: P0-63
- I interrupt: X0-5 external interrupt. Timer interrupt (1MS as a unit). Counter interrupt
- Special M element: M8000 is normally closed when running, M8002 is power-on pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse
- Size: 125 x 116 x 50 mm/4.9 x 4.6 x 2" (LxWxH) (installed by rail or screw)

Support Instructions:
- 27 basic sequence commands
- 4 step ladder diagram instructions

Package Included:
- 1 x FX3U-24MR PLC Control Board
