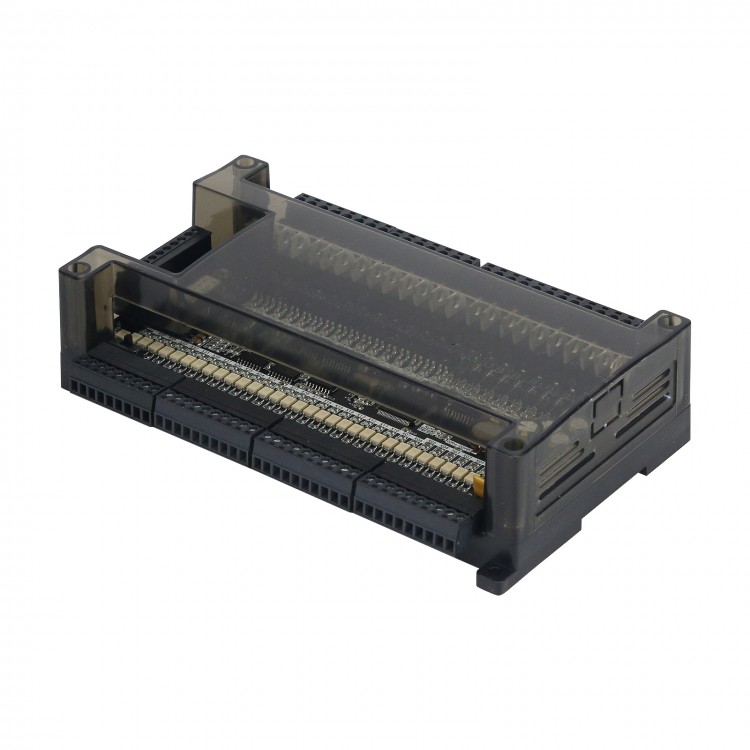

FX3U-56MRT Industrial High-Speed PLC Control Board with Transparent Base and Shell

FX3U-56MRT Industrial High-Speed PLC Control Board with Transparent Base and Shell

Functions:
- Write applications in ladder language with support for Mitsubishi GX-Develoer and GX-WORK2
- Supporting HMI, it is fully equivalent to FX3U devices for Mitsubishi in applications
- Support ladder diagram programming, download, and monitoring
- The programming port is the port for program uploading, downloading and communication with a HMI
- This PLC control board adopts an industrial-grade 32-bit MCU with strong anti-interference, and its operating speed far exceeds the original FX3U for Mitsubishi
- Unique original password protection
- Has a transmission baud rate of 38400

Product Resource Description:
- The board has 32 inputs and 24 relay outputs
- X0-X5 is a high-speed input, which can be connected to 3 AB encoders; Default 12K, optional 100K
- 6 analog inputs (default 3-way 0-10V, 3-way 0-20MA) and 2-way 0-10V analog outputs
- Power-down hold, freely configurable, optional CAN communication extension
- The board adopts DC 24V power supply; please not input AC or 220V
- Board internal resource allocation

Programs & Performance:
- Input power: DC 24V
- Number of steps: 8000 steps; Two communication ports: One RS232 (DB9 serial port communication port is FX3u protocol 38400,7,E,1; One RS485 (optional) (communication protocol can be set D8120), optional CAN communication
- Input point X element: X0-X27, DC24 input and it works at low level. Among them, X0-5 is a high-speed counting input port (12KHZ), optional 100KHZ (additional charge)
- Input point Y element: Y0-Y27 is the relay output, and the relay output current is 5A. 4 relays with 1 common end; a total of 6 common terminals
- Analog input: 6-way analog input, 12-bit (3-way voltage: 0-10V, 3-way current: 0-20MA); RD3A instructions are used to read analog quantities
- Analog output: 2-way analog output, 12 bits, and output voltage: 0-10V. Output analog voltage with WR3A command
- Intermediate relay M: M0-M3071; The power-down saving range can be set to M0-M1023, and the default is M500-M1023
- Step point S: S0-1023; The power-down save range can be set to S0-S1023, and the default is S500-S9999
- 100ms Timer: TO-T199; Cumulative power-down saves T184-T199
- 10ms timer: T200-T249; Cumulative power-down saves T246-T249
- 1ms Timer: T250-T383; Among them, T250-255 is the cumulative type
- 16-bit counter: C0-C199; Power-down saves C100-199
- 32-bit counter: C200-C219; Power-down saves C220-C234
- 32-bit high-speed counter: C235-255; C235-240 is a single-phase counter, not frequency doubled; C241-240 is a single-phase counter, 2 times the frequency; C247-249 is a biphasic counter, not frequency doubled; C250-252 is a biphasic counter, 2 times the frequency; The C253-255 is a biphasic counter, 4 times the frequency
- Registers D: D0-D7999; power-down storage range can be set D0-7999
- Indirection pointers V, Z: V0-7, Z0-7
- P subroutine jump number: P0-63
- I interrupt: Interrupt outside X0-5. TIMER INTERRUPT IN 1MS. Counter interrupts
- Special M element: M8000 normally closed when running; M8002 is a power-on pulse; M8011 is 10ms pulse; M8012 is 100ms pulse; M8013 is a 1s pulse; M8014 is a minute pulse

Supported instruction Sets:
- 27 basic sequence instructions
- 4 step-by-step ladder instructions

Package Included:
- 1 x PLC Control Board
