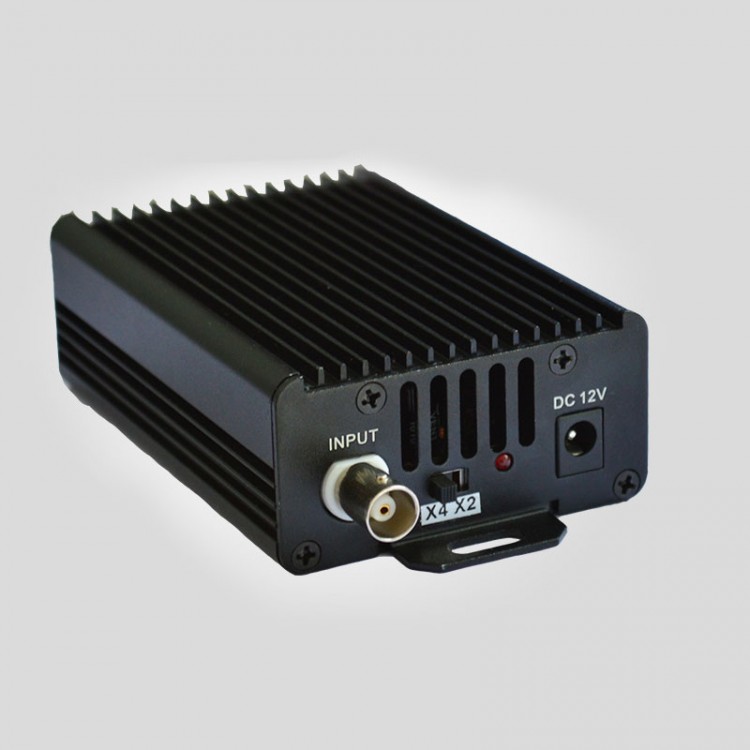

FYA2050S DC~5MHz DC Amplifier 20W Power Amplifier Module X4 X2 Low Distortion For Signal Generators
Description:
The DC power amplifier uses imported integrated devices, FYA2050S DC~5MHz full-band amplification: sine wave, square wave, pulse wave, sawtooth wave, reverse sawtooth wave, triangle wave, electrocardiogram wave, saddle wave, noise wave and the like. Its maximum output power is 20W.
The power amplifier is compatible with all function/arbitrary waveform signal generators on the market. It is an ideal equipment for electronic engineers, laboratories, production lines, teaching, and scientific research. It can also be used as a supporting module for industrial equipment.
Features:
◆ The maximum signal frequency range that can be amplified: FYA2050S DC~5MHz
◆ Low distortion, high precision signal amplification, compatible with all DDS signal generators
◆ Up to peak 28V (±14V) voltage output
◆ Output current: 1000mA (MAX.), maximum output power 20W
◆ Magnification X2 and X4 are switchable
◆ ≥500V/us slew rate
◆ Single-channel DC15V power supply
◆ Input impedance: 10KΩ
◆ Exquisite aluminum alloy shell, strong heat dissipation capacity, stable and reliable
◆ Amplifiable signals: function signals and arbitrary waveform signals
◆ Small size, easy to carry, single power supply, convenient for outdoor use
Technical Indicators:
◆ Product model: FYA2050S
◆ Signal input bandwidth: DC~5MHz
◆ Maximum output power: 20W
Power Supply Input Parameters:
◆ Power input voltage: single-channel DC15V power supply
◆ Power input power: ≥30W
Signal Input Parameters:
◆ Input impedance: ≥10KΩ
◆ Input amplitude range: ≤14Vp-p
Signal Output Parameters:
◆ Output amplitude: ≥28Vp-p (no load)
◆ Output current: 1000mA (MAX.)
◆ Load impedance: ≥4Ω (at maximum output power)
◆ Slew rate: ≥500V/us
◆ Harmonic distortion: <1%
Other Characteristics:
◆ Over-current protection: with
◆ Gain adjustment method: fixed magnification, X2, X4 two gears
◆ Environmental conditions: Temperature: 0~60℃; Humidity: <80%
◆ Dimensions: 84mm x 49mm x 153mm (WxHxL)
◆ Weight: 400g (without weights of power supply or transformer), accessories (150g)
Application Scenarios:
1. Electronic testing and design
2. Sensor simulation and testing
3. Power device and circuit drive
4. Ultrasonic transducer drive
5. IF device driver
6. Medical beauty equipment drive
7. Screening and testing of piezoelectric components
8. Electronic training room experiment platform
9. Education and training
10. Signal amplification of wireless remote sensing and detection equipment
Package Included:
◆ 1 x Set of DC Amplifier
