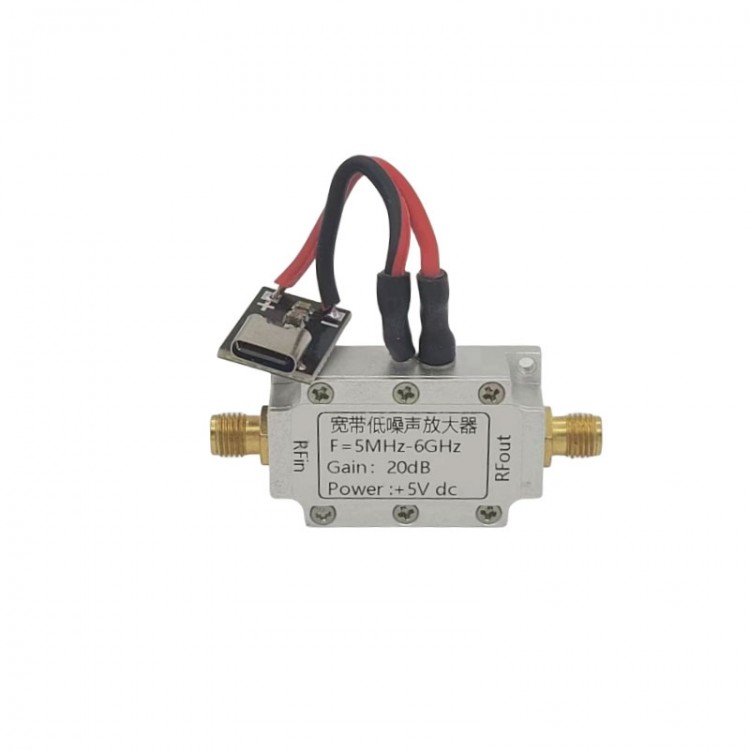

SBB5089 5MHz - 6GHz Wideband Low Noise Amplifier 20dB Gain RF Amplifier Module (with Type-C 5V Power Supply Module)
Description:
- The amplifier operates in a frequency range of 5-6000MHz and has a power gain of 20dB. It has the advantages of wide frequency range, stable gain, low noise figure, and large dynamic range, making it suitable for fixed gain amplification of various RF signals.
Specification:
- Working frequency: 5 - 6000MHz
- Amplification gain: 20dB
- Output power: +21dBm (100mW) at 1dB compressed point
- Working current: 85mA (5V)
- Power supply voltage: 5V DC
- System impedance: 50ohms
- Weight: 19g
Precautions:
- Shield well when working with high-power signals to avoid distortion.
- Signal input and output require a 50ohm coaxial line connection.
- When applying in engineering, the load should be connected first, otherwise the module may burn out if the no-load power cannot be output.
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.
Package Included:
- 1 x Low Noise Amplifier
