Description:

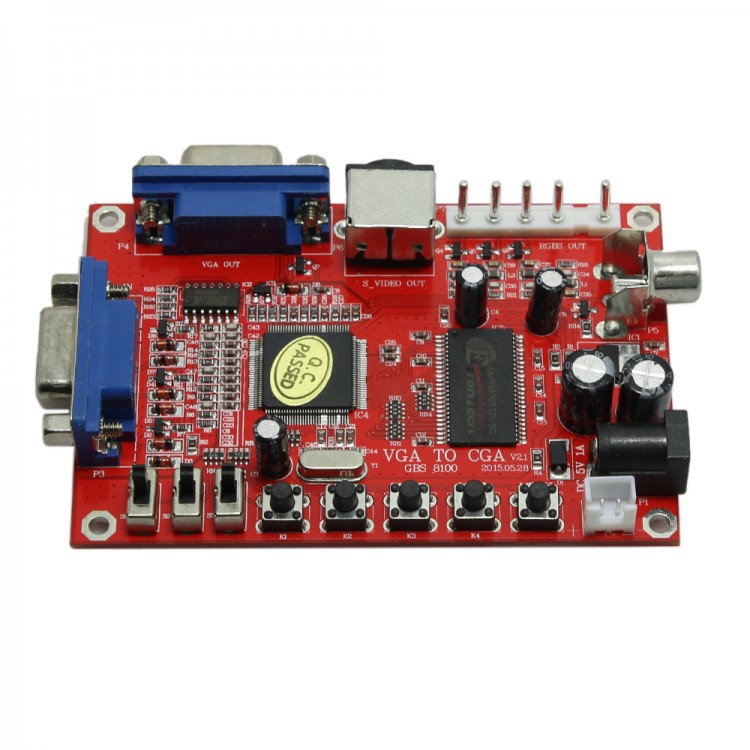

The high definition GBS-8100 Video Converter Board is a professional game converter, which is specially designed for game industry. And, it can convert VGA input signal to CGA / / CVBS / S-VIDEO component signal. After connected, it will play the VGA games (High resolution Arcade Game or PC games) on big-screen HD Monitors (CGA CRT Monitor, LCD Monitor PDP Monitor) It will bring you much fun and convenience.

Features:
- Supports VGA / SVGA / XGA / SXGA  (640 * 480, 800 * 600, 1024 * 768, 1280 * 1024) Component Signal Input.
- Supports VGA output by pass.
- CGA signal output (15K).
- Video / S-video output.
- Supports NTSC & PAL (you can freely change the mode between NTSC & PAL by press N / P button).
- Supports image position control & image zoom control.
- On Screen Display (English).
- True digital 24-bit A/D converter for true 16.7-million color conversion.
- Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).

Specifications:
- Model Number: GBS-8100
- Input Power: DC 5V ±0.5V (2A) P1 or P2
- Input signal:
  640 * 480 @ 60 / 72 / 75 80 / 85 Hz, 800 * 600 @ 60 / 72 / 75 80
  85 Hz, 1024 * 768 @ 60 / 72 / 75 80Hz, 1280 * 1024 @ 60 / 72 / 75 Hz (Auto scan) P3
- Output Signal:
- CGA: 640 * 480 P7
- VGA: By Pass P4
- Video: 480p NTSC & PAL P5
- S-Video: 480p NTSC & PAL P6
- User controls (Menu Keys): Output Switch, Image Zoom, Image Position, Output adjust.
- Color: Red
- Main item size: 10.0 * 6.5 * 1.6 cm / 3.94 * 2.56 * 0.63in

MENU CONTROL:
- “MENU” open / close OSD menu.
- “UP” up move.
- “DOWN/AUTO” down move.
- “LEFT” add.
- “RIGHT” less
- For more functions control, please refer to OSD to operate.
- S2 to switch NTSC & PAL, output, S1 to switch S-Video / CGA output.

Package list:
- 1 * GBS-8100 Converter
