Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $77.05 | $75.48 | $73.12 | $69.97 | Contact US |

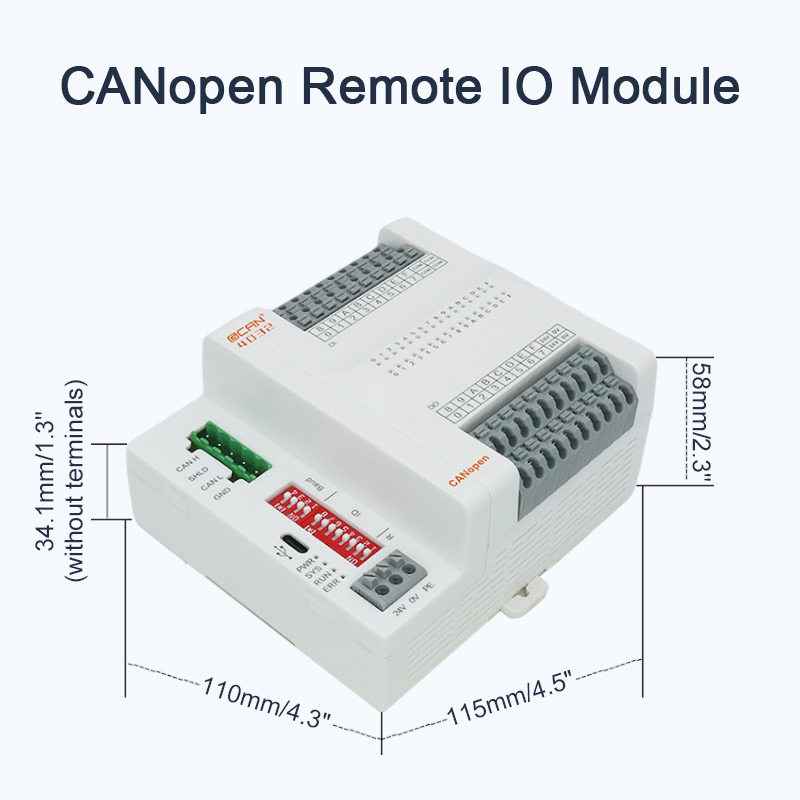

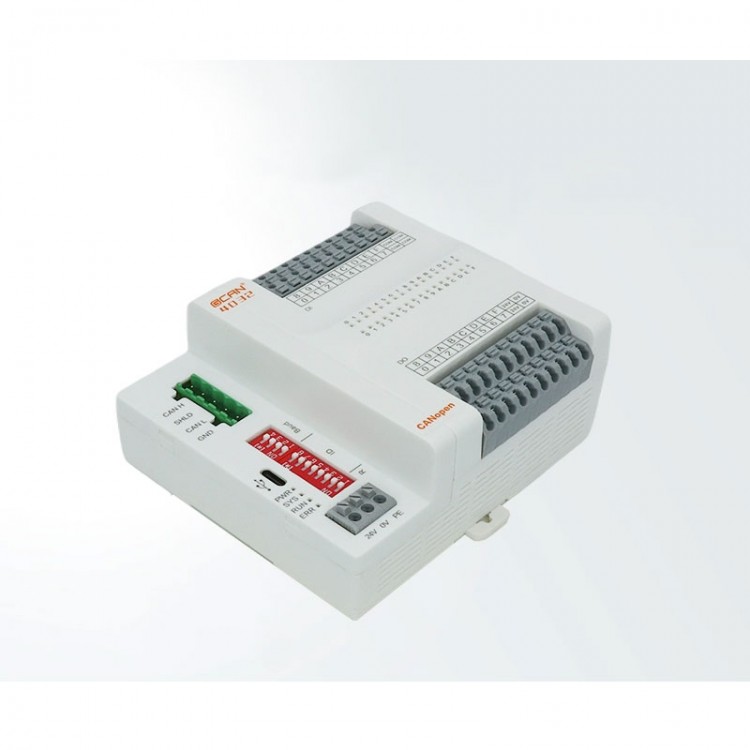

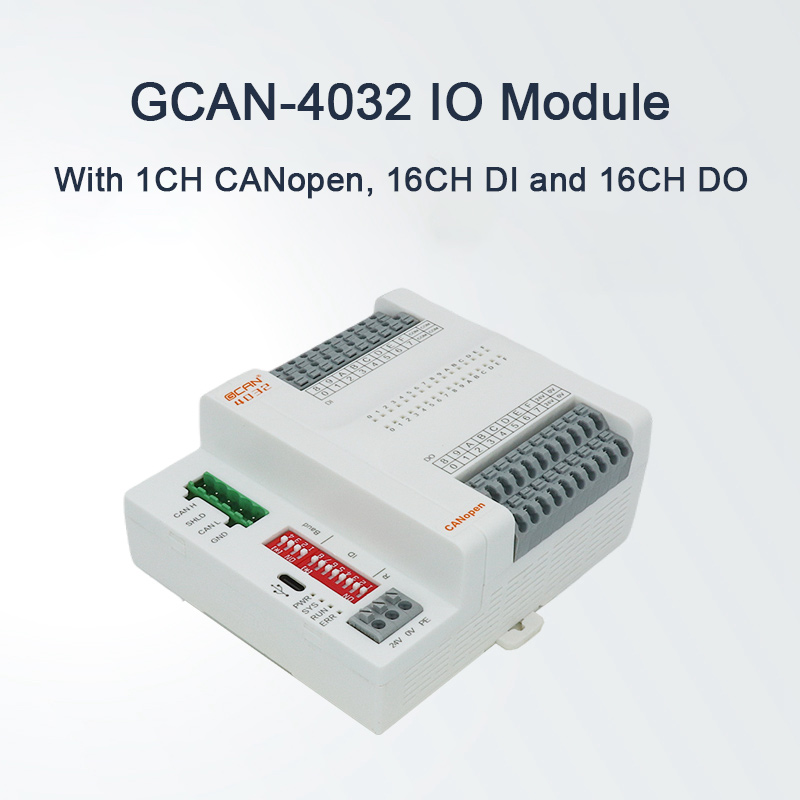

GCAN-4032 Industrial-Grade Remote IO Module Digital IO Module with 1CH CANopen + 16CH DI + 16CH DO
Features:
- GCAN-4032 remote IO module
- With 1CH CANopen, 16CH DI and 16CH DO
- Highly cost-effective
- Industrial-grade accessory
- Professional technical support provided
- No programming is required, and the module can be used after simple configuration

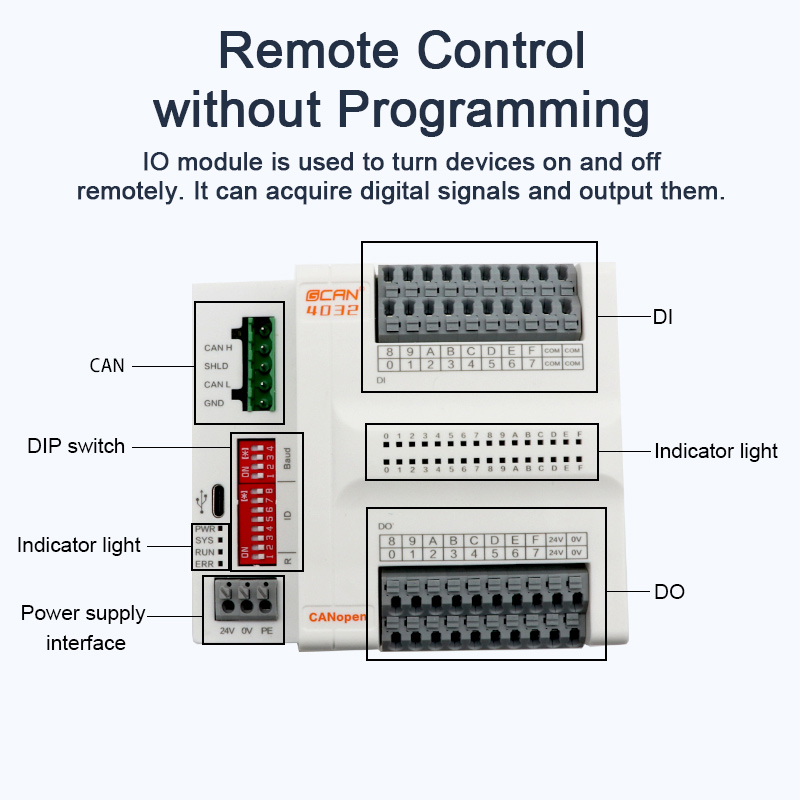

- The module is used to turn devices on and off remotely. It can acquire digital signals and output them
- DIN rail mounting facilitates the centralization of modules in a control cabinet
Specifications:
- Model number: GCAN-4032
- Bus type: CANopen
- Bus interface: 1CH
- Interface form: terminal interface
- Number of DI channels: 16CH
- Number of DO channels: 16CH
- Digital input signal: Wiring switching source/sink type
- Digital output signal: Transistor PNP output (Optional NPN)
- Master/slave protocol: CANopen slave
- CAN-bus protocol standard: supports CAN2.0A and CAN2.0B frame formats and conforms to ISO/DIS11898 specifications
- Baud rate and node number: DIP switch configuration
- Module power supply channel: Electric isolation 1500VDC, electrostatic contact discharge +4, electrostatic air discharge +8, electrical fast transient burst +2 and lightning strike (surge) +1
- CAN channel: 3000VDC electric isolation, electrostatic contact discharge±4, electrostatic air discharge±8, lightning strike (surge) ±1 and electrical fast transient pulse±2
- Power supply form: 24V DC (-15%/+20%)
- Isolation form: Optocoupler isolation
- Operating temperature range: -40°C to +85°C
- Support EMC anti-interference: module power supply channel and CAN channel
- Mounting form: DIN rail mounting
- G.W.: 0.45KG/1LB
Package Included:
- 1 x IO Module
