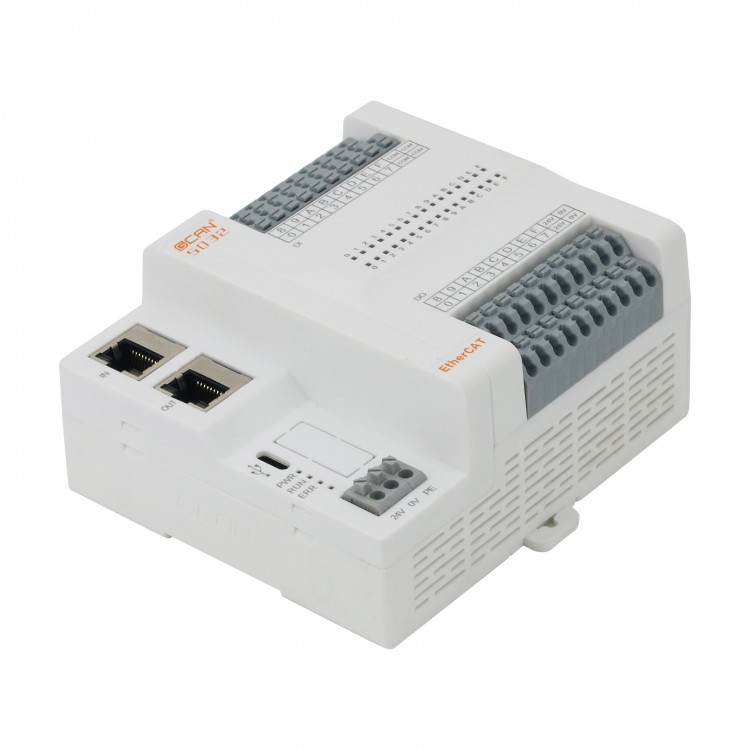

GCAN-5032 Industrial-Grade Remote IO Module Digital IO Module for 2CH EtherCAT + 16CH DI + 16CH DO
Features:

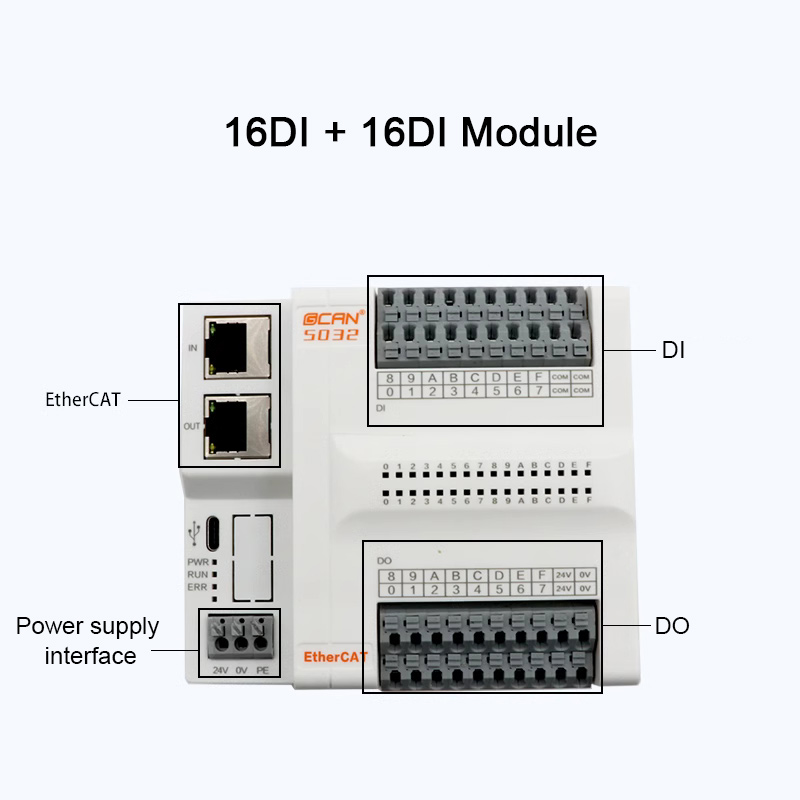

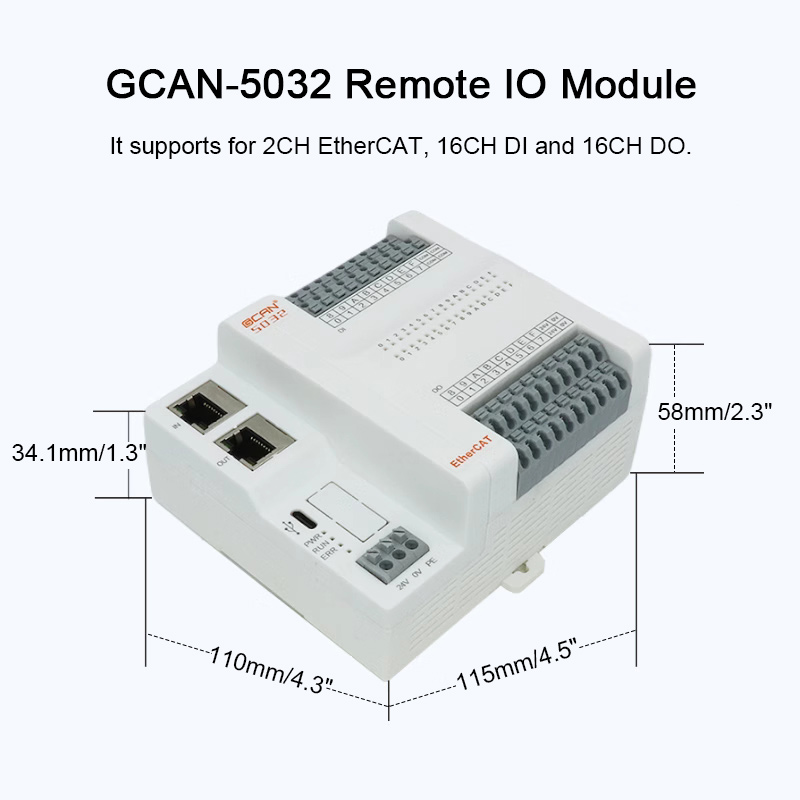

- GCAN-5032 remote IO module
- It supports for 2CH EtherCAT + 16CH DI + 16CH DO
- More suitable for industrial automation application scenarios. Users can realize remote control without programming, with the 16DI and 16DO module
- Industrial-grade accessory is highly cost-effective
- The module is used to turn devices on and off remotely. It can acquire digital signals and output them
- DIN rail mounting facilitates the centralization of modules in a control cabinet
Specifications:
- Model number: GCAN-5032
- Bus type: For EtherCAT
- Bus interface: 2CH
- Interface form: terminal interface
- Number of DI channels: 16CH
- Number of DO channels: 16CH
- Digital input signal: Wiring switching source/sink type
- Digital output signal: Transistor PNP output (optional NPN)
- Master/slave protocol: For EtherCAT slave
- Baud rate and node number: DIP switch configuration
- Module power supply channel: Electrical isolation 1500VDC, electrostatic contact discharge +4, electrostatic air discharge +8, electrical fast transient burst +2 and lightning strike (surge) +1
- Power supply form: 24V DC (-15%/+20%)
- Isolation form: Optocoupler isolation
- Operating temperature range: -40°C to +85°C
- Support EMC anti-interference: module power supply channel
- Mounting form: DIN rail mounting
- G.W.: 0.45KG/1LB
Package Included:
- 1 x IO Module
