Geekworm C235 12mm Aluminum Alloy Heat Sink Heatsink (with 3010 Fan) for Raspberry Pi CM4 Motherboard

Geekworm C235 12mm Aluminum Alloy Heat Sink Heatsink (with 3010 Fan) for Raspberry Pi CM4 Motherboard

Features:
Embedded Heatsink for Raspberry Pi CM4
* Precisely aligned mounting holes for effective heat transfer
* Reserved cutout for wireless and Bluetooth module to avoid signal interference

Aluminum Alloy Heat Sink
* Precision-crafted from aluminum alloy for strong thermal conductivity and durability

Cooling Methods
* Efficient passive cooling with grooved design to increase heat dissipation area
* Optional 3010 fan can be installed for active cooling

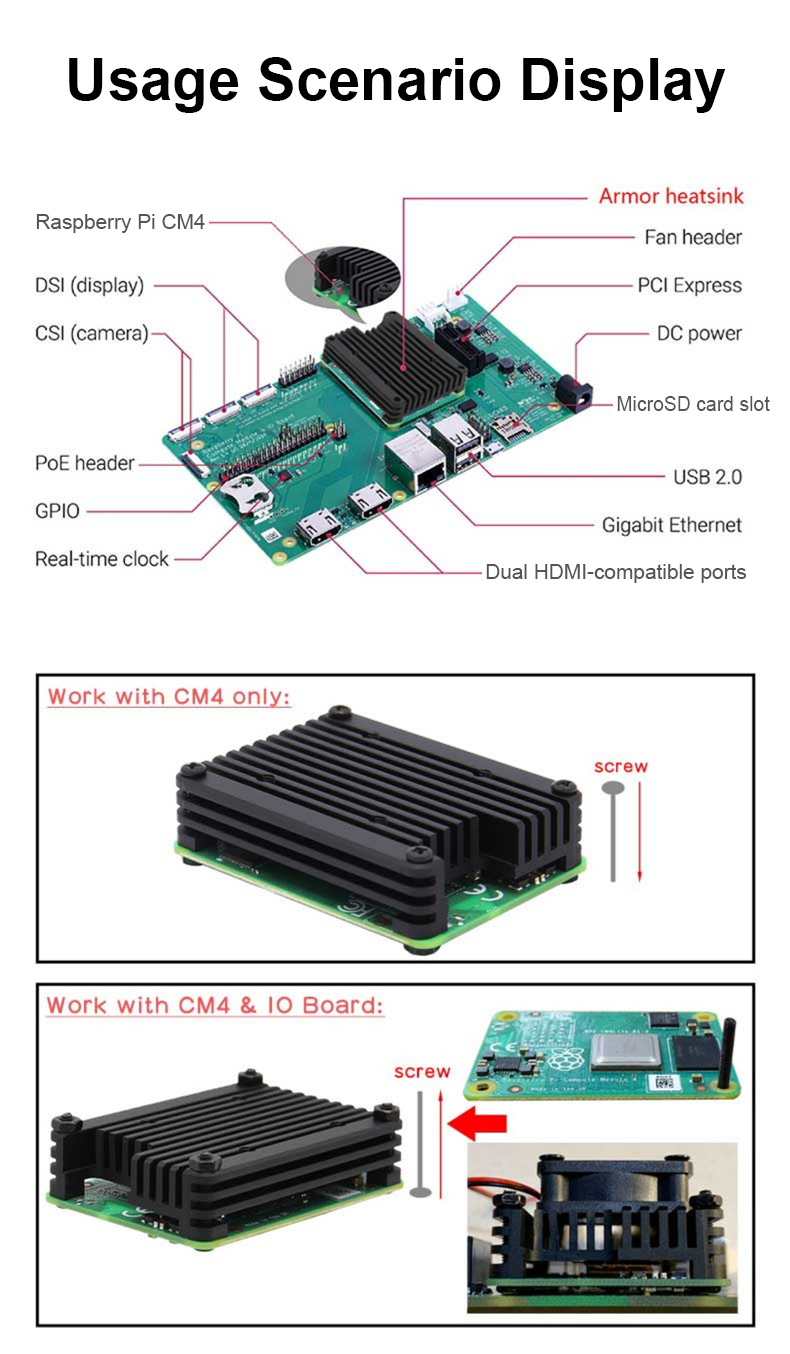

Tailor-made for Raspberry Pi CM4
* Designed with a custom mold exclusively for the Raspberry Pi Compute Module 4 (CM4), this embedded aluminum alloy heatsink provides excellent passive cooling performance. It also supports the installation of a fan for enhanced active cooling.

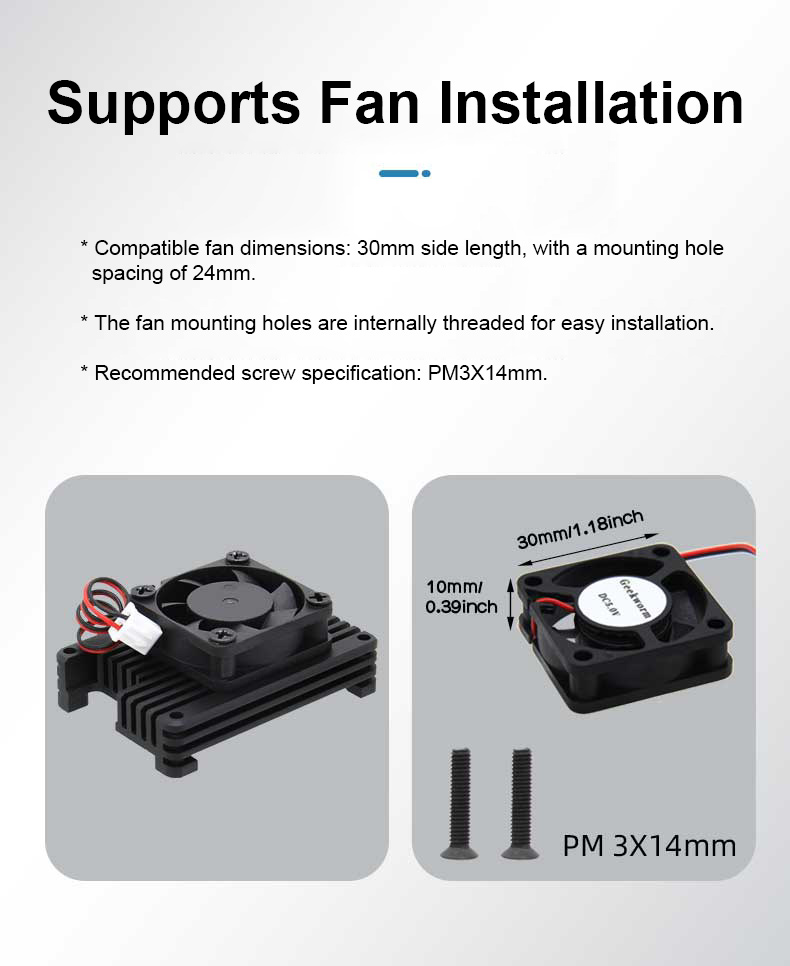

Supports Fan Installation
* Compatible fan dimensions: 30mm side length, with a mounting hole spacing of 24mm.
* The fan mounting holes are internally threaded for easy installation.
* Recommended screw specification: PM3X14mm.

Specifications:
* Product Name: CM4 Heatsink (C235)
* Cooling Method: Passive + Active Cooling (Optional Fan)

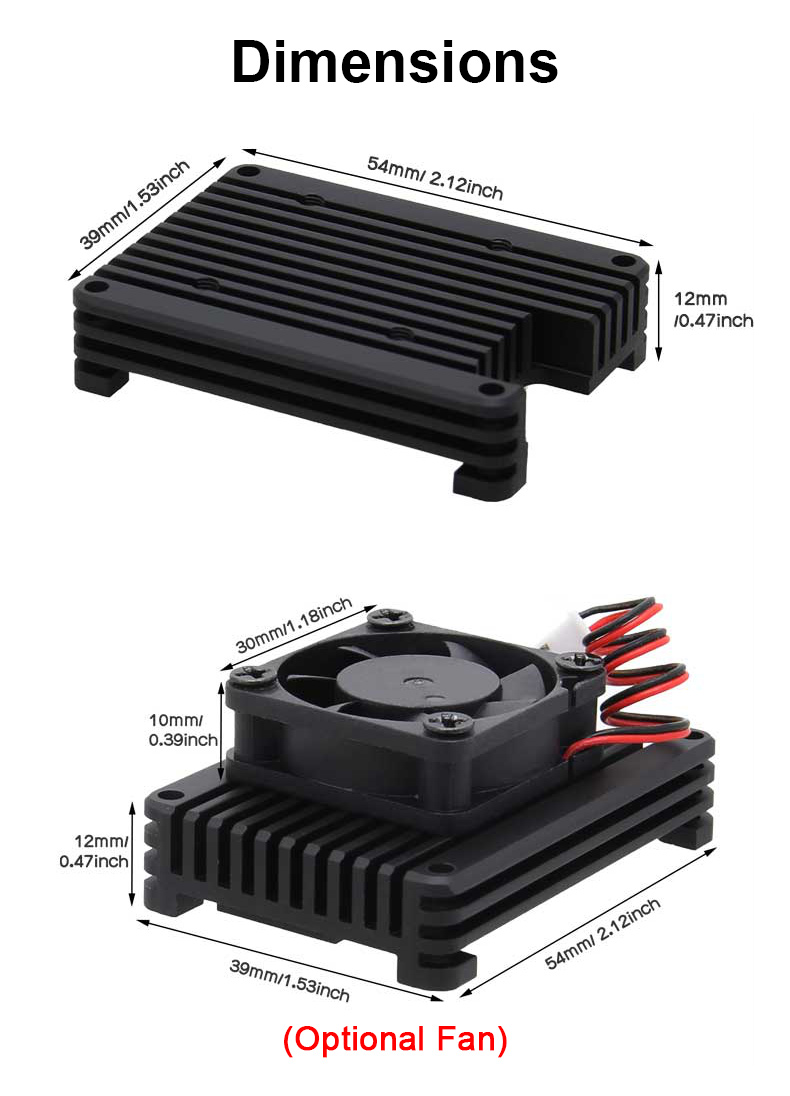

* Dimensions of Heat Sink: 54mm × 39mm × 12mm
* Dimensions of Optional Fan: 30mm × 30 mm× 10mm

3010 Fan:
* Rated Voltage: DC 5V
* Operating Voltage: 3.0-12V
* Current: 0.1A
* Airflow: 5m³/h
* Speed: Approx. 6000RPM
* Noise Level: 18dB
* Connector: Can be changed to 2.54 mm interface

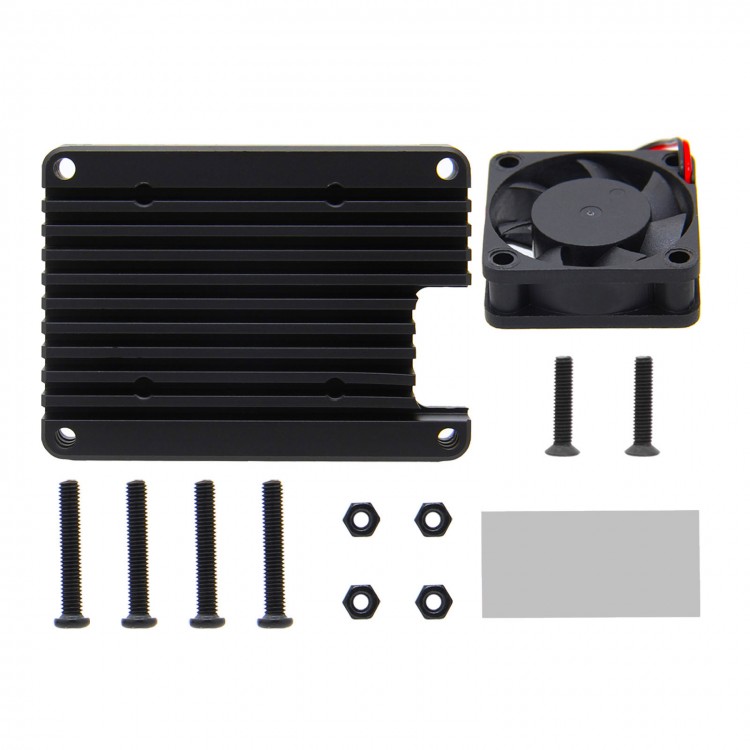

Packing List:
* 1 x Set of Heatsink

Packaging Details:
* Weight: 0.15kg

Note:
* Raspberry Pi CM4 board is not included.
