Geekworm X1013 SupTronicsX PCIe to 10-Port USB Expansion Board 9-18V Input & for Raspberry Pi 5
Description:

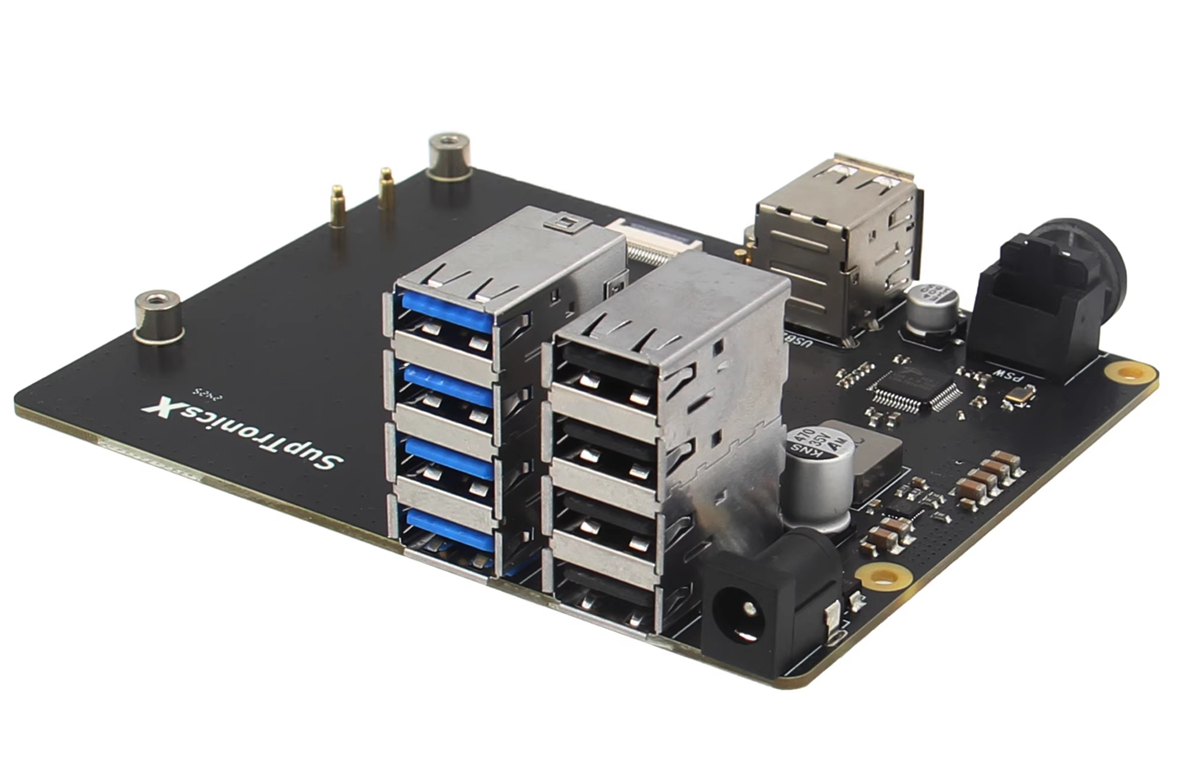

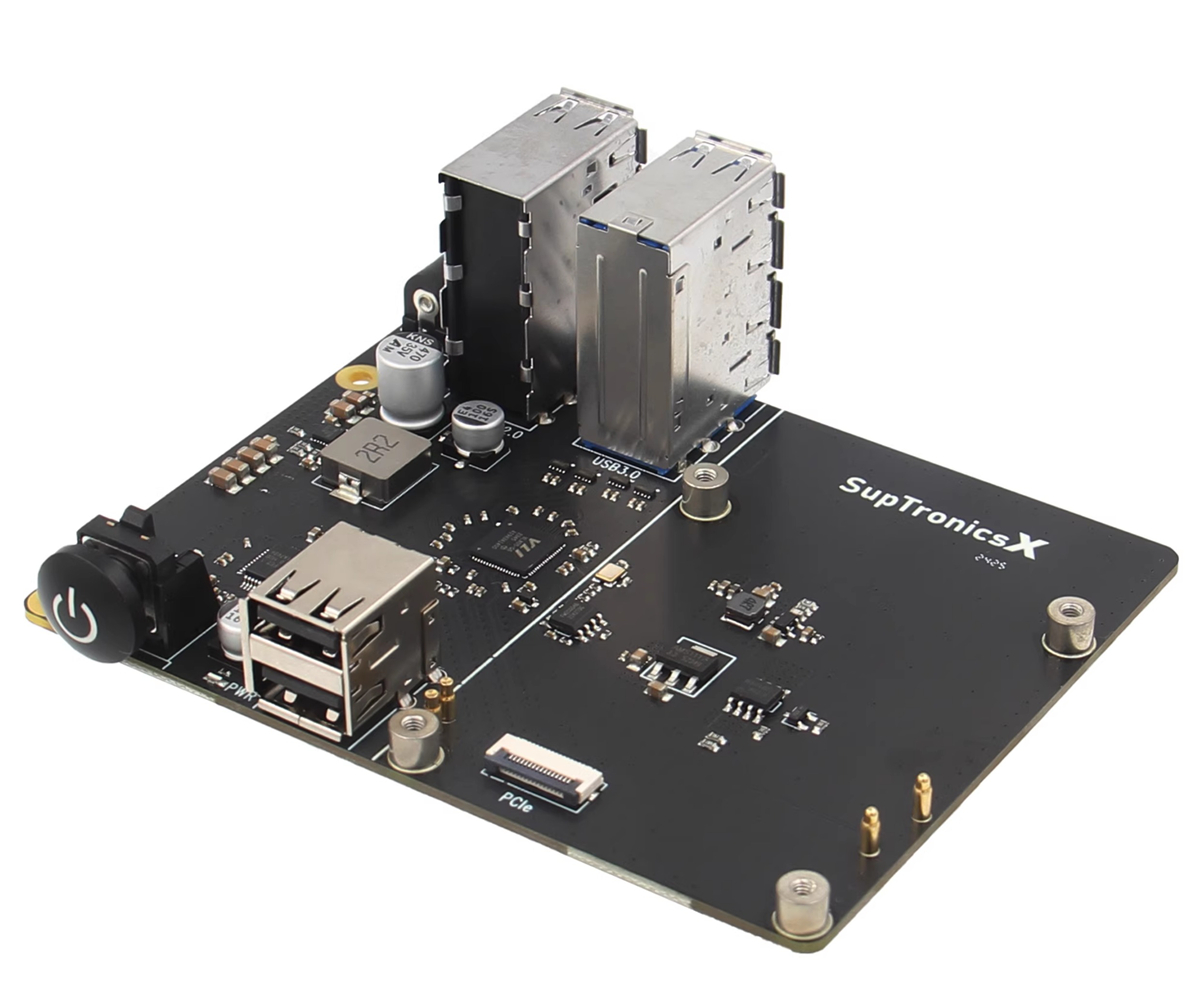

X1013 is a PCIe to 10-Port USB expansion board designed specifically for Raspberry Pi 5. It enhances the Pi's functionality by adding four USB 3.2 Gen1 ports and six USB 2.0 ports. The board uses a high-performance chip to ensure reliable and fast connections. And it is compatible with multiple operating systems including Raspberry Pi OS, Ubuntu, and OpenWRT. No additional drivers are needed—just plug and play.
X1013 connects to the bottom of the Raspberry Pi 5, without occupying the GPIO port, allowing other accessory boards to be expanded. In addition, it supports 9-18V input via a standard DC jack and an efficient DC/DC step-down converter, enabling a single power supply to efficiently power both the Raspberry Pi 5 and connected USB devices.
Power Supply Instructions:

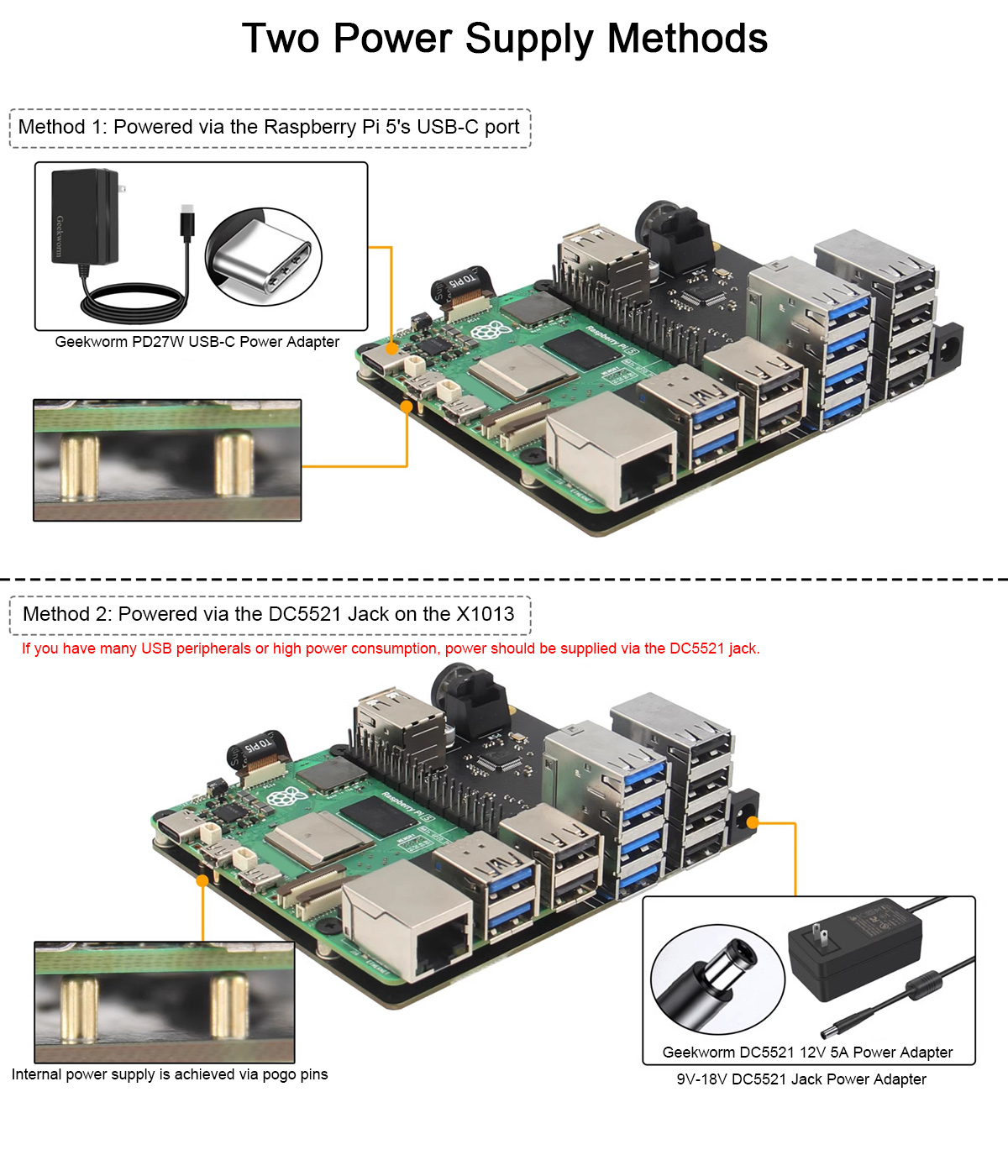

X1013 supports two power supply methods: One is via the Raspberry Pi 5's USB-C port; the other is through the DC5521 jack on the X1013.
The choice depends on the number and power consumption of your USB peripherals. If you have many USB devices or high-power peripherals, power should be supplied via the DC5521 jack. Otherwise, you can simply use your PD27W USB-C power adapter. Regardless of the power method used, the onboard power switch will function normally.
If you choose to power via the DC5521 jack, you may use a power adapter with a working voltage between 9V and 18V. The lower the voltage, the higher the current requirement. Do not use power adapters intended for LED strips. The Geekworm 12V 5A power adapter is recommended.

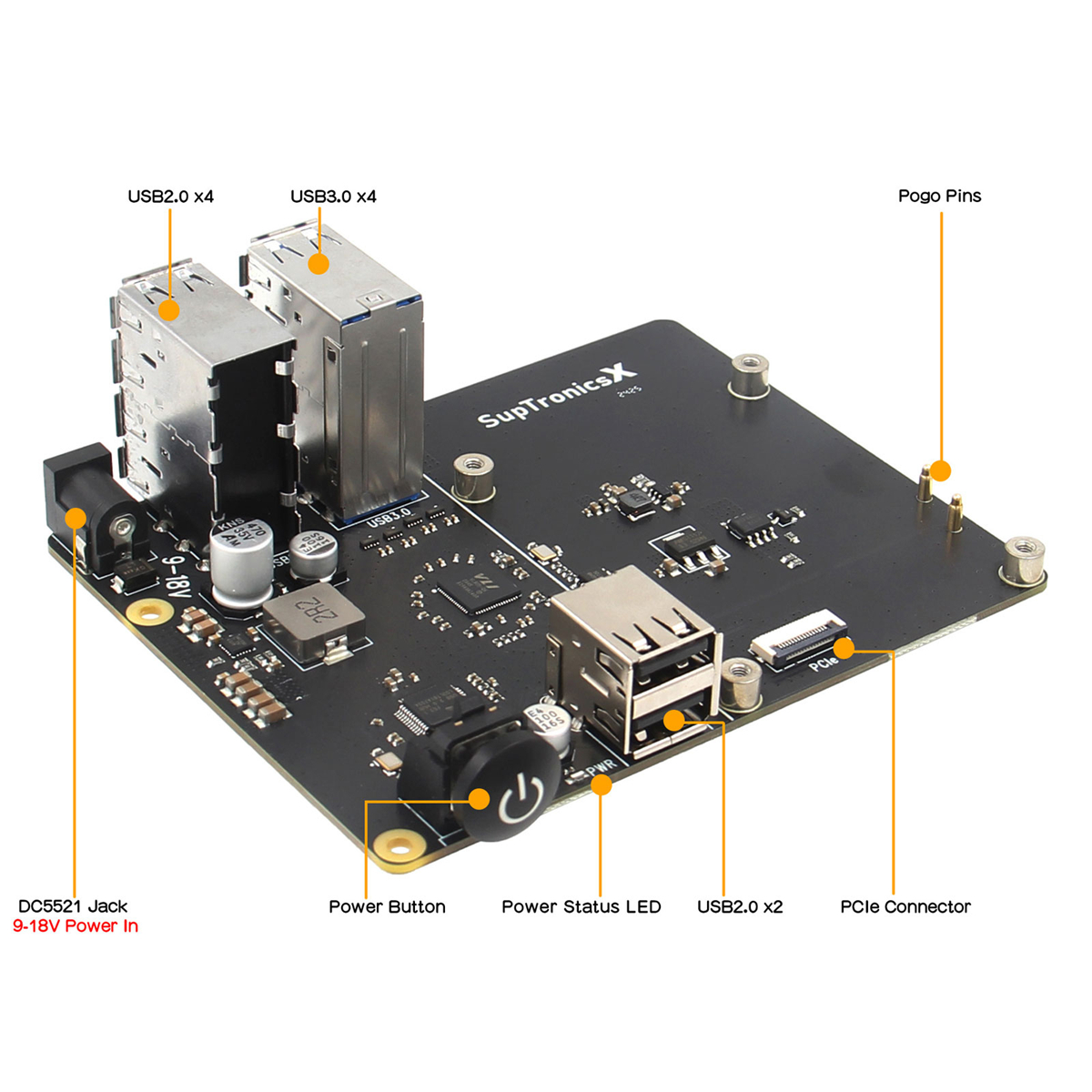

Features:
* 4 x USB 3.2 Gen1 ports: compatible and backward-compatible with USB 3.0/2.0/1.1
* 6 x USB 2.0 ports: compatible and backward-compatible with USB 1.1
* Equipped with original high-performance VL805 main control chip
* Driver-free, plug and play, and compatible with operating systems for Windows, Mac OS, Linux, and Android
* Supports wide voltage input of 9-18V via standard DC jack (5.5×2.1mm)
* Efficiently powers the Raspberry Pi 5 through pogo pins, simplifying the power supply method
* Automatically shuts down all USB devices when Pi 5 is powered off
* Onboard button performs the same function as the Pi's power button
* PCB dimensions: 107.5mm × 85mm
Packing List:
* 1 x Expansion Board
* 4 x M2.5x5mm Screws
* 2 x PCIe FFC Cables
Packaging Details:
* Weight: 0.16kg
Note:
* Raspberry Pi 5 and power adapters are not included.
User Manual:
https://wiki.geekworm.com/X1013
