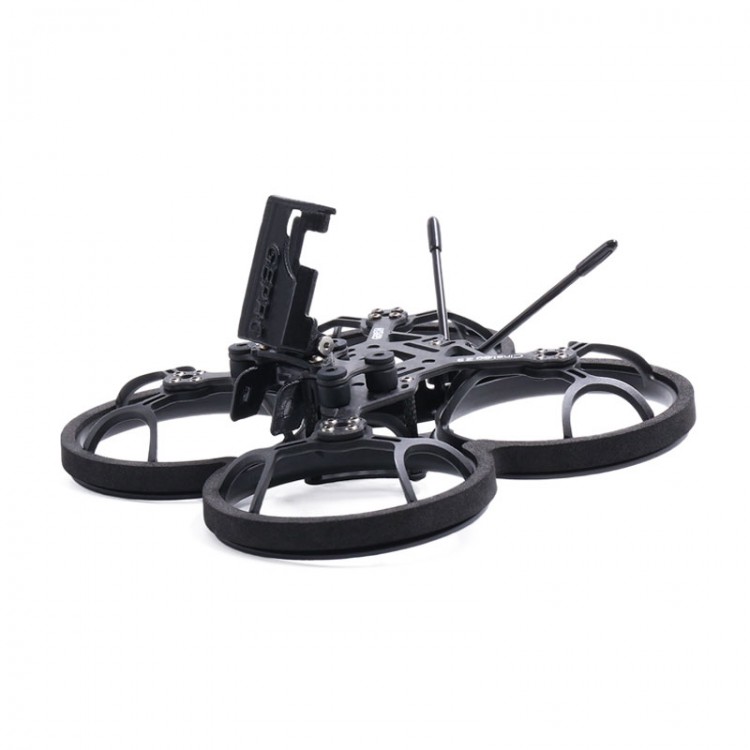

GEPRC GEP-CL25 FPV Drone Frame Racing Drone Frame 2.5" Frame Kit 109MM Wheelbase Unassembled

GEPRC GEP-CL25 FPV Drone Frame Racing Drone Frame 2.5" Frame Kit 109MM Wheelbase Unassembled

Description:
The GEP-CL25 frame is carefully designed and original design by the GEPRC team, with maximum noise reduction optimization. It can be used with Vista high-definition digital video transmission, and can also be used with analog video transmission.

Parameters:
- Brand Name: GEPRC
- Model: GEP-CL25
- Wheelbase: 109mm
- Protective frame inner diameter: 2.5 inches
- Lens size: 19~20mm
- Suitable propeller size: 2.5 inch propeller
- Motor hole position: 9mm (suitable for 1105/1204/1206 motors)
- Flight control hole distance: 26.5*26.5mm
- Top plate thickness: 2.5mm
- Floor thickness: 1.5mm
- Accessory board thickness: 2mm
- Weight: 47.8g

Package Included:
- 1 x Top plate 2.5mm
- 1 x Base plate 1.5mm
- 1 x Accessory board thickness 2mm
- 4 x (M2*3.5*25mm) reticulated aluminum columns
- 2 x (M2*3.5*8mm) reticulated aluminum columns
- 28 x (M2*6mm) YFS round head screws
- 2 x (M2*8mm) YFS round head screws
- 4 x (M2*12mm) YFS cup head screws
- 16 x (M2*2mm) nylon nuts
- 4 x (M2*18mm) YFS cup head screws
- 5 x Gimbal damping rings
- 1 x (19*19mm) lens mount
- 1 x (14*14mm) lens mount
- 1 x XM+ antenna fixing
- 1 x Antenna mount for Black sheep
- 1 x Removable base
- 2 x Non-slip mats for batteries (batteries are not included)
- 2 x EVA tripod cushions
- 4 x 2.5" protection frames
- 1 x EVA protective frame shock absorber
- 2 x Receiver antenna tubes
- 2 x (M15*150mm) ties for batteries (batteries are not included)

Note:
- Batteries are not included.
- Assembling is needed.
