GHC25x39 Oldham Coupling 6mm-12mm Slider Coupling Double-Slider Coupler for Servo Step Motor CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.87
  • Price in reward points: 119 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.63 $11.40 $11.04 $10.56 Contact US
Quantity:

GHC25x39 Oldham Coupling 6mm-12mm Slider Coupling Double-Slider Coupler for Servo Step Motor CNC

Features:

- Free sliding and low load bearing
- Powerful torque
- Electrical insulation effect
- Low inertia
- Non magnetic

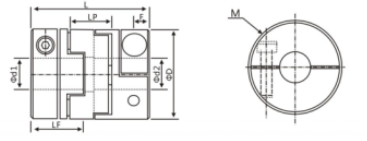

Specification:
- Model: GHC-25x39 mm
- For d1,d2 shaft diameter (mm): 5,6,6.35,8,7,9.525,10,11,12
- D: 25mm
- L: 39MM
- LF: 17.2mm
- LP: 16.65mm
- F: 4.2mm
- M: M3
- Torque: 1.5N.M

Tech parameter:
- Rated torque: 2.2N.M
- Off-center torlerance: 1.6 mm
- Deflection torlerance: 3 degree
- Axial deviation torlerance: -+0.2mm
- Maximum speed: 6000rpm
- Static torque: 130N.M/rad
- Inertia torque: 4.5x10-6
- Sleeve material: Aluminum alloy
- Rubber block material: PPA66
- Surface process: Anodic oxidation treatment
- Weight: 35g

Application:
- For AC motor, DC motor and servo motor, generator speed meter and other generator
- For hydraulic distribution system,optical system
- For air conditioning equipment,environment device, encoder, water pump
- For paper, disk mode, adhesive tape and delivery equipment, etc.
- For vertical and horizontal moving load table

Packing Content:
- 1 x Oldham Coupling
