Gottomix SA-31 Standard Version 31-Band Music Spectrum Analyzer Display for Recording Studio

Gottomix SA-31 Standard Version 31-Band Music Spectrum Analyzer Display for Recording Studio

Description:
The 31-band spectrum analyzer provides the most accurate mixing reference for your recording studio. You can adjust the EQ of the audio more accurately according to the display of the spectrum analyzer, so as to make your music frequency more balanced.

SA-31 can also be used with a monitor controller Gottomix MC205, making SA-31 not only a spectrum analyzer, but also an important part of the monitoring equipment in the recording studio.

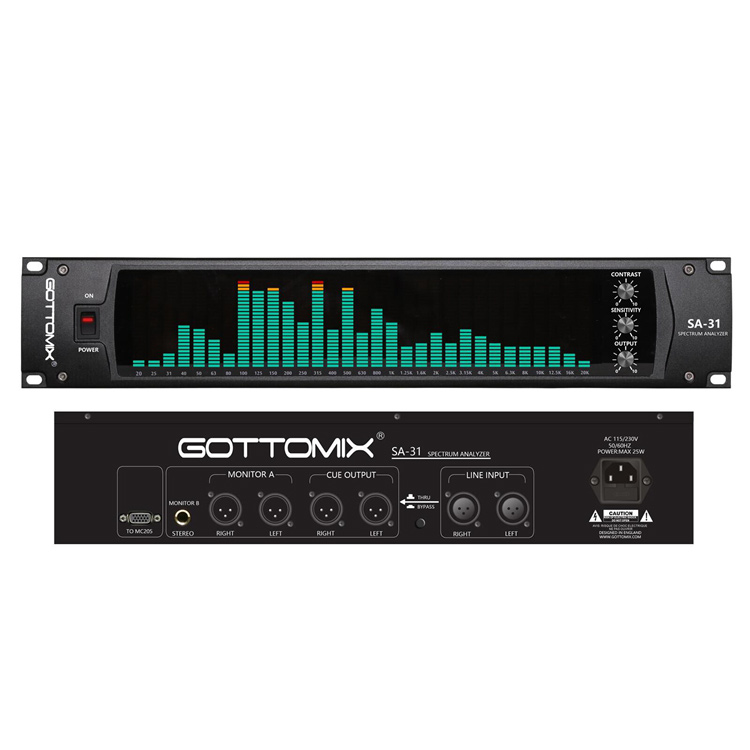

SA31 has one set of XLR balanced input ports and two sets of XLR balanced output ports, which ensures that SA-31 can connect to a pair of monitoring speakers and a headphone distributor.

The SA-31 also comes with a 15-pin port for connecting to the MC205, which can be used as a desktop controller. Use the knob on the Gottomix MC205 to control the volume of the speaker and headphone distributor, and the microphone on the MC 205 can also be used for intercom.

The SA-31 also features a 1/4-inch TRS balanced stereo output port, which can be used to connect to your second set of monitoring speakers.

Features:
- Rack-mount equipment with a height of 2U
- 31-band spectrum analyzer
- Sensitivity adjustment knob
- Brightness control
- Output volume knob
- One set of analog input ports and three sets of analog output ports
- Can be used in conjunction with Gottomix MC205

Specifications:
- Product name: Spectrum Analyzer
- Frequency response: 20Hz to 20KHz
- Analog input: One pair of XLR female connectors
- Analog output: Two pairs of XLR male connectors
- Analog output: One 6.5 stereo output
- Other connectors: 15-pin (for MC205)
- Maximum input level: +20dBu (XLR)
- Voltage: 120V or 230V/50Hz, 25W

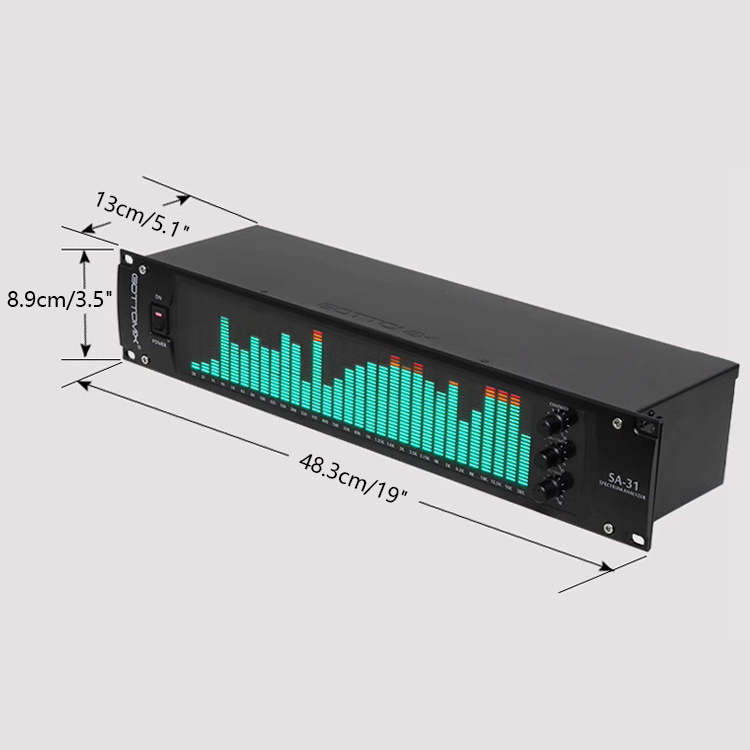

- Dimensions: 48.3 x 13 x 8.9cm/19 x 5.1 x 3.5" (WxDxH)
- N.W.: 2.75kg/6lb
- G.W.: 3.5kg/7.7lb

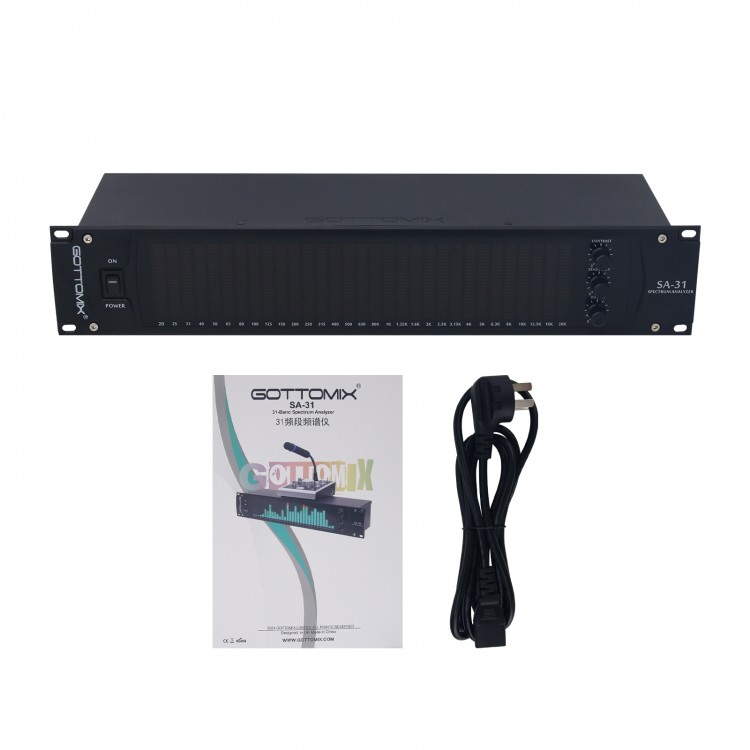

Package Included:
- 1 x SA-31 main unit
- 1 x Power cable
- 1 x User manual (Chinese & English)
