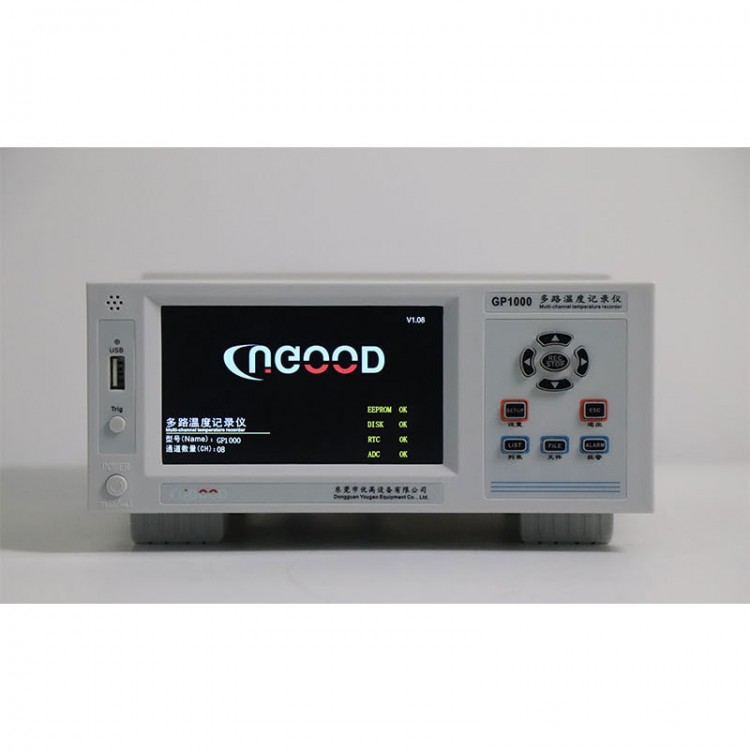

GP1016 16-Channel Temperature Data Logger Multi-Channel USB Temperature Recorder GP1000 Series

GP1016 16-Channel Temperature Data Logger Multi-Channel USB Temperature Recorder GP1000 Series

Features:
Multi-Channel Temperature Data Logger
* It uses a 32-bit high-speed CPU for data processing
* Simple and clear, intuitive and easy to understand
* 5-inch TFT true color LCD
* Industrial touchscreen
* 854×480 pixels

The Ideal Testing Expert for Professional Engineers
* More functions, higher cost performance
* LCD touchscreen
* 32-bit high-speed CPU
* Audio-visual alarm function

5-inch IPS Industrial-Grade Touch LCD Screen
* The resolution of the high-definition 5-inch IPS industrial-grade LCD touchscreen is 854×480.

Supports Multiple Sensor Inputs
* It supports K, J, E, T, N, S, R, and B type thermocouple inputs. It also supports multiple display modes.

Multi-Interface Real-Time Value Display
* It supports real-time value display on 4, 8, 16, or 32 interfaces (the number of interfaces is for reference only; the actual number depends on the model you choose).

Audio-Visual Alarm Function
* Users can independently set high and low alarm values for each channel. It also features audio-visual alarm capability.

Application Scenarios
* It meets most people's needs for instruments and meters.
* It can be used for lighting testing, appliance testing, workshop testing, and environmental testing.

Specifications:
* Series: GP1000
* Display method: 5-inch TFT true color industrial touchscreen, 854 × 480 pixels
* Display format: Real-time list values, current alarm list, and file record list
* Record query: Analyzed and queried via PC software
* Number of channels: 8 channels per module, maximum support for 64 channels
* Thermocouple types supported: K, J, E, T, N, S, R, and B
* Basic accuracy: 0.2°C + 2 digits (excluding thermocouple error)
* Measurement range: -200°C to 1820°C (according to thermocouple scale range)
* Cold junction compensation accuracy: 0.5°C
* Resolution: 0.1°C
* Calibration: Independent error correction per channel, Y = kx + b (x = measured value)
* Number of files: 64 files (circular recording), file format CSV (can be opened directly with Excel)
* File capacity: One file can record 130,000 data points (channel count irrelevant)
* USB drive interface: Export recorded files; USB drive mode; direct file and software viewing
* Recording duration: Continuous recording at 1-second interval for 97 days (total time = interval × 97 days)
* Sampling speed: Per channel fast 0.1s, slow 1s
* Channel isolation: AC/DC voltage up to 350V; strong anti-interference capability
* Control output: None
* Alarm sound: One buzzer sounds for any alarm; mute option available
* Recording interval: Adjustable from 1 to 9999 seconds
* Communication interface: Standard USB; optional RS485, RS232
* Power supply: AC 85–265V ±10%, 50Hz/60Hz, < 10W
* Thermocouple included: One standard 2-meter K-type thermocouple per channel
* Dimensions: Width 220mm × Depth 293mm × Height 106mm
* Weight: About 3kg (varies by configuration)
* Environmental Conditions: 5~40°C, 20%~80% RH (non-condensing)

Packing List:
* 1 x Main unit
* 1 x Power cable
* 1 x User manual
* 1 x Certificate of conformity/warranty card
* 1 x Set of Type K thermocouple wires (one per channel)

Packaging Details:
* Weight: 3.5kg
