GP2Y0A02YK0F Infrared Distance Senor IR Proximity Sensor Module Obstacle Avoidance Detector 20-150cm

Availability: In stock, usually dispatched in 1 business day

  • Price:$8.41
  • Price in reward points: 84 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.24 $8.07 $7.82 $7.48 Contact US
Quantity:

GP2Y0A02YK0F Infrared Distance Senor IR Proximity Sensor Module Obstacle Avoidance Detector 20-150cm

Description:

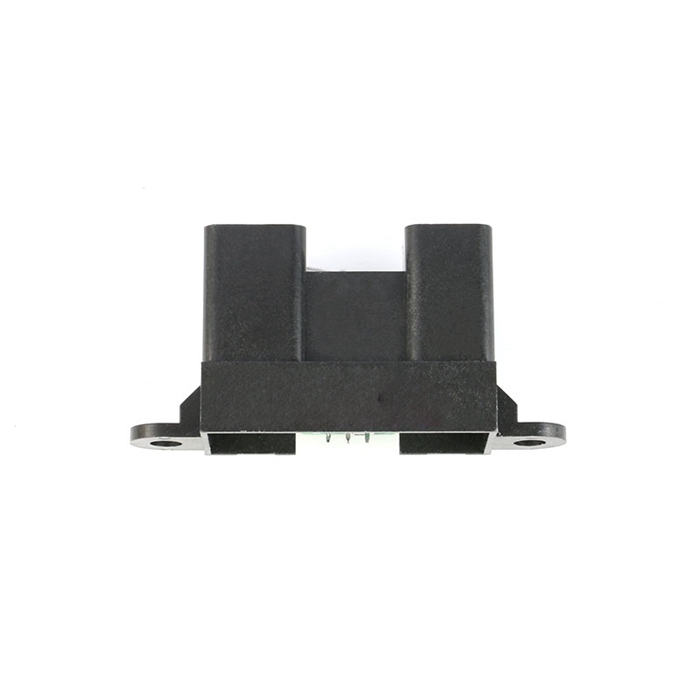

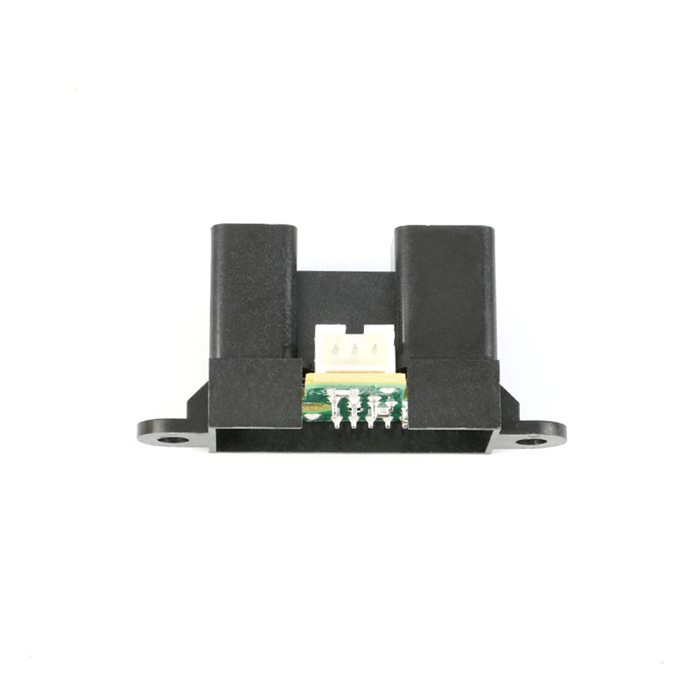

GP2Y0A02YK0F is a distance measurement sensor module.

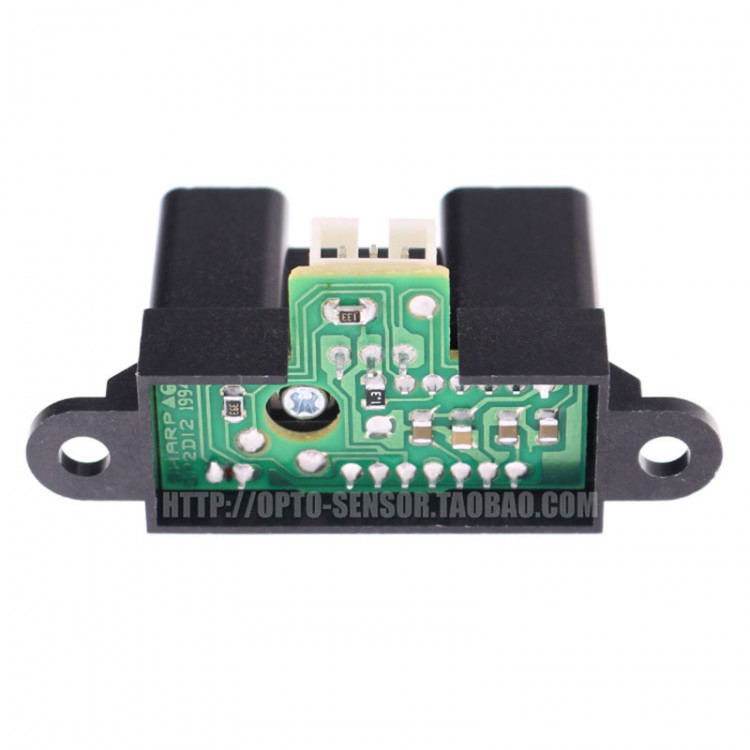

It consists of three parts: PSD (position sensitive detector) and IRED (infrared emitting diode) and signal processing circuit. Due to the triangulation method, the material of the measured object, the ambient temperature and the measurement time do not affect the measurement accuracy of the sensor. The sensor output voltage value corresponds to the detected distance. By measuring the voltage value, the distance of the detected object can be obtained, so this sensor can be used for distance measurement, obstacle avoidance and the like.

Features:

- Analog output, requires microcontroller control with AD converter

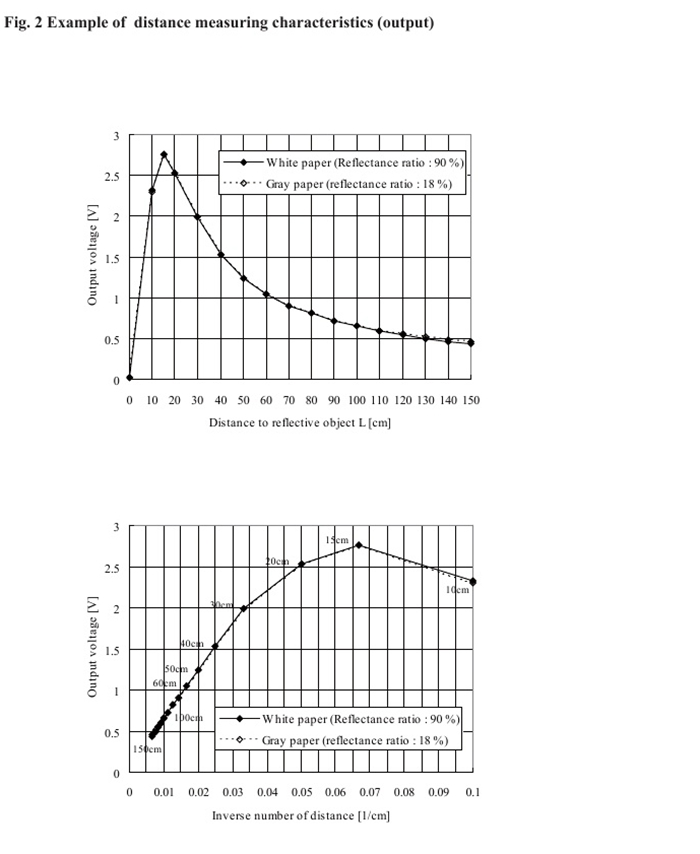

- Output is inversely proportional to distance
- The higher the AD number, the more accurate the distance measurement effect, and the 10-bit AD can reach 0.1cm.
- SD card insertion detection and write protection detection ports are all pulled out for convenient function expansion
- Based on the principle of triangulation

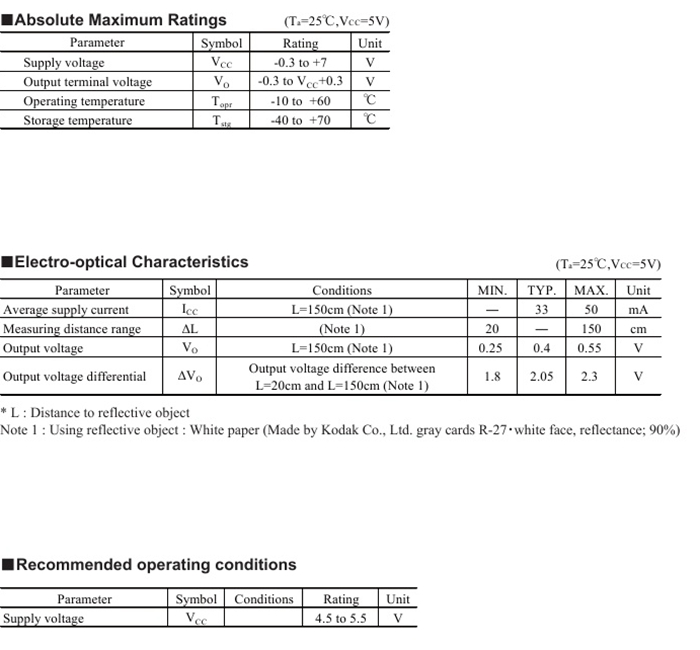

Technical Parameters:
- Distance measurement range: 20 to 150 cm
- Signal output type: voltage analog signal
- Packing size: 29.5 × 13 × 21.6 mm
- Power consumption: nominal 33 mA
- Supply voltage: 4.5 to 5.5 V

Applications:
- Touch-less Switch: Sanitary equipment, control of illumination, etc.
- Sensor for Energy Saving: ATM, copier, vending machine, laptop computer, and LCD monitor.
- Amusement Equipment: Robot, arcade game machine.

Package Included:
- 1 x Infrared Distance Sensor
