GPS Development Board Module VK1513 Locating Learning Board USB Serial Port w/ CP2102

Availability: Out Of Stock

  • Price:$22.30
  • Price in reward points: 223 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.85 $21.41 $20.74 $19.85 Contact US
Quantity:

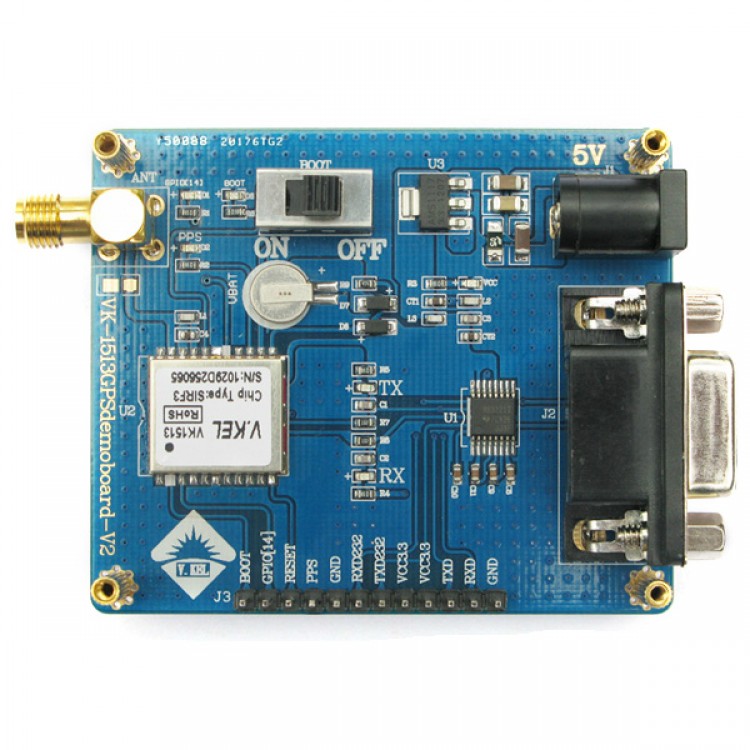

GPS Development Board Module VK1513 Locating Learning Board USB Serial Port w/ CP2102

Description:
- This is brand new VKEL –GPS SIRF3-V2 Series development board,standard 2.54mm pitch
- 4pcs locating hole were added to facilate installation of VKEL–GPS SIRF3-V2
- Adopts high standard 232 converter chip and  MAX3221IPWR
 - Adopts high sensitivity SiRFIII chip.Built in high gain LNA,dual LNA,dual LDO
- Optional board rate:4800,9600,19200,38400,5700,115200
- RMC,GSV,GSA,GGA,VTG,GLL option

Features:
- High precision GPS Module
- with backup battery,hot start 1 second quick locating
- with TTL port and USB to TTL coverter cable
- Support 3.3V power supply input
- with Power supply,TX,RX data,BOOT and PPS indiactor
- Size: 66mm×55mm×1.6mm

VK1513 specfication:
- Channel:SIRF Star Ⅲ 20  Channels
- Protocal :NME* 0183 protocal:(*.3.01): GGA、GSA、GSV、RMC、VTG
- Buadrate:4800-57600
- Frequency:L1, 1575.42MHz
-Data:support  NME* 0183 *2.2 protocal
- Catching sensitivity:-157dBm
- Tracking sensitivity:-159dBm
