GPSDO Discipline Oscillator GNSS GPS Disciplined Clock OCXO GPS + BD Dual Mode -160dBc Phase Noise

Availability: In stock, usually dispatched in 1 business day

  • Price:$313.49
  • Price in reward points: 3135 Reward Points: 31
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $307.22 $300.95 $291.55 $279.01 Contact US
Quantity:

GPSDO Discipline Oscillator GNSS GPS Disciplined Clock OCXO GPS + BD Dual Mode -160dBc Phase Noise

Features:

-High stability & high accuracy GNSS disciplined oscillator (OCXO)
-ADEV: < 2e-12@1s
-When tracked GPS/BD for a long time, 1s-1000s, ADEV <5e-12 (typical); >1000s, ADEV <2e-12
-Frequency accuracy: < 1e-12Hz when tracked GPS/BD (24 hour averaging)
-Sine-wave and square-wave 10MHz clock output
-1PPS timepulse output synchronized to GNSS
-Configurable NMEA messages via USB port
-GPS + BD (Beidou) navigation receiver, max. 32 receiver channels, ensuring more satellites to be received at the same time

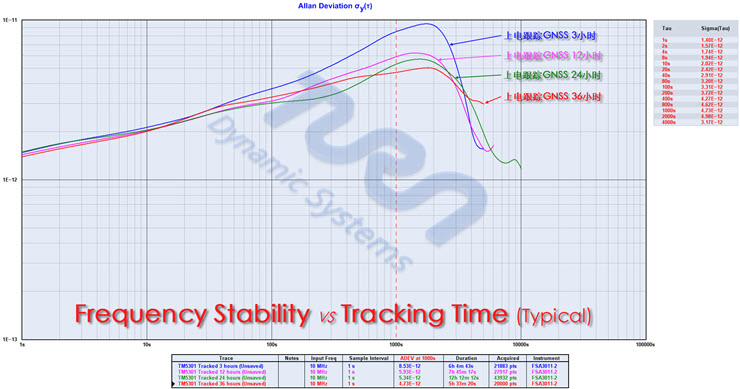

Typical Frequency Stability vs Power-up Time:

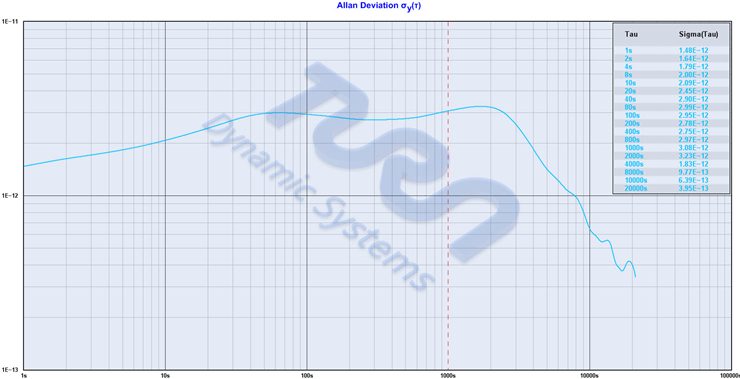

Frequency Stability Plot of One Day:

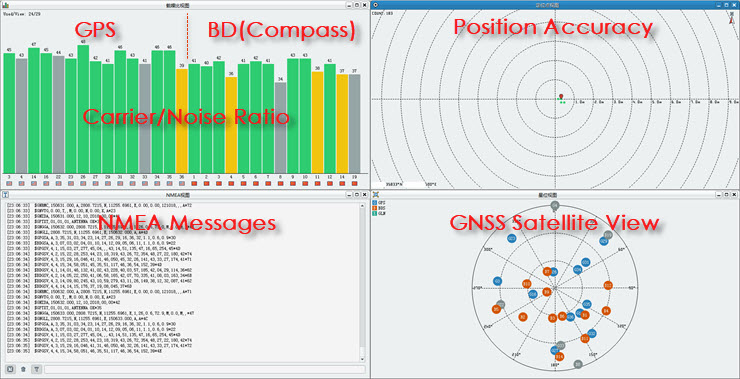

GPS/Beidou dual mode GNSS receiver, more satellites can be received at the same time. Configurable GNSS receive mode via USB port: GPS, BD (Beidou), GPS + BD, and the NMEA messages is also configurable.

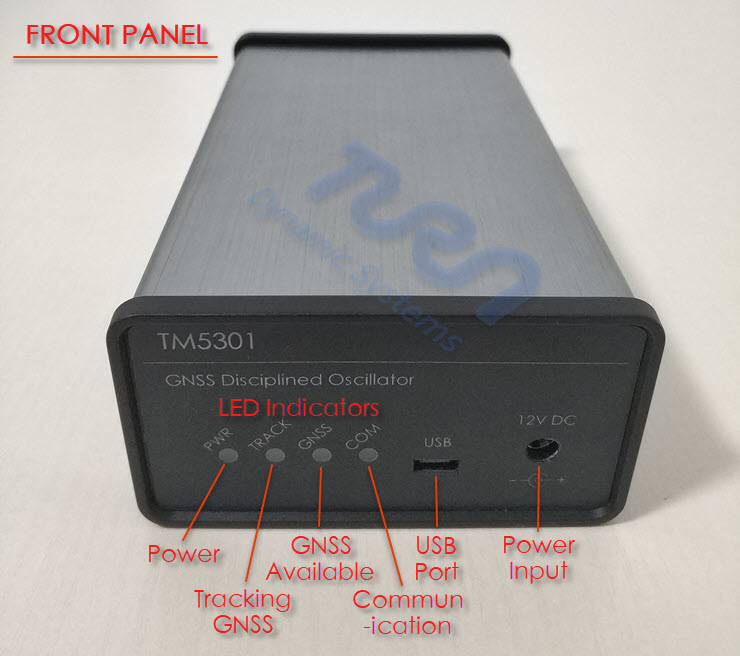

-PWR: power indicator, will be on when powering
-TRACK: GNSS tracking indicator. When flashing, it means tracking GNSS to correct OCXO frequency offset
-GNSS: satellite navigation receiver indicator, when it is on, means the receiver is working normally
-COM: communication indicator, flashing when there is data transmission
-USB: Micro USB port
-12V DC: 12V/1A power supply input

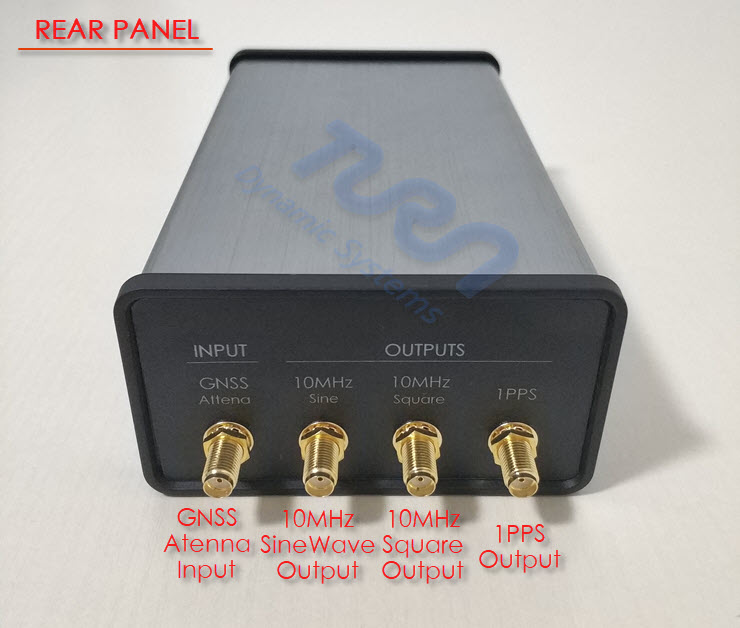

GNSS antenna port + 10MHz sine wave output + 10MHz square wave output + 1PPS timepulse output

Package List:
-1 x GNSS Disciplined Oscillator
-1 x Power Adapter
-1 x USB Cable
-1 x GPS/BD Dual Mode Antenna 5m
